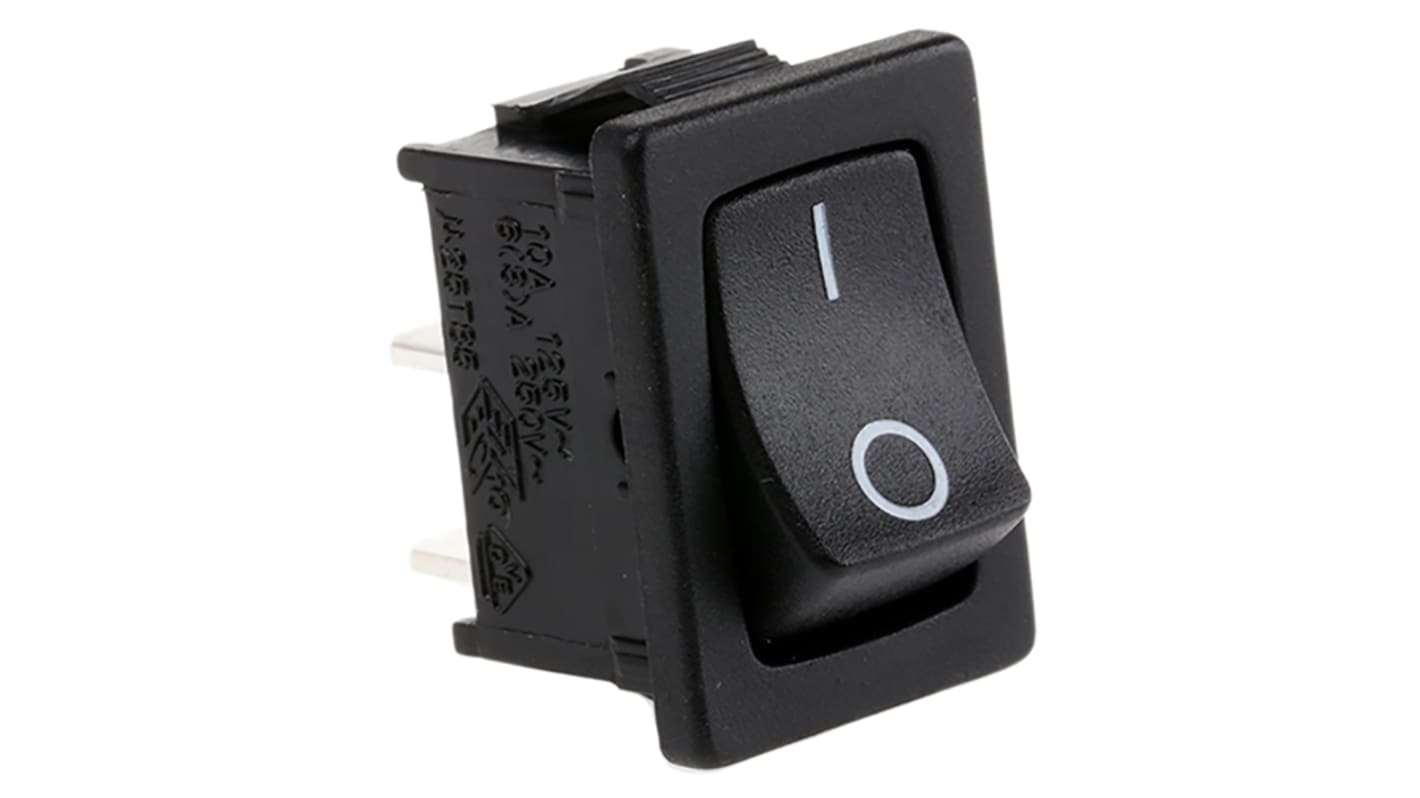

TE Connectivity SPST, On-None-Off Rocker Switch Panel Mount
- RS Stock No.:
- 164-0941
- Mfr. Part No.:
- PRASA1-16F-BB0BW
- Brand:
- TE Connectivity
View all Rocker Switches
1000 In stock - FREE next working day delivery available
Price Each (In a Tray of 100)
£1.466
(exc. VAT)
£1.759
(inc. VAT)
| Units | Per unit | Per Tray* |
| 100 + | £1.466 | £146.60 |
| *price indicative | ||
- RS Stock No.:
- 164-0941
- Mfr. Part No.:
- PRASA1-16F-BB0BW
- Brand:
- TE Connectivity
- COO (Country of Origin):
- CN
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
PRAS Series
PRAS Series power rockers from Tyco Electronics
Snap-in mounting
13.0 x 19.2mm Panel Cut-out
13.0 x 19.2mm Panel Cut-out
Tyco Series
Easy snap in installation
Black housing
Illuminated rocker & various legend options
Black housing
Illuminated rocker & various legend options
Specifications
| Attribute | Value |
| Contact Configuration | SPST |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 19.2mm |
| Panel Cut Out Height | 13mm |
| Contact Current Rating | 16 A |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Legend Text | On (symbol)' Off (symbol) |
| DC Voltage Rating | 12 V, 28V |
| Panel Cut Out Size | 13 x 19.2mm |
| AC Voltage Rating | 125 V, 250V |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | -20 → +85°C |
| Contact Resistance | 100mΩ |
| Minimum Operating Temperature | -20°C |
| Legend Text Colour | White |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver Tin Oxide |
| Case Material | Nylon 66 |
