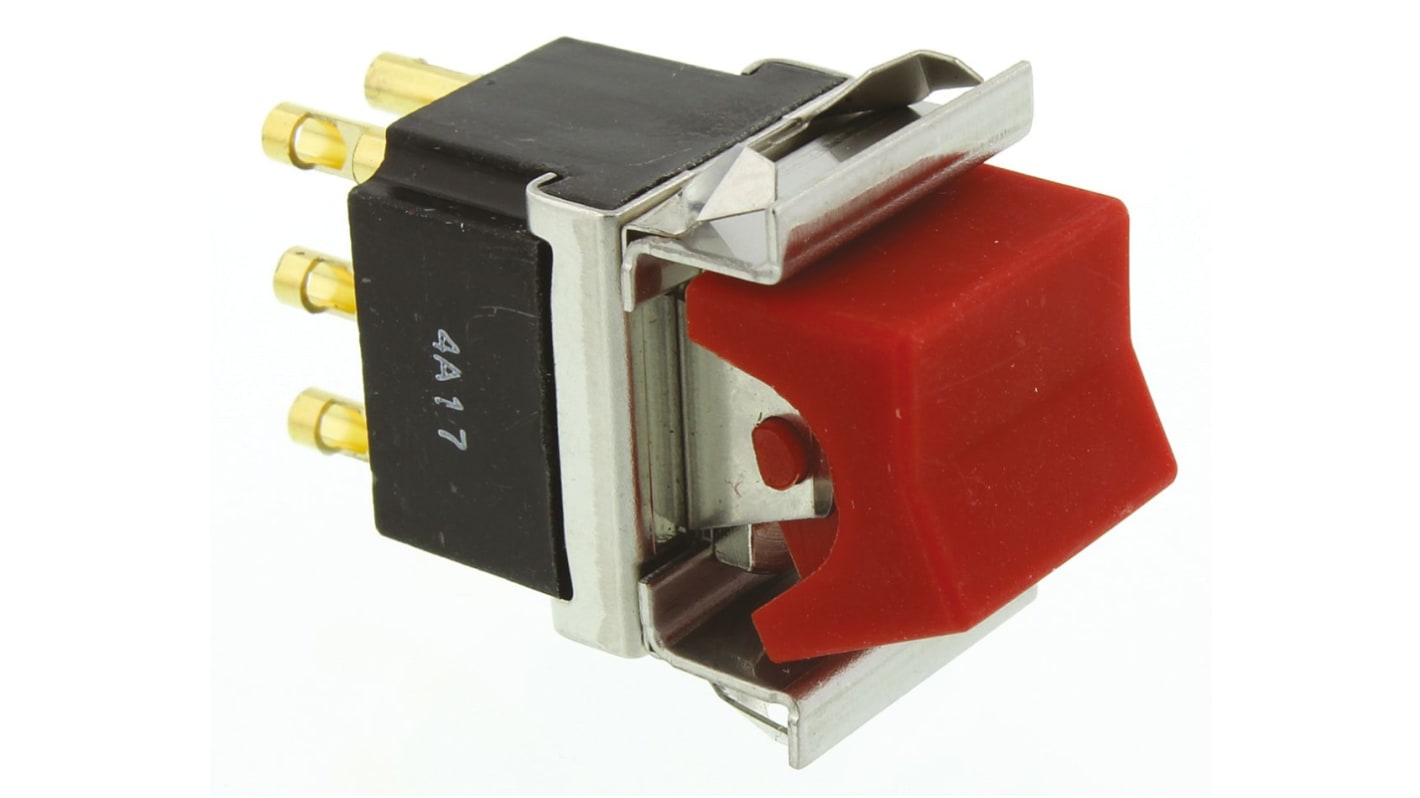

TE Connectivity DPDT, Latching Rocker Switch Panel Mount
- RS Stock No.:
- 317-314
- Mfr. Part No.:
- FLN29RED04
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£30.93
(exc. VAT)
£37.12
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 156 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £30.93 |
*price indicative
- RS Stock No.:
- 317-314
- Mfr. Part No.:
- FLN29RED04
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Contact Configuration | DPDT | |
| Switch Operation | Latching | |
| Panel Cut Out Width | 13mm | |
| Panel Cut Out Height | 15.9mm | |
| Contact Current Rating | 6 A | |
| Illuminated | No | |
| Actuator Colour | Red | |
| Mounting Type | Panel Mount | |
| Terminal Type | Wire Lead | |
| AC Voltage Rating | 250V | |
| Panel Cut Out Size | 15.9 x 13mm | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -20°C | |
| Mechanical Life | 100000Operations | |
| Operating Temperature Range | -20 → +70°C | |
| Contact Resistance | 10mΩ | |
| Contact Material | Silver | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Contact Configuration DPDT | ||
Switch Operation Latching | ||
Panel Cut Out Width 13mm | ||
Panel Cut Out Height 15.9mm | ||
Contact Current Rating 6 A | ||
Illuminated No | ||
Actuator Colour Red | ||
Mounting Type Panel Mount | ||
Terminal Type Wire Lead | ||
AC Voltage Rating 250V | ||
Panel Cut Out Size 15.9 x 13mm | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -20°C | ||
Mechanical Life 100000Operations | ||
Operating Temperature Range -20 → +70°C | ||
Contact Resistance 10mΩ | ||
Contact Material Silver | ||
- COO (Country of Origin):
- CN
Miniature Lever/Rocker Switches
Switches with body and switch mechanism identical to the miniature toggle switches with silver contacts, but fitted with alternative style of actuators in a choice of colours
Each switch is supplied with an optional black bezel that may be fitted by snapping it over the flanges on two sides of the switch, prior to fitting to a panel by means of clipping the frame into a prepared cut-out (hole cutter see stock no. 545-323 is suitable)
These switches have the advantage of toggle switch design, compact dimensions, and are useful where toggle levers are undesirable
The use of alternative styles and colours allows the possibility of coding switch functions
Contact Rating-A 6A
Contact Rating-V 28Vdc/250 Vac
Each switch is supplied with an optional black bezel that may be fitted by snapping it over the flanges on two sides of the switch, prior to fitting to a panel by means of clipping the frame into a prepared cut-out (hole cutter see stock no. 545-323 is suitable)
These switches have the advantage of toggle switch design, compact dimensions, and are useful where toggle levers are undesirable
The use of alternative styles and colours allows the possibility of coding switch functions
Contact Rating-A 6A
Contact Rating-V 28Vdc/250 Vac
Approvals
UL; CSA
