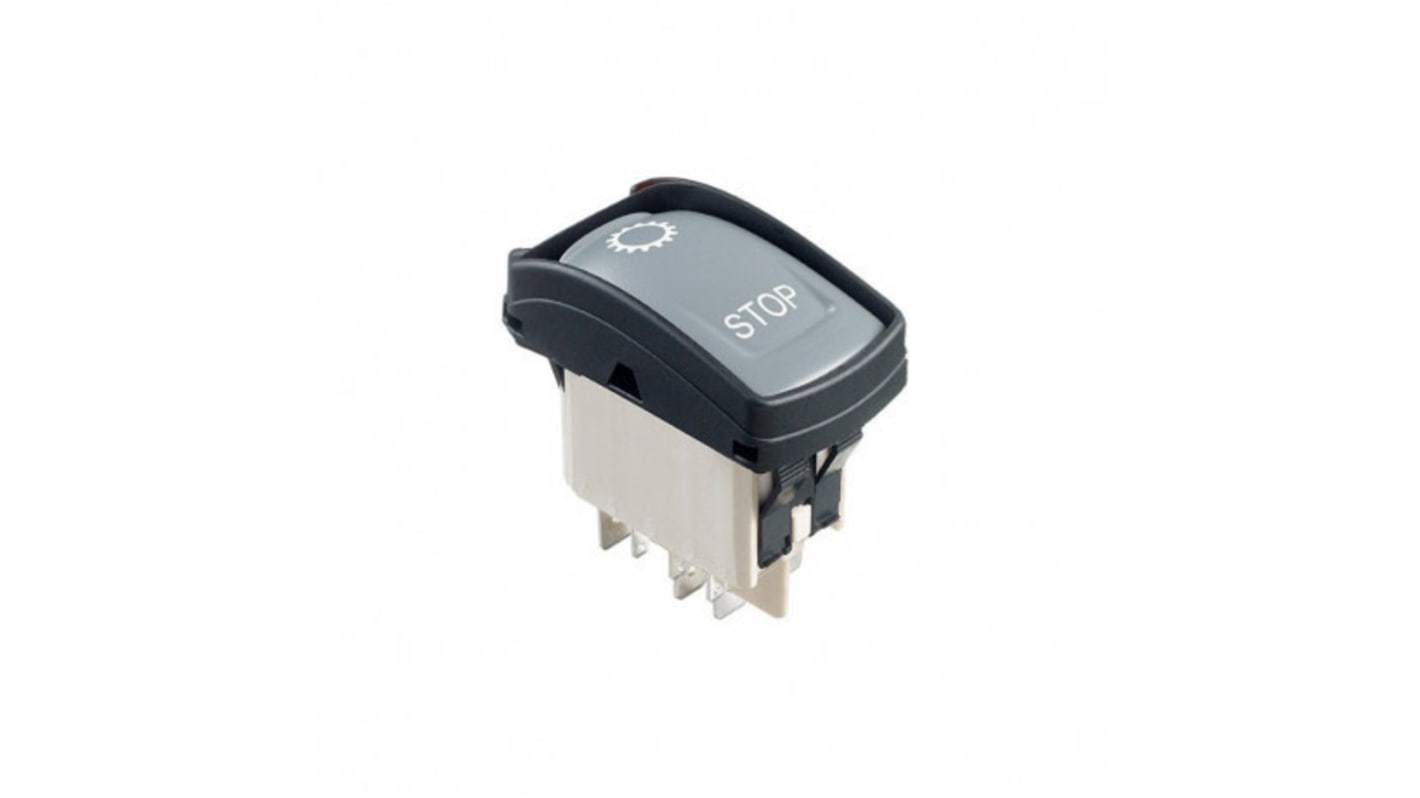

APEM Illuminated DPDT, Latching Mom-Off Rocker Switch Panel
- RS Stock No.:
- 193-1912
- Mfr. Part No.:
- KH147AAZXXG12N
- Brand:
- APEM
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 193-1912
- Mfr. Part No.:
- KH147AAZXXG12N
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Contact Configuration | DPDT | |
| Product Type | Rocker Switch | |
| Switch Operation | Latching | |
| Legend | Ventilator Fan (Symbol) | |
| Housing Material | PA66 | |
| Panel Cutout Size | 21.08 x 36.8 mm | |
| Switch Contact Current | 5A | |
| Illuminated | Yes | |
| Actuator Colour | Black | |
| Series | KH | |
| Terminal Type | Quick Connect, Solder | |
| Mount Type | Panel | |
| IP Rating | IP69K | |
| Contact DC Voltage | 24V dc | |
| Minimum Operating Temperature | -40°C | |
| Actuator Style | Rectangular | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | Mom-Off | |
| Standards/Approvals | IEC | |
| Mechanical Life | 150000Cycles | |
| Legend Text Colour | White | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Contact Configuration DPDT | ||
Product Type Rocker Switch | ||
Switch Operation Latching | ||
Legend Ventilator Fan (Symbol) | ||
Housing Material PA66 | ||
Panel Cutout Size 21.08 x 36.8 mm | ||
Switch Contact Current 5A | ||
Illuminated Yes | ||
Actuator Colour Black | ||
Series KH | ||
Terminal Type Quick Connect, Solder | ||
Mount Type Panel | ||
IP Rating IP69K | ||
Contact DC Voltage 24V dc | ||
Minimum Operating Temperature -40°C | ||
Actuator Style Rectangular | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration Mom-Off | ||
Standards/Approvals IEC | ||
Mechanical Life 150000Cycles | ||
Legend Text Colour White | ||
- COO (Country of Origin):
- FR
Designed for harsh environments, KH series rocker switches are protected against accidental actuation with a protection guard. Featuring front panel sealing as standard, the KH series is the most robust product of the K range. Due to its panel seal, this series is perfectly adapted to the harshest environments (high pressure cleaners, dust, salt spray…). The KH series is available illuminated and non-illuminated, with numerous symbols and rocker colours, to meet customer requirements at best.
Protected against accidental actuation
Wide choice of colours
Laser etched or pad printed symbols
Illuminated or non-illuminated
