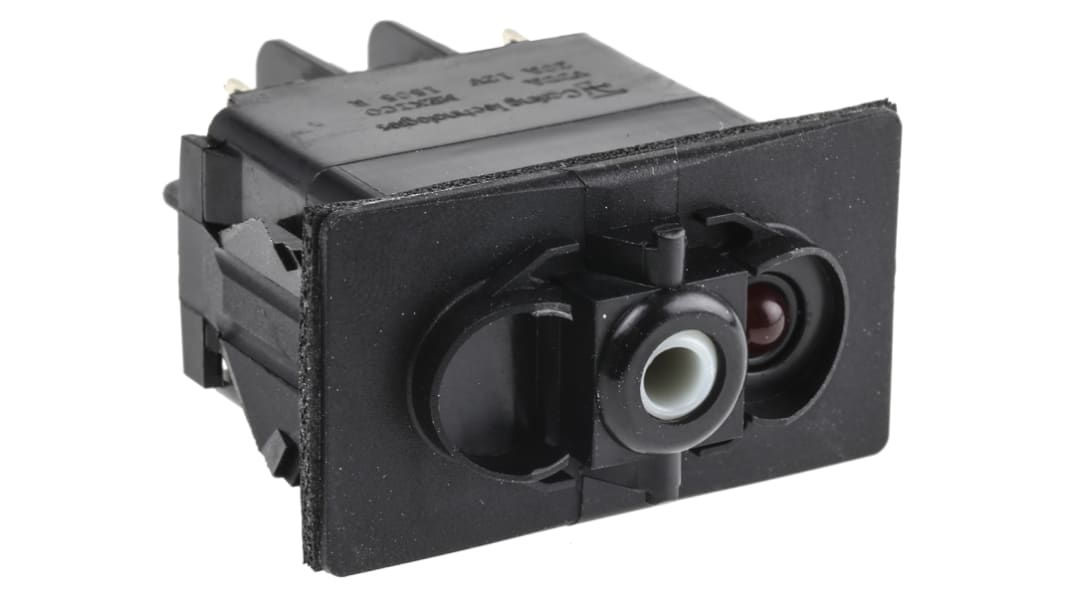

Carlingswitch Illuminated DPDT, Latching Rocker Switch Panel Mount

View all Rocker Switches

Subtotal (1 unit)*

£7.35

(exc. VAT)

£8.82

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
1 +£7.35

*price indicative

RS Stock No.:
841-839
Mfr. Part No.:
RCV-37111475
Brand:
Carlingswitch
Find similar products by selecting one or more attributes.
Select all

Brand

Carlingswitch

Contact Configuration

DPDT

Switch Operation

Latching

Panel Cut Out Width

36.83mm

Panel Cut Out Height

21.08mm

Contact Current Rating

20 A

Illuminated

Yes

Mounting Type

Panel Mount

IP Rating

IP68

Terminal Type

Quick Connect

Panel Cut Out Size

21.08 x 36.83mm

DC Voltage Rating

12V

Case Material

PET

Contact Material

Silver

Mechanical Life

150000Operations

Operating Temperature Range

-40 → +70°C

Contact Resistance

10mΩ

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
MX

Coloured Rocker Switches, Contura Series


IP68 rating if used without panel assembly system
These switches are terminated with 6.35mm fast-on terminals and are supplied with a panel-sealing gasket
Illuminated versions are available with a choice of 250V neon or red or green LEDs with integral resistors for 12V operation
Also available is a bezeled panel assembly system which permits sub-assemblies to be snapped into place (system does not have IP68 rating)
Contact resistance: 10mΩ
Contact material: Silver
Panel cut-out: 21.08 x 36.83

Note

Switch supplied without actuator, see stk. no 665-528 etc typically
The black/green lens actuator 665-556 is not suitable for use with neon or red LED illuminated switches

Approvals

UL; CSA; VDE; BEAB; DEMKO; SEMKO; NEMKO; FIMKO
