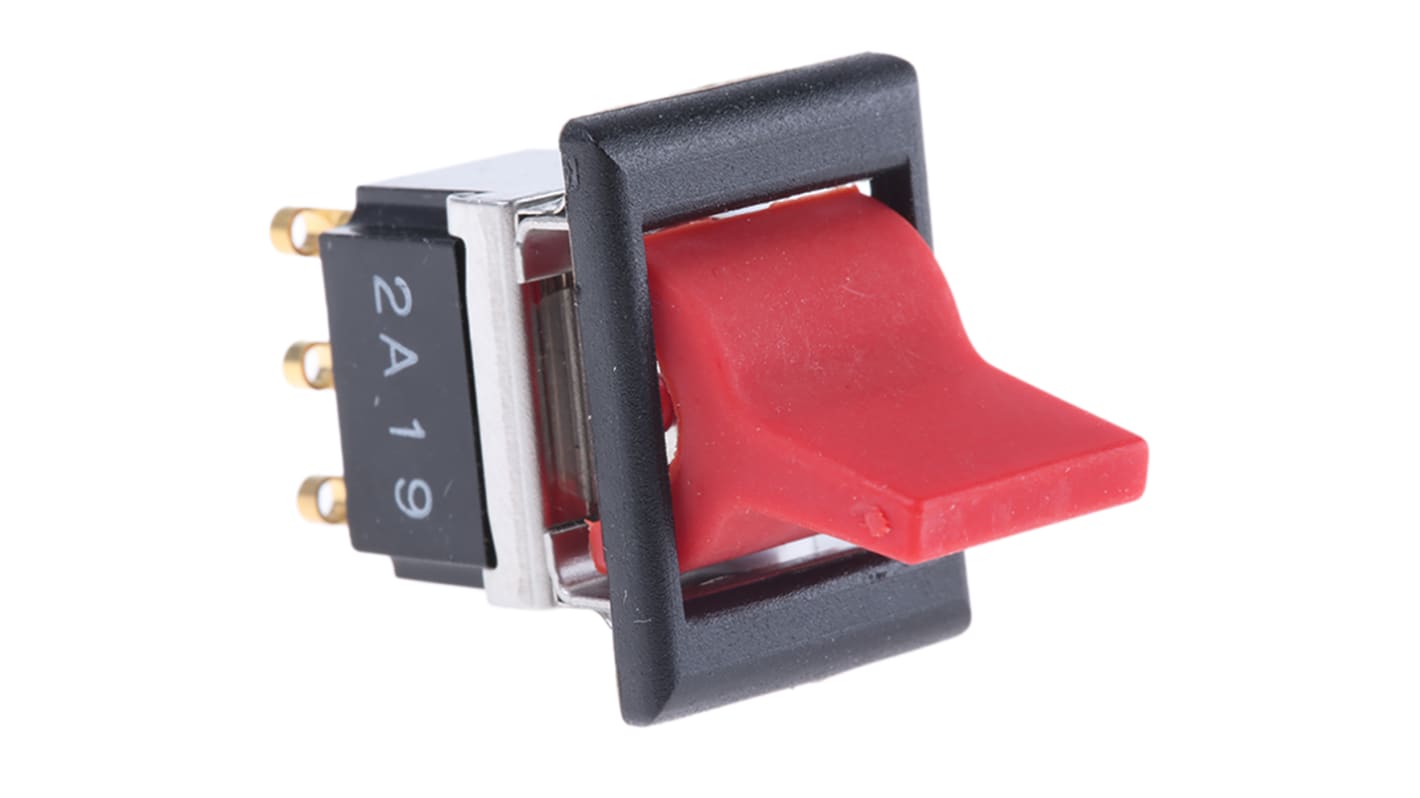

TE Connectivity DPDT, Latching On-None-On Rocker Switch Panel
- RS Stock No.:
- 317-257
- Mfr. Part No.:
- FLN19-RED04
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£35.90
(exc. VAT)
£43.08
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 15 May 2026
- Plus 6 unit(s) shipping from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £35.90 |
| 50 - 99 | £34.50 |
| 100 - 249 | £33.21 |
| 250 - 499 | £32.06 |
| 500 + | £30.91 |
*price indicative
- RS Stock No.:
- 317-257
- Mfr. Part No.:
- FLN19-RED04
- Brand:
- TE Connectivity
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Rocker Switch | |
| Contact Configuration | DPDT | |
| Switch Operation | Latching | |
| Housing Material | Aluminium | |
| Panel Cutout Size | 15.9 x 13 mm | |
| Illuminated | No | |
| Mount Type | Panel | |
| Terminal Type | Wire | |
| IP Rating | IP66 | |
| Contact DC Voltage | 28V dc | |
| Contact AC Voltage | 250V ac | |
| Minimum Operating Temperature | -20°C | |
| Switch Configuration | On-None-On | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | VDE, BS, CE, CSA, RoHS, UL | |
| Mechanical Life | 100000Operations | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Rocker Switch | ||
Contact Configuration DPDT | ||
Switch Operation Latching | ||
Housing Material Aluminium | ||
Panel Cutout Size 15.9 x 13 mm | ||
Illuminated No | ||
Mount Type Panel | ||
Terminal Type Wire | ||
IP Rating IP66 | ||
Contact DC Voltage 28V dc | ||
Contact AC Voltage 250V ac | ||
Minimum Operating Temperature -20°C | ||
Switch Configuration On-None-On | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals VDE, BS, CE, CSA, RoHS, UL | ||
Mechanical Life 100000Operations | ||
- COO (Country of Origin):
- CN
Miniature Lever/Rocker Switches
Switches with body and switch mechanism identical to the miniature toggle switches with silver contacts, but fitted with alternative style of actuators in a choice of colours
Each switch is supplied with an optional black bezel that may be fitted by snapping it over the flanges on two sides of the switch, prior to fitting to a panel by means of clipping the frame into a prepared cut-out (hole cutter see stock no. 545-323 is suitable)
These switches have the advantage of toggle switch design, compact dimensions, and are useful where toggle levers are undesirable
The use of alternative styles and colours allows the possibility of coding switch functions
Contact Rating-A 6A
Contact Rating-V 28Vdc/250 Vac
Approvals
UL; CSA
