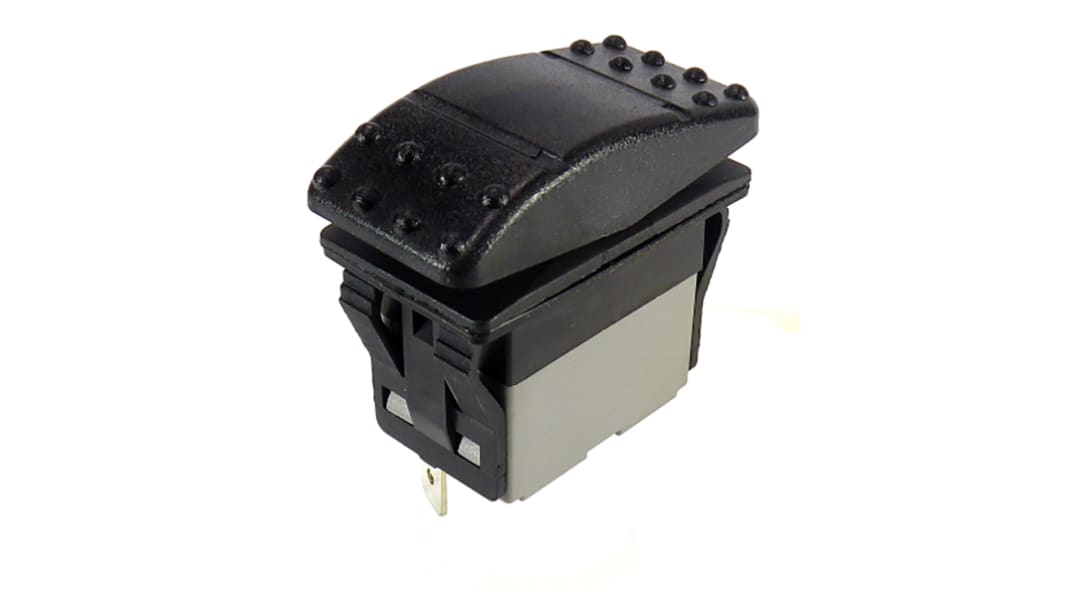

RS PRO DPDT, Latching Rocker Switch Panel Mount
- RS Stock No.:
- 174-8298
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 box of 500 units)*
£5,477.00
(exc. VAT)
£6,572.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 500 - 500 | £10.954 | £5,477.00 |
| 1000 - 2000 | £10.077 | £5,038.50 |
| 2500 + | £9.311 | £4,655.50 |
*price indicative
- RS Stock No.:
- 174-8298
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Contact Configuration | DPDT | |
| Switch Operation | Latching | |
| Panel Cut Out Width | 37mm | |
| Panel Cut Out Height | 21.1mm | |
| Contact Current Rating | 16 A @ 125 → 250 V ac, 16 A @ 30 V dc, 20 A @ 125 → 250 V ac | |
| Illuminated | No | |
| Actuator Colour | Black | |
| Mounting Type | Panel Mount | |
| IP Rating | IP67 | |
| Terminal Type | Quick Connect | |
| Legend Text | On | |
| Panel Cut Out Size | 21.1 x 37mm | |
| Actuator Shape | Rectangular | |
| AC Voltage Rating | 125 → 250V | |
| DC Voltage Rating | 30V | |
| Contact Resistance | 20mΩ | |
| Contact Material | Copper | |
| Minimum Operating Temperature | -20°C | |
| Case Material | Polyamide | |
| Maximum Operating Temperature | +85°C | |
| Operating Temperature Range | -20 → +85°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Contact Configuration DPDT | ||
Switch Operation Latching | ||
Panel Cut Out Width 37mm | ||
Panel Cut Out Height 21.1mm | ||
Contact Current Rating 16 A @ 125 → 250 V ac, 16 A @ 30 V dc, 20 A @ 125 → 250 V ac | ||
Illuminated No | ||
Actuator Colour Black | ||
Mounting Type Panel Mount | ||
IP Rating IP67 | ||
Terminal Type Quick Connect | ||
Legend Text On | ||
Panel Cut Out Size 21.1 x 37mm | ||
Actuator Shape Rectangular | ||
AC Voltage Rating 125 → 250V | ||
DC Voltage Rating 30V | ||
Contact Resistance 20mΩ | ||
Contact Material Copper | ||
Minimum Operating Temperature -20°C | ||
Case Material Polyamide | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -20 → +85°C | ||
- COO (Country of Origin):
- TW
Power Level, available from SPST to DPDT with a variety of options for actuator and actuator symbol.
• Mounting unit is available to simply the installation when several switches are required
• Wide variety of actuator shapes / styles with optional pad printed symbols
• Illuminated or non-illuminated models
• 8 and 10-terminal versions allowing independent LED circuit or additional integrated functions
• Wide variety of actuator shapes / styles with optional pad printed symbols
• Illuminated or non-illuminated models
• 8 and 10-terminal versions allowing independent LED circuit or additional integrated functions
