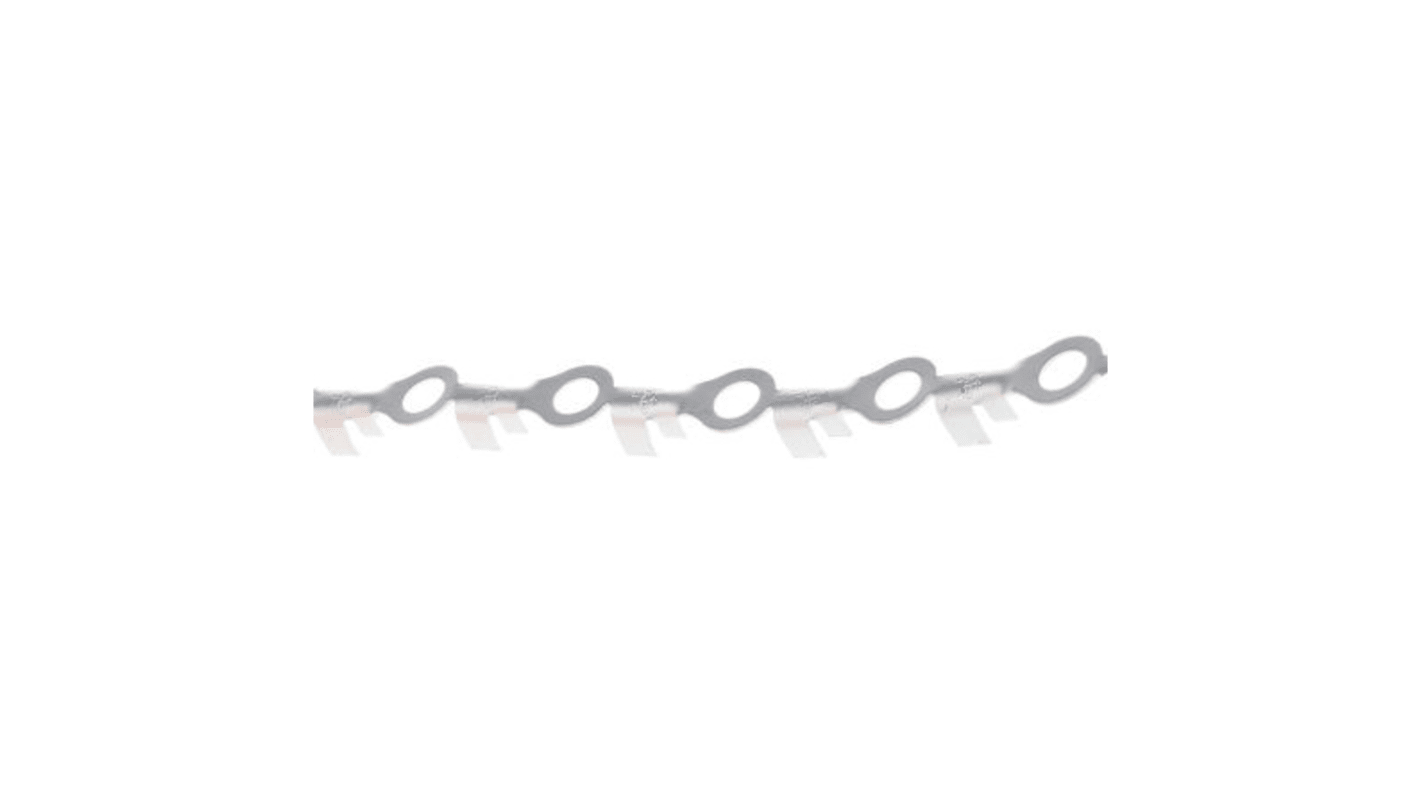

TE Connectivity Uninsulated Ring Terminal, M4 Stud Size 18 AWG 14 AWG Wire Size, Grey
- RS Stock No.:
- 719-6209
- Mfr. Part No.:
- 41332
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 100 units)*
£6.30
(exc. VAT)
£7.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 5,200 unit(s) shipping from 23 February 2026
- Plus 6,800 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.063 | £6.30 |
| 500 - 2400 | £0.062 | £6.20 |
| 2500 + | £0.06 | £6.00 |
*price indicative
- RS Stock No.:
- 719-6209
- Mfr. Part No.:
- 41332
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Ring Terminal | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 4.34mm | |
| Outer Ring Diameter | 7.52mm | |
| Minimum Wire Size AWG | 18 AWG | |
| Maximum Wire Size AWG | 14 AWG | |
| Overall Length | 16.25mm | |
| Stud Size | M4 | |
| Colour | Grey | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Thickness | 0.51mm | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 110°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Wire Size mm² | 2mm² | |
| Minimum Wire Size mm² | 0.8mm² | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Ring Terminal | ||
Insulation Uninsulated | ||
Inner Ring Diameter 4.34mm | ||
Outer Ring Diameter 7.52mm | ||
Minimum Wire Size AWG 18 AWG | ||
Maximum Wire Size AWG 14 AWG | ||
Overall Length 16.25mm | ||
Stud Size M4 | ||
Colour Grey | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Thickness 0.51mm | ||
Standards/Approvals No | ||
Maximum Operating Temperature 110°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Wire Size mm² 2mm² | ||
Minimum Wire Size mm² 0.8mm² | ||
TE Connectivity 'F' Style Ring Tongue Crimp Terminals
A range of open barrel 'F' style ring and spade crimp terminals
