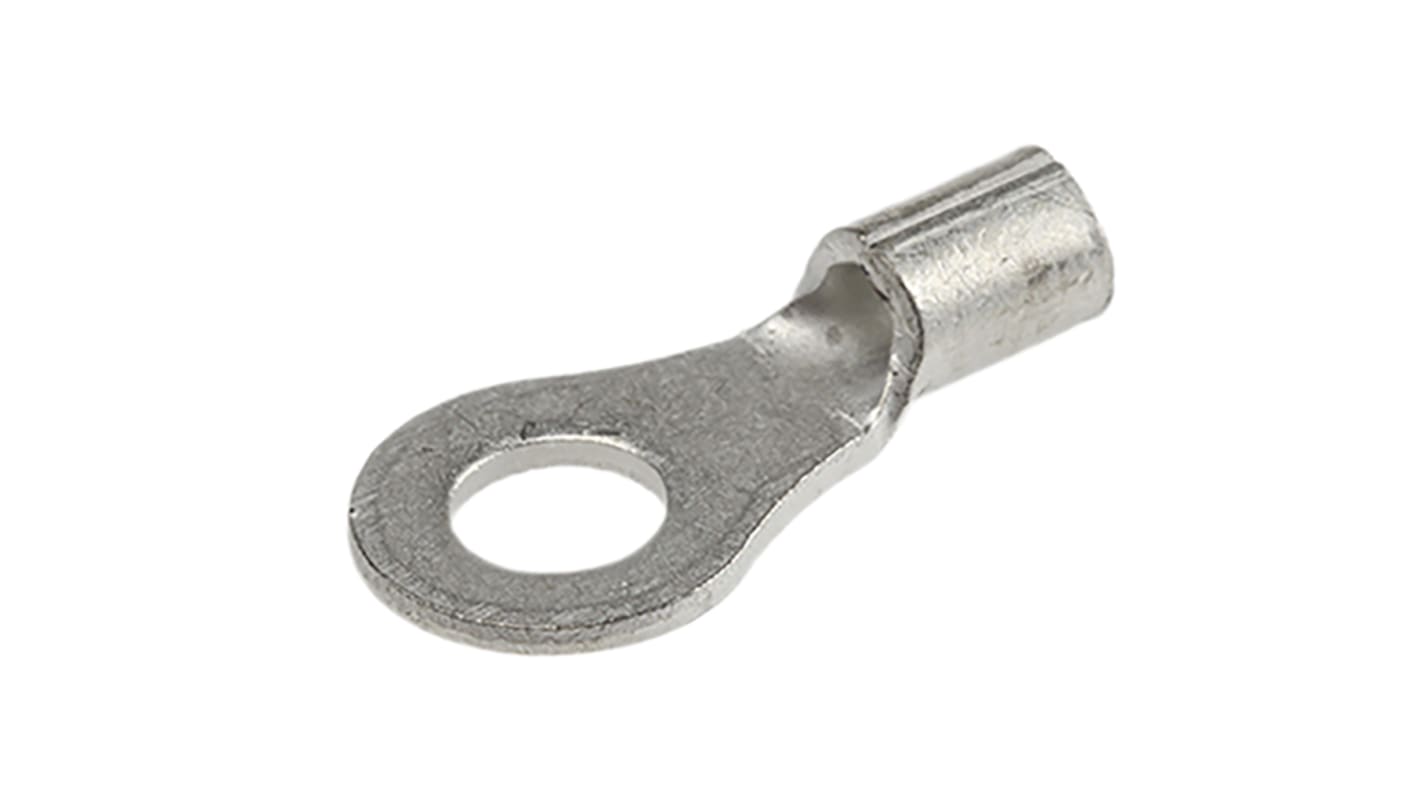

TE Connectivity, SOLISTRAND Uninsulated Ring Terminal, M3.5 (#6) Stud Size, 0.26mm² to 1.65mm² Wire Size
- RS Stock No.:
- 165-0508
- Mfr. Part No.:
- 2-34107-2
- Brand:
- TE Connectivity
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 165-0508
- Mfr. Part No.:
- 2-34107-2
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | SOLISTRAND | |
Insulation | Uninsulated | |
Outer Ring Diameter | 7.14mm | |
Inner Ring Diameter | 3.68mm | |
Minimum Wire Size mm² | 0.26mm² | |
Maximum Wire Size mm² | 1.65mm² | |
Maximum Wire Size AWG | 16AWG | |
Minimum Wire Size AWG | 22AWG | |
Stud Size | M3.5 (#6) | |
Contact Material | Copper | |
Thickness | 0.79mm | |
Overall Length | 14.58mm | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series SOLISTRAND | ||
Insulation Uninsulated | ||
Outer Ring Diameter 7.14mm | ||
Inner Ring Diameter 3.68mm | ||
Minimum Wire Size mm² 0.26mm² | ||
Maximum Wire Size mm² 1.65mm² | ||
Maximum Wire Size AWG 16AWG | ||
Minimum Wire Size AWG 22AWG | ||
Stud Size M3.5 (#6) | ||
Contact Material Copper | ||
Thickness 0.79mm | ||
Overall Length 14.58mm | ||
