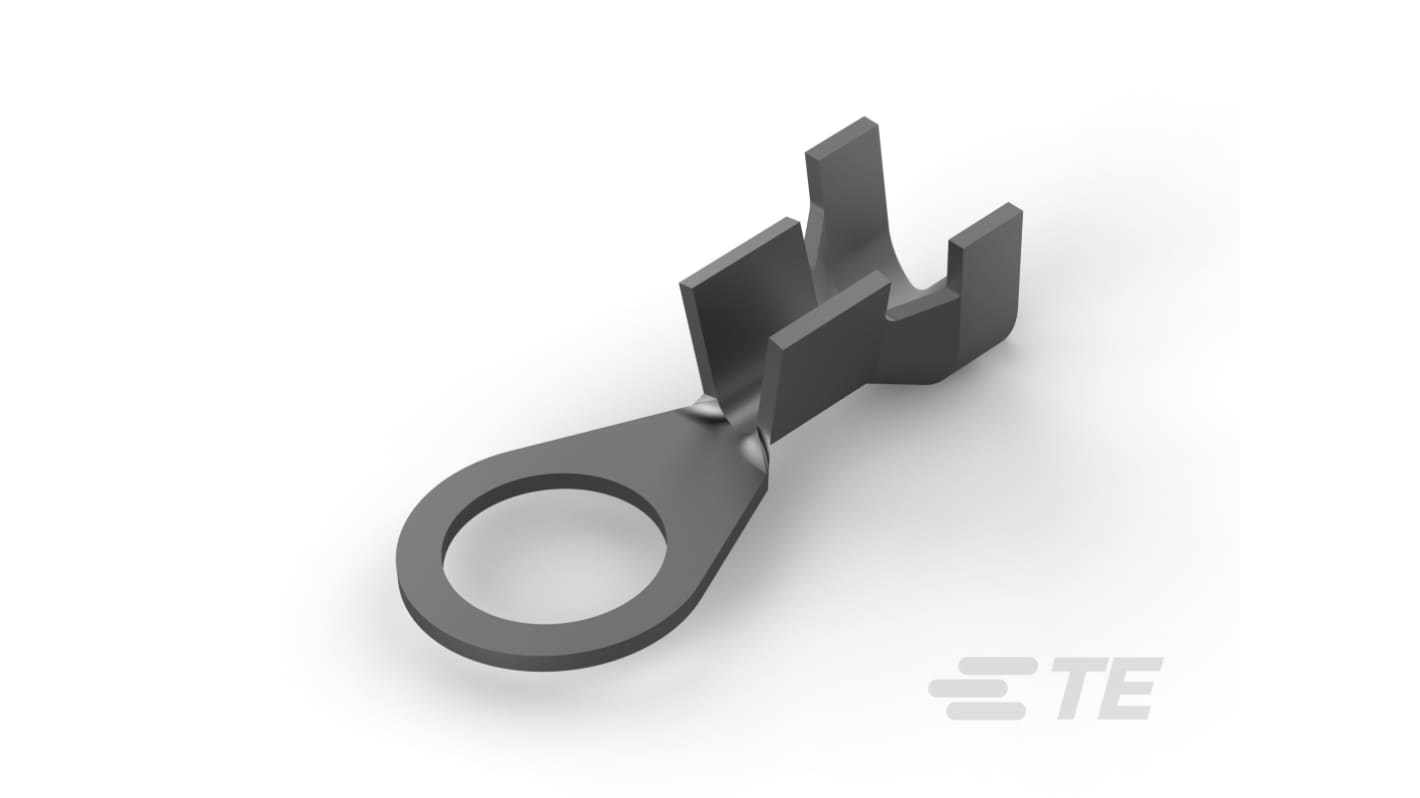

TE Connectivity, 109452 Uninsulated Ring Terminal, M4 Stud Size 18 AWG 14 AWG Wire Size, Black
- RS Stock No.:
- 468-016
- Distrelec Article No.:
- 304-52-474
- Mfr. Part No.:
- 109452-4
- Brand:
- TE Connectivity
Subtotal (1 reel of 12500 units)*
£980.76
(exc. VAT)
£1,176.91
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £980.76 | £0.078 |
*price indicative
- RS Stock No.:
- 468-016
- Distrelec Article No.:
- 304-52-474
- Mfr. Part No.:
- 109452-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Ring Terminal | |
| Series | 109452 | |
| Insulation | Uninsulated | |
| Outer Ring Diameter | 4.34mm | |
| Inner Ring Diameter | 4.06mm | |
| Maximum Wire Size AWG | 14 AWG | |
| Minimum Wire Size AWG | 18 AWG | |
| Overall Length | 17.27mm | |
| Stud Size | M4 | |
| Colour | Black | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Thickness | 0.51mm | |
| Standards/Approvals | 2016 No Restricted Materials Above Threshold, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU REACH (EC) No. 1907/2006, EU RoHS 2011/65/EU | |
| Maximum Operating Temperature | 110°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Ring Terminal | ||
Series 109452 | ||
Insulation Uninsulated | ||
Outer Ring Diameter 4.34mm | ||
Inner Ring Diameter 4.06mm | ||
Maximum Wire Size AWG 14 AWG | ||
Minimum Wire Size AWG 18 AWG | ||
Overall Length 17.27mm | ||
Stud Size M4 | ||
Colour Black | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Thickness 0.51mm | ||
Standards/Approvals 2016 No Restricted Materials Above Threshold, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU REACH (EC) No. 1907/2006, EU RoHS 2011/65/EU | ||
Maximum Operating Temperature 110°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- US
The TE Connectivity closed ring tongue terminal is an essential component for reliable electrical connections in various applications. Designed to accommodate wire sizes from 18 to 14 AWG, this terminal offers compatibility with #8 and M4 studs, ensuring a secure fit. With a robust design incorporating an open barrel and straight orientation, it effectively supports heavy-duty performance while maintaining ease of installation. The terminal is manufactured with high-quality brass and features tin plating for enhanced conductivity and corrosion resistance. Ideal for use in harsh operating conditions, it remains functional across a temperature range of -40 to 110 °C. This product also prioritizes insulation support, making it suitable for stranded wire configurations. With a packaging quantity of 12,500, this product is designed for manufacturers needing reliability in high-volume installations.
Supports a wide wire size range for diverse applications
Designed for high-performance use in demanding environments
Tin plating ensures excellent electrical connectivity
Brass construction enhances durability and reliability
Compatible with both stranded wire types, expanding its utility
Single-hole configuration simplifies installation processes
Operates effectively across a broad temperature spectrum
Low halogen content aligns with environmental compliance initiatives
