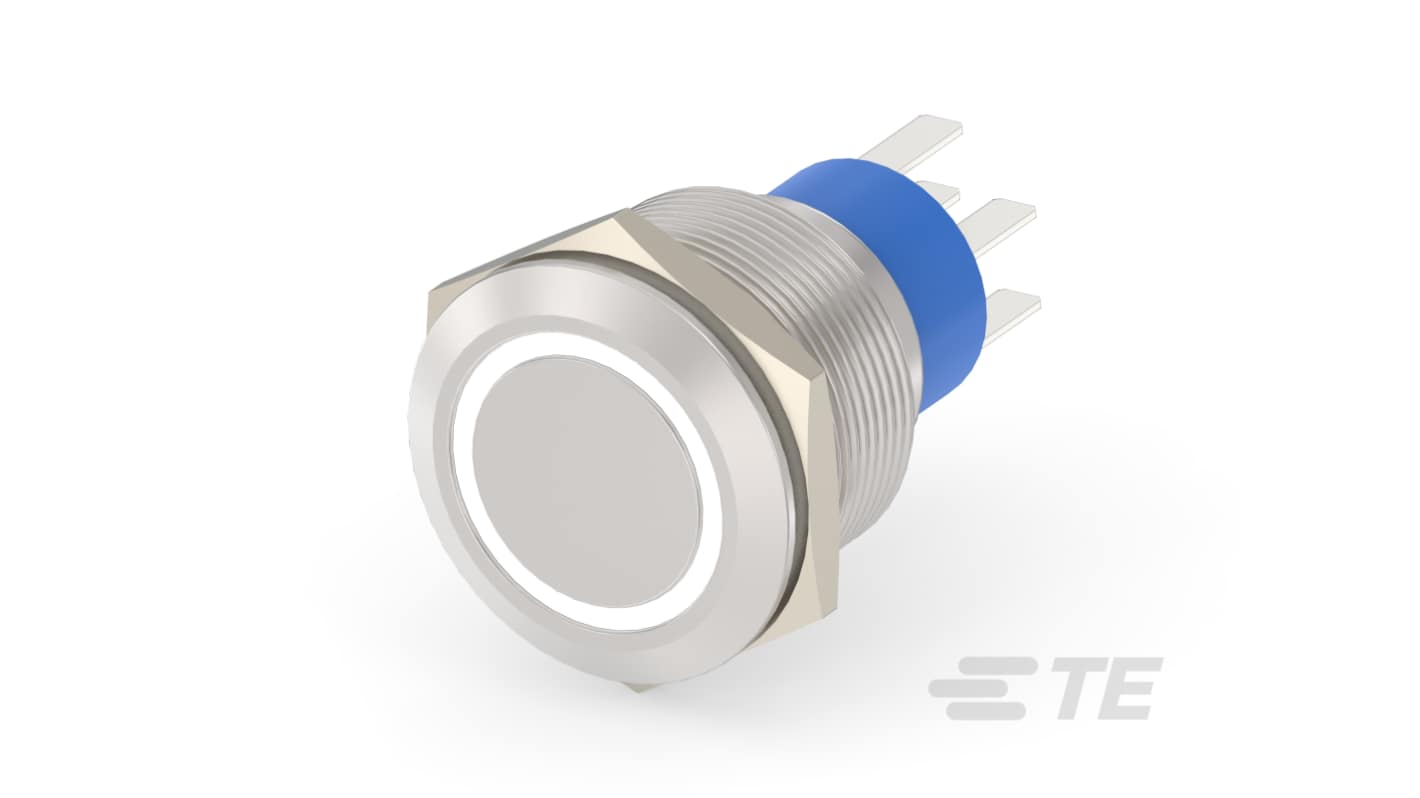

TE Connectivity Alcoswitch AV22 Series Illuminated Push Button Switch, Momentary, Bushing, DPST, IP67 250 V ac
- RS Stock No.:
- 510-003
- Distrelec Article No.:
- 304-61-614
- Mfr. Part No.:
- 4-2213772-3
- Brand:
- TE Connectivity
Subtotal (1 pack of 6 units)*
£177.92
(exc. VAT)
£213.50
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £177.92 | £29.653 |
*price indicative
- RS Stock No.:
- 510-003
- Distrelec Article No.:
- 304-61-614
- Mfr. Part No.:
- 4-2213772-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Push Button Switch | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Series | Alcoswitch AV22 | |
| Mount Type | Bushing | |
| Contact Configuration | DPST | |
| Terminal Type | Lug Ring | |
| IP Rating | IP67 | |
| Contact AC Voltage | 250V ac | |
| Actuator Style | Flush | |
| Switch Configuration | DPST | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU, UL Report | |
| Switch Contact Current | 3A | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Push Button Switch | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Series Alcoswitch AV22 | ||
Mount Type Bushing | ||
Contact Configuration DPST | ||
Terminal Type Lug Ring | ||
IP Rating IP67 | ||
Contact AC Voltage 250V ac | ||
Actuator Style Flush | ||
Switch Configuration DPST | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU, UL Report | ||
Switch Contact Current 3A | ||
- COO (Country of Origin):
- CN
The TE Connectivity Anti-vandal switch is designed for robust performance in challenging environments. With its double pole, single throw configuration, this switch provides reliable operation while being easy to install. Enhanced with a flush actuator design and illumination, it delivers functionality that is both practical and visually appealing. Its PBT case material ensures durability, making it ideally suited for applications that require resilience against environmental factors. The switch is engineered for momentary operation, allowing for precise control, and offers auditory feedback to the user. This combination of features makes it an excellent choice for both industrial and consumer electronics applications.
Engineered for durability in demanding applications
Illuminated design enhances visibility in low-light settings
Flush actuator profile promotes sleek integration into various devices
Auditory feedback provides confirmation upon actuation
Designed for easy installation with wire lug connections
Process sealed to protect against water and dust intrusion
Suitable for vertical product orientation
