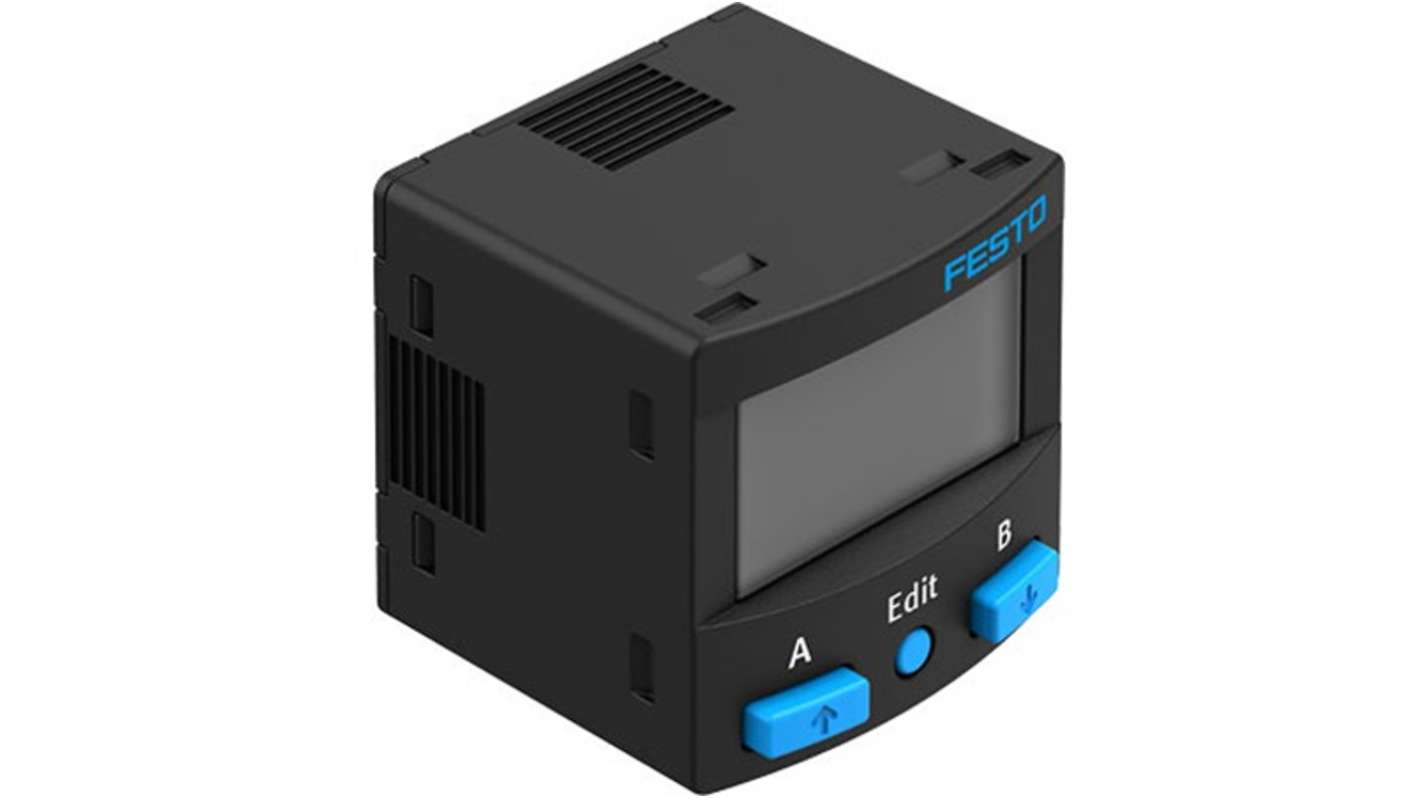

Festo SPAN Series Pressure Sensor, -1bar Min, 10bar Max, PNP/NPN Output, Relative Reading
- RS Stock No.:
- 351-124
- Mfr. Part No.:
- SPAN-B-B11R-M5FAL-PN-L1
- Brand:
- Festo
Subtotal (1 unit)*
£85.39
(exc. VAT)
£102.47
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £85.39 |
*price indicative
- RS Stock No.:
- 351-124
- Mfr. Part No.:
- SPAN-B-B11R-M5FAL-PN-L1
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Pressure Reading Type | Relative | |
Minimum Pressure Reading | -1bar | |
Maximum Pressure Reading | 10bar | |
Accuracy | 1.5 %FS | |
Output Type | PNP/NPN | |
Series | SPAN | |
Select all | ||
---|---|---|
Brand Festo | ||
Pressure Reading Type Relative | ||
Minimum Pressure Reading -1bar | ||
Maximum Pressure Reading 10bar | ||
Accuracy 1.5 %FS | ||
Output Type PNP/NPN | ||
Series SPAN | ||
- COO (Country of Origin):
- CN
The Festo Pressure Sensor is engineered for precision in monitoring relative pressure, utilising a piezoresistive method to deliver accurate readings within an operational range. With a robust design compliant to various global standards, this sensor is equipped with multiple safety features, ensuring enhanced reliability in a plethora of environments. Its user-friendly interface, featuring an illuminated LCD and programmable settings, makes it an essential tool for professionals seeking flexibility and control in pressure measurement applications. This sensor is not just about performance
it also provides significant corrosion resistance and optimum temperature handling, making it suitable for diverse operational mediums such as compressed air and inert gases.
Equipped with both N/C and N/O contact switching functions
Supports a wide operational voltage range promoting versatility
Incorporates reverse polarity protection for increased safety
Features an IP40 rating ensuring adequate protection against dust ingress
Designed for easy mounting with options for front panel or wall/surface installation
Supports a wide operational voltage range promoting versatility
Incorporates reverse polarity protection for increased safety
Features an IP40 rating ensuring adequate protection against dust ingress
Designed for easy mounting with options for front panel or wall/surface installation
