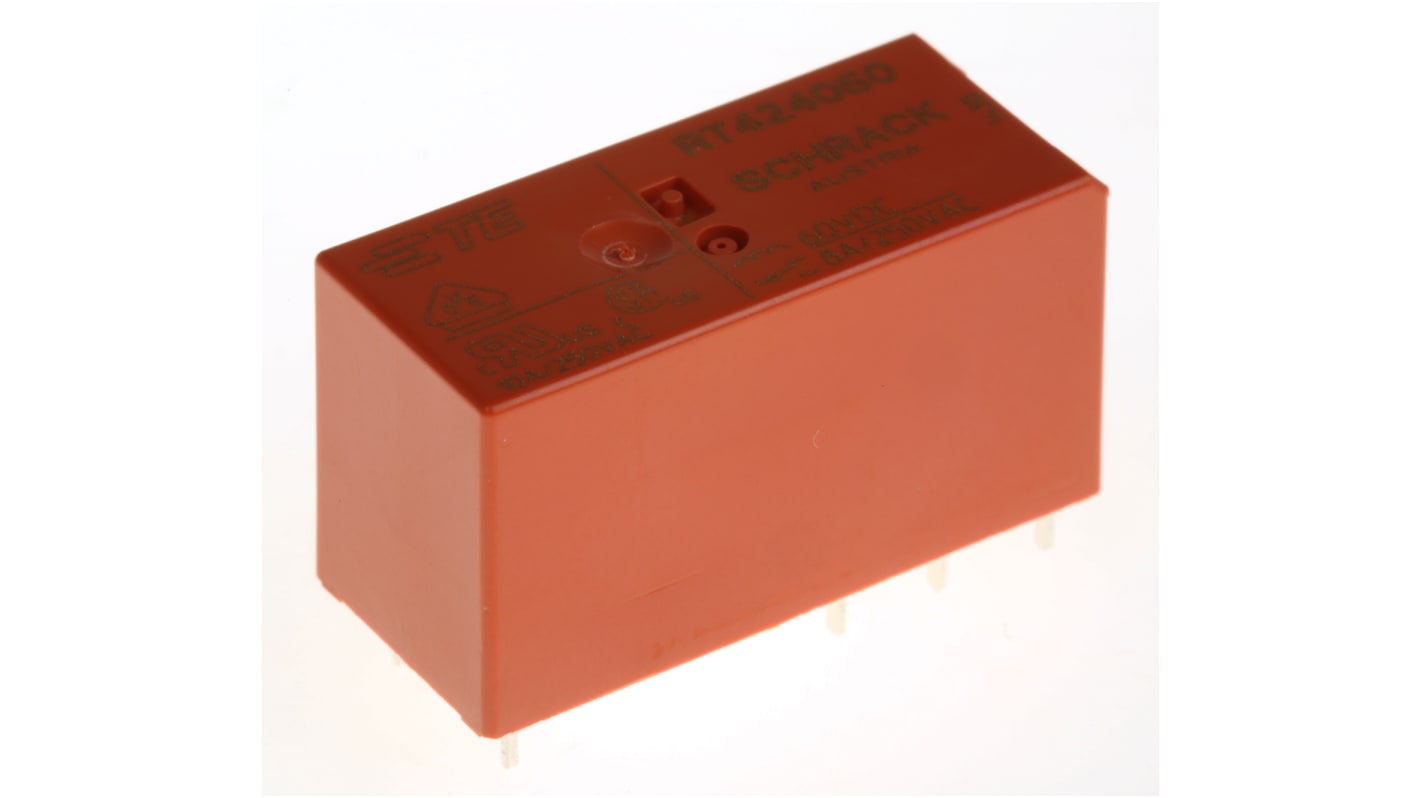

TE Connectivity PCB Mount Power Relay, 60V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 718-1746
- Mfr. Part No.:
- 7-1393243-3
- Brand:
- TE Connectivity
98 In stock - FREE next working day delivery available
12 available from Europe for delivery within 1 working day(s).
Price Each
£5.11
(exc. VAT)
£6.13
(inc. VAT)
| Units | Per unit |
| 1 + | £5.11 |
- RS Stock No.:
- 718-1746
- Mfr. Part No.:
- 7-1393243-3
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
TE Connectivity RT1 and RT2 Series PCB Power Relays
RT Series 1 and Series 2 through hole mounting PCB power relays with a variety of contact configurations and coil voltages.
RT1 PCB have 3.5mm pinning and are flux proof
RT2 PCB have 5mm pinning and are flux proof
RT3 PCB have 5mm pinning and are flux proor
RTB PCB have 3.5mm pinning and are wash tight
RTD PCB have 5mm pinning and are wash tight
RT4 PCB have 5mm pinning and are flux proof
RTE PCB have 5mm pinning and are wash tight
RT1 PCB have 3.5mm pinning and are flux proof
RT2 PCB have 5mm pinning and are flux proof
RT3 PCB have 5mm pinning and are flux proor
RTB PCB have 3.5mm pinning and are wash tight
RTD PCB have 5mm pinning and are wash tight
RT4 PCB have 5mm pinning and are flux proof
RTE PCB have 5mm pinning and are wash tight
Creepage and Clearance 10//10 mm
Applications: interface, automation, domestic applications, security lighting, heating systems
Applications: interface, automation, domestic applications, security lighting, heating systems
Note
Part Number (RT...F) F= Coil insulation system according UL class F
Approvals
UL, CSA, VDE
2 pole 8A, 2 form C (CO) or 2 form A (NO) contacts
DC or AC coil
5kV/10mm coil-contact, reinforced insulation
Ambient temperature up to 85°C
DC or AC coil
5kV/10mm coil-contact, reinforced insulation
Ambient temperature up to 85°C
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 60V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 8A |
| Number of Poles | 2 |
| Latching | No |
| Terminal Type | Through Hole |
| Maximum Switching Voltage AC | 400V ac |
| Length | 29mm |
| Coil Resistance | 8570Ω |
| Coil Power | 420mW |
| Height | 15.7mm |
| Minimum Operating Temperature | -40°C |
| Depth | 12.7mm |
| Contact Material | Silver Alloy |
| Series | RT2 |
| Maximum Operating Temperature | +85°C |
| Isolation Coil To Contact | 5kVrms |
| Maximum Switching Power AC | 2 kVA |
| Application | Power |
