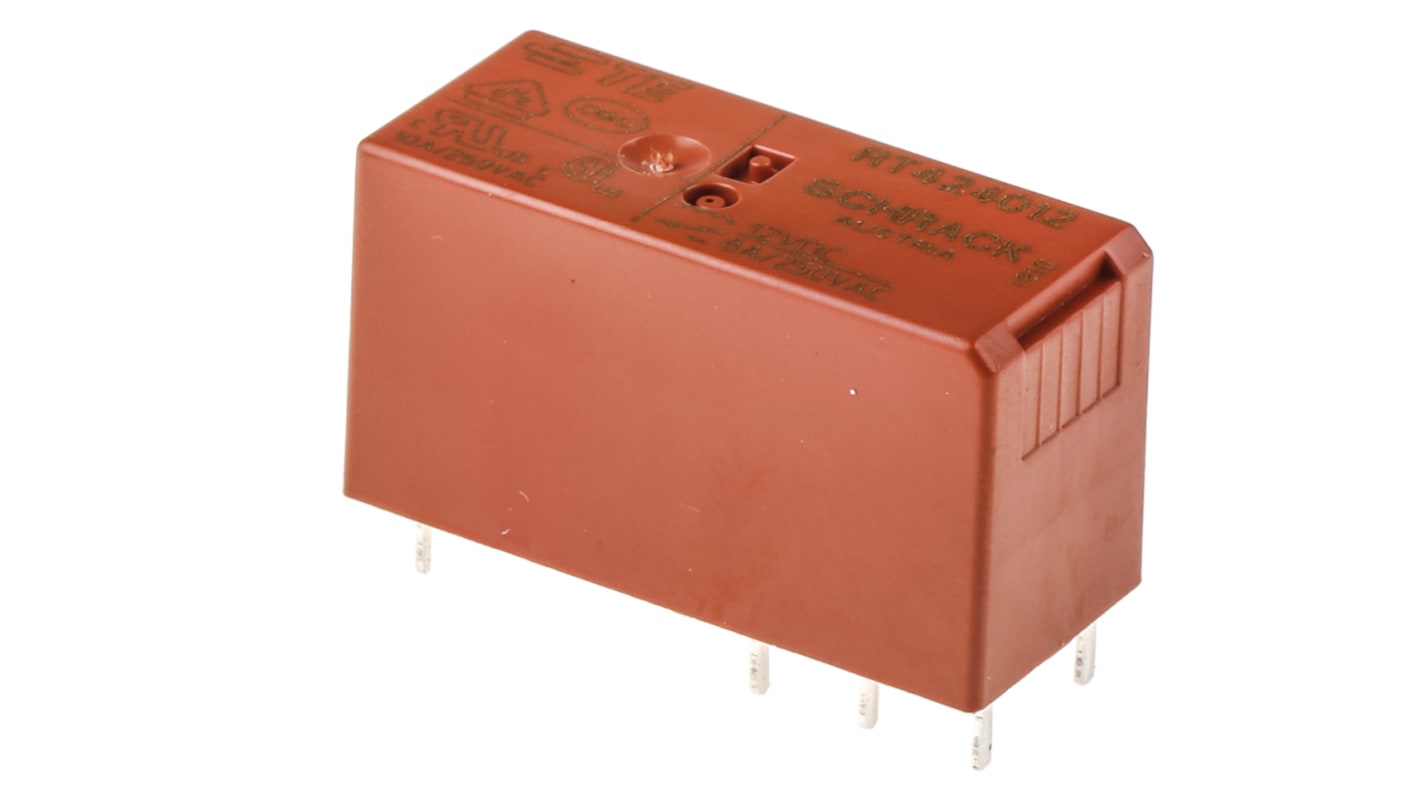

TE Connectivity PCB Mount Power Relay, 12V dc Coil, 8A Switching Current, DPDT

RS Stock No.:: 680-3830
Mfr. Part No.:: RT424012 6-1393243-3
Brand:: TE Connectivity

TE Connectivity PCB Mount Power Relay, 12V dc Coil, 8A Switching Current, DPDT

779 In stock - FREE next working day delivery available

112 available from Europe for delivery within 1 working day(s).

Added

Price Each

£4.13

(exc. VAT)

£4.96

(inc. VAT)

Units	Per unit
1 - 9	£4.13
10 - 24	£3.94
25 - 49	£3.73
50 - 99	£3.52
100 +	£3.31

Packaging Options:

Standard Pack

Production Pack

RS Stock No.:: 680-3830
Mfr. Part No.:: RT424012 6-1393243-3
Brand:: TE Connectivity

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: AT

Product Details

TE Connectivity Non-latching Relay

The TE Connectivity RT2 series PCB mount non-latching relay has contact configuration of DPDT. It is actuated with 12VDC coil voltage and 8A switching current. This general-purpose power relay has pinning of 5mm.
Note:
Part number (RT... F) F= Coil insulation system according to UL class F

Features and Benefits

Coil resistance is 360ohm
Contact material is silver nickel (AgNi)
Creepage and clearance between contact and coil is ≥10/10mm
Operating temperature ranges between -40°C and 85°C
Flux resistant
Through hole terminal type

Applications

Boiler control
Timers
Garage door control
POS automation
Interface modules

Certifications

UL approved
CSA certified
VDE

Specifications

Attribute	Value
Coil Voltage	12V dc
Contact Configuration	DPDT
Mounting Type	PCB Mount
Switching Current	8A
Number of Poles	2
Latching	No
Terminal Type	Through Hole
Length	29mm
Coil Resistance	360Ω
Depth	12.7mm
Contact Material	Silver Nickel Alloy
Maximum Operating Temperature	+85°C
Height	15.7mm
Minimum Operating Temperature	-40°C
Series	RT2
Maximum Switching Power AC	2 kVA
Application	Power
