- RS Stock No.:
- 135-5119
- Mfr. Part No.:
- RT424024 6-1393243-8
- Brand:
- TE Connectivity
View all Power Relays
3620 In stock - FREE next working day delivery available
380 available from Europe for delivery within 1 working day(s).
Price Each (In a Box of 20)
£2.674
(exc. VAT)
£3.209
(inc. VAT)
Units | Per unit | Per Box* |
20 - 20 | £2.674 | £53.48 |
40 - 80 | £2.54 | £50.80 |
100 - 180 | £2.273 | £45.46 |
200 - 480 | £2.005 | £40.10 |
500 + | £1.738 | £34.76 |
*price indicative |
- RS Stock No.:
- 135-5119
- Mfr. Part No.:
- RT424024 6-1393243-8
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- AT
Product Details

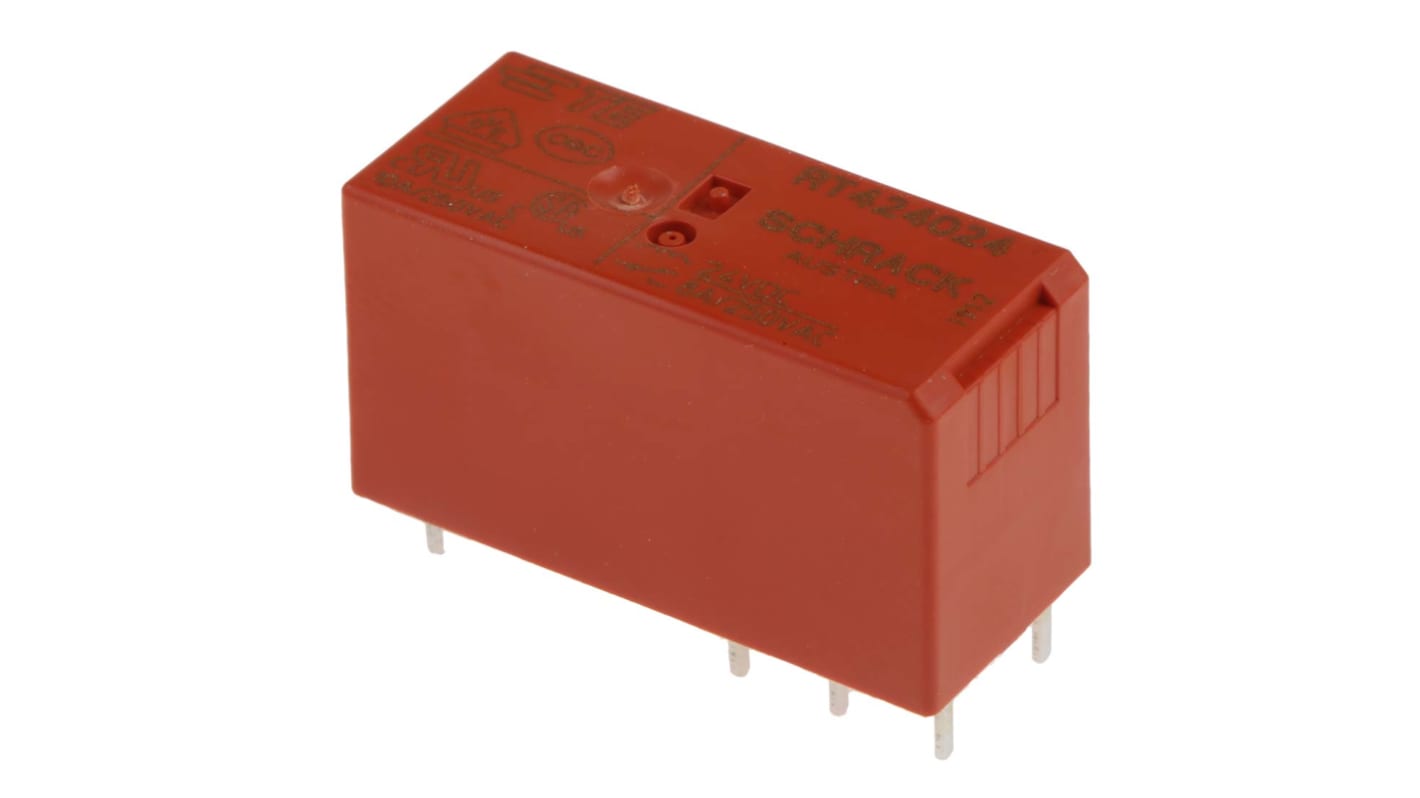

TE Connectivity Non-latching Relay
The TE Connectivity RT2 series PCB mount non-latching relay has contact configuration of DPDT. It is actuated with 24VDC coil voltage and 8A switching current. This general-purpose power relay has pinning of 5mm.
Note:
Part number (RT... F) F= Coil insulation system according to UL class F
Note:
Part number (RT... F) F= Coil insulation system according to UL class F
Features and Benefits
Coil resistance is 1.44Kohm
Waveflow soldering version
Contact material is silver nickel (AgNi)
Creepage and clearance between contact and coil is ≥10/10mm
Operating temperature ranges between -40°C and 85°C
Flux resistant
Through hole terminal type
Waveflow soldering version
Contact material is silver nickel (AgNi)
Creepage and clearance between contact and coil is ≥10/10mm
Operating temperature ranges between -40°C and 85°C
Flux resistant
Through hole terminal type
Applications
Boiler control
Timers
Garage door control
POS automation
Interface modules
Timers
Garage door control
POS automation
Interface modules
Certifications
UL approved
CSA certified
VDE
CSA certified
VDE
Specifications
Attribute | Value |
Coil Voltage | 24V dc |
Contact Configuration | DPDT |
Mounting Type | PCB Mount |
Switching Current | 8A |
Number of Poles | 2 |
Latching | No |
Terminal Type | Through Hole |
Length | 29mm |
Coil Resistance | 1440Ω |
Maximum Operating Temperature | +85°C |
Height | 15.7mm |
Series | RT2 |
Minimum Operating Temperature | -40°C |
Depth | 12.7mm |
Contact Material | Silver Nickel Alloy |
Maximum Switching Power AC | 2 kVA |
Application | Power |
