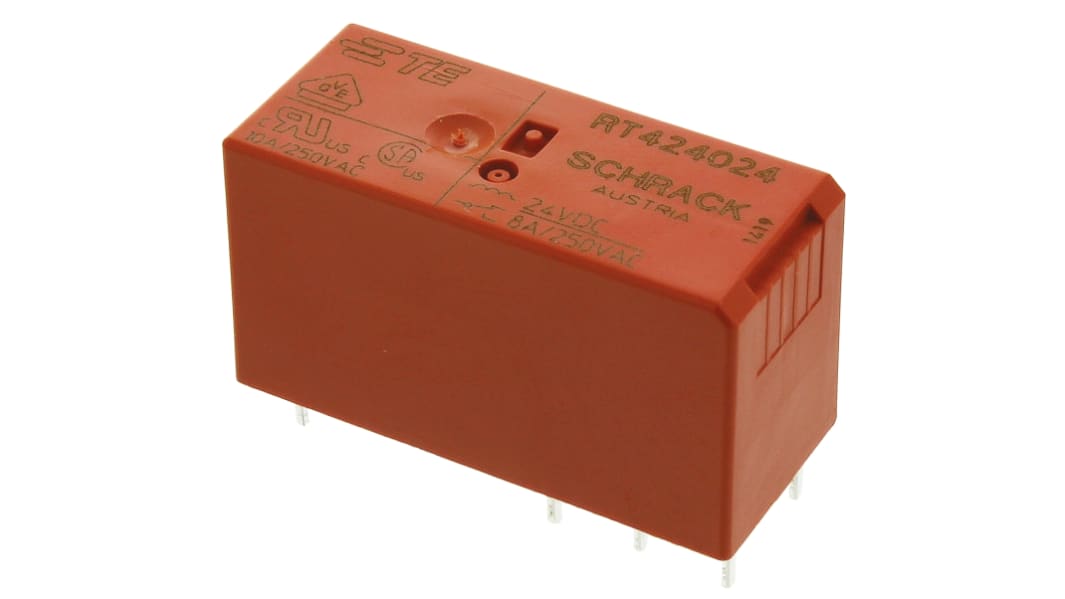

TE Connectivity PCB Mount Power Relay, 24V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 680-3849
- Distrelec Article No.:
- 304-11-487
- Mfr. Part No.:
- RT424024 6-1393243-8
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£4.22
(exc. VAT)
£5.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,197 unit(s) ready to ship
- Plus 689 unit(s) ready to ship from another location
- Plus 32,979 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £4.22 |
10 - 24 | £4.02 |
25 - 49 | £3.79 |
50 - 99 | £3.58 |
100 + | £3.39 |
*price indicative
- RS Stock No.:
- 680-3849
- Distrelec Article No.:
- 304-11-487
- Mfr. Part No.:
- RT424024 6-1393243-8
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Coil Voltage | 24V dc | |
Contact Configuration | DPDT | |
Mounting Type | PCB Mount | |
Switching Current | 8A | |
Number of Poles | 2 | |
Latching | No | |
Series | RT2 | |
Terminal Type | Through Hole | |
Length | 29mm | |
Coil Resistance | 1440Ω | |
Maximum Operating Temperature | +85°C | |
Depth | 12.7mm | |
Minimum Operating Temperature | -40°C | |
Height | 15.7mm | |
Contact Material | Silver Nickel Alloy | |
Maximum Switching Power AC | 2 kVA | |
Application | Power | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Latching No | ||
Series RT2 | ||
Terminal Type Through Hole | ||
Length 29mm | ||
Coil Resistance 1440Ω | ||
Maximum Operating Temperature +85°C | ||
Depth 12.7mm | ||
Minimum Operating Temperature -40°C | ||
Height 15.7mm | ||
Contact Material Silver Nickel Alloy | ||
Maximum Switching Power AC 2 kVA | ||
Application Power | ||
- COO (Country of Origin):
- AT
TE Connectivity Non-latching Relay
The TE Connectivity RT2 series PCB mount non-latching relay has contact configuration of DPDT. It is actuated with 24VDC coil voltage and 8A switching current. This general-purpose power relay has pinning of 5mm.
Note:
Part number (RT... F) F= Coil insulation system according to UL class F
Note:
Part number (RT... F) F= Coil insulation system according to UL class F
Features and Benefits
Coil resistance is 1.44Kohm
Waveflow soldering version
Contact material is silver nickel (AgNi)
Creepage and clearance between contact and coil is ≥10/10mm
Operating temperature ranges between -40°C and 85°C
Flux resistant
Through hole terminal type
Waveflow soldering version
Contact material is silver nickel (AgNi)
Creepage and clearance between contact and coil is ≥10/10mm
Operating temperature ranges between -40°C and 85°C
Flux resistant
Through hole terminal type
Applications
Boiler control
Timers
Garage door control
POS automation
Interface modules
Timers
Garage door control
POS automation
Interface modules
Certifications
UL approved
CSA certified
VDE
CSA certified
VDE
