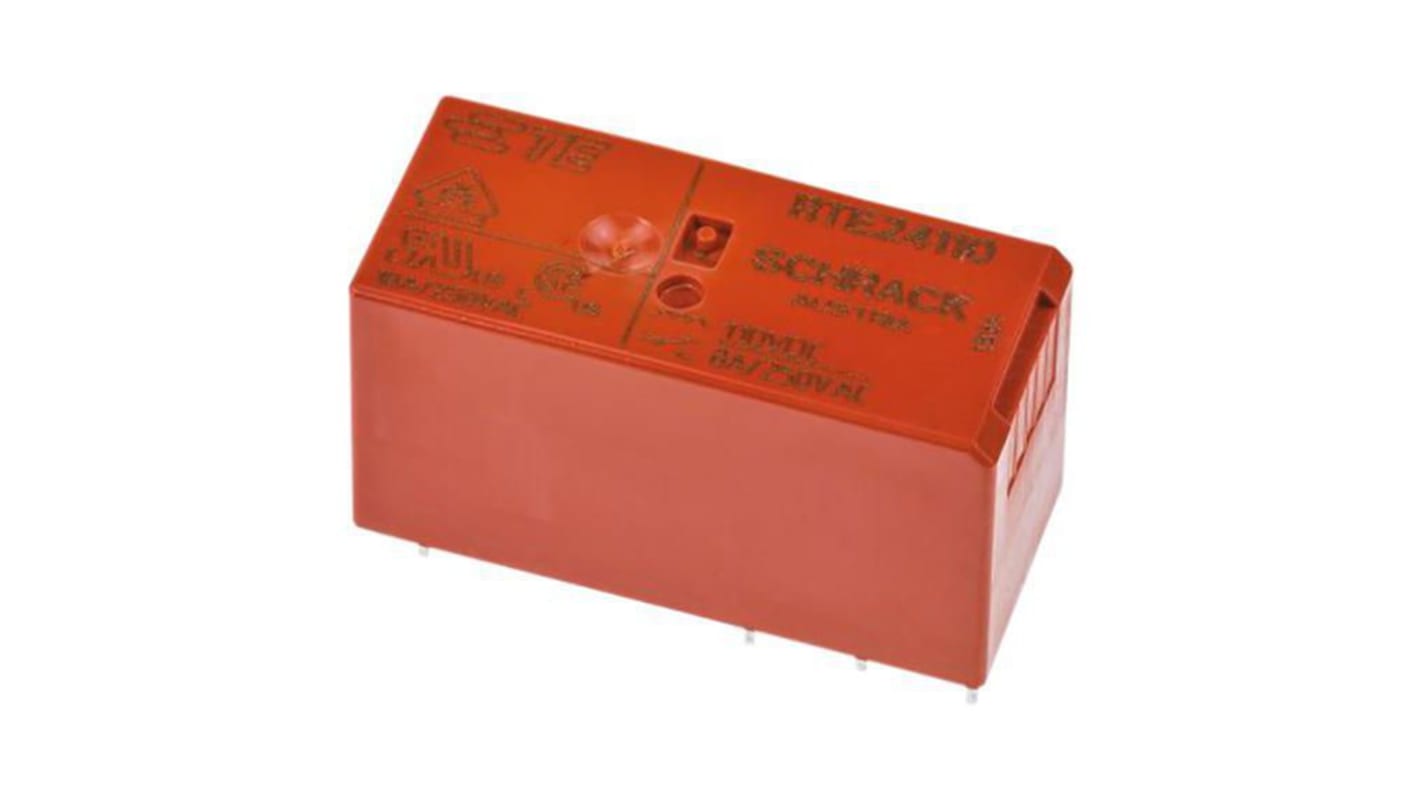

TE Connectivity PCB Power Relay, 24V Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 285-7077
- Distrelec Article No.:
- 301-19-732
- Mfr. Part No.:
- 8-1393243-5
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£11.11
(exc. VAT)
£13.33
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 135 unit(s) ready to ship
- Plus 55 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.11 |
*price indicative
- RS Stock No.:
- 285-7077
- Distrelec Article No.:
- 301-19-732
- Mfr. Part No.:
- 8-1393243-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Power Relay | |
| Coil Voltage | 24V | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Series | SCHRACK General Purpose Low Power PCB Relays | |
| Switching Current | 8A | |
| Switching Power | 2kVA | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 400V ac | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 32.5kΩ | |
| Standards/Approvals | cCSAus 1142018, EN60730-1, IEC60335-1, EN60947-5-1, VDE Cert. No. 40007571, UL E214025, IEC 61810-1, UL 508 | |
| Coil Power | 420mW | |
| Contact Material | Silver Alloy Gold Plated, Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Power Relay | ||
Coil Voltage 24V | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Series SCHRACK General Purpose Low Power PCB Relays | ||
Switching Current 8A | ||
Switching Power 2kVA | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 400V ac | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 32.5kΩ | ||
Standards/Approvals cCSAus 1142018, EN60730-1, IEC60335-1, EN60947-5-1, VDE Cert. No. 40007571, UL E214025, IEC 61810-1, UL 508 | ||
Coil Power 420mW | ||
Contact Material Silver Alloy Gold Plated, Silver Tin Oxide | ||
The PCB power relay model RT2 is a double pole, changeover (2CO) configuration rated for 8A at DC 24V, with a coil resistance of 1.44kOhm.
Switching current 8 A
Switching capacity 2 kVA
Switching voltage - AC 250 V
