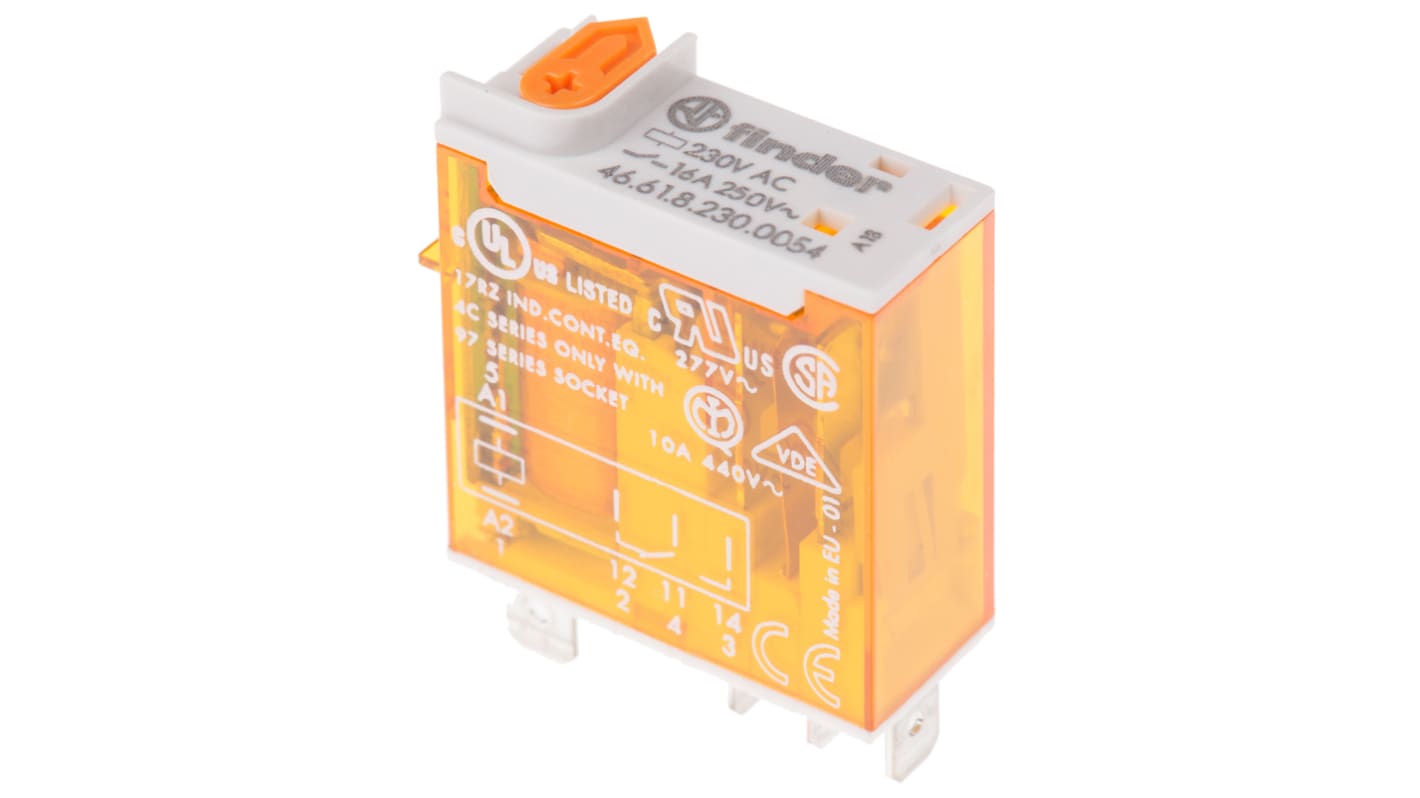

Finder PCB Mount Power Relay, 230V ac Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 534-5308
- Mfr. Part No.:
- 46.61.8.230.0054
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£14.94
(exc. VAT)
£17.93
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 269 unit(s) ready to ship
- Plus 21 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £14.94 |
5 - 9 | £14.49 |
10 + | £13.84 |
*price indicative
- RS Stock No.:
- 534-5308
- Mfr. Part No.:
- 46.61.8.230.0054
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 230V ac | |
Contact Configuration | SPDT | |
Mounting Type | PCB Mount | |
Switching Current | 16A | |
Number of Poles | 1 | |
Latching | No | |
Series | 46 Series | |
Terminal Type | Quick Connect | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 16V | |
Length | 29mm | |
Coil Resistance | 28000Ω | |
Coil Power | 1.2W | |
Contact Material | Silver Alloy | |
Life | 100000 Cycles | |
Isolation Coil To Contact | 6kV | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -40°C | |
Height | 32.8mm | |
Depth | 12.4mm | |
Maximum Switching Power AC | 4 kVA | |
Dimensions | 12.4x32.8x29mm | |
Application | General Purpose | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 230V ac | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Latching No | ||
Series 46 Series | ||
Terminal Type Quick Connect | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 16V | ||
Length 29mm | ||
Coil Resistance 28000Ω | ||
Coil Power 1.2W | ||
Contact Material Silver Alloy | ||
Life 100000 Cycles | ||
Isolation Coil To Contact 6kV | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Height 32.8mm | ||
Depth 12.4mm | ||
Maximum Switching Power AC 4 kVA | ||
Dimensions 12.4x32.8x29mm | ||
Application General Purpose | ||
- COO (Country of Origin):
- IT
Finder 46 Series Power Relay, 230V AC Coil Voltage, 16A Switching Current - 46.61.8.230.0054
This power relay is a reliable industrial solution designed for various applications. With a contact configuration of SPDT and a switching current of 16A, it is ideal for automation systems. The compact design measures 12.4mm in depth, 32.8mm in height, and 29mm in length, making it suitable for PCB mounting. The coil voltage of 230V AC ensures compatibility with common electrical systems.
Features & Benefits
• Operates efficiently with a coil power of 1.2W
• Insulation between coil and contact rated at 6kV
• Maximum switching voltage up to 250V AC
• Long operational life with 100,000 cycles
• High-performance contact material of AgNi
• Insulation between coil and contact rated at 6kV
• Maximum switching voltage up to 250V AC
• Long operational life with 100,000 cycles
• High-performance contact material of AgNi
Applications
• Utilised in automation for blinds and shutters
• Suitable for controlling lifts and elevators
• Employed in shipyards for various machinery
• Ideal for tunnel and road lighting systems
• Commonly found in bottling plants and control panels
• Suitable for controlling lifts and elevators
• Employed in shipyards for various machinery
• Ideal for tunnel and road lighting systems
• Commonly found in bottling plants and control panels
What type of terminals does this relay feature?
It features quick connect terminals, enabling easy installation and removal from PCB mounts.
How is the relay's performance affected by temperature extremes?
It can operate within a temperature range of -40°C to +70°C without compromising functionality.
What insulation ratings contribute to its safety?
The relay incorporates 6 kV insulation between the coil and contacts, ensuring high safety standards in operation.
What are the implications of its contact configuration?
The SPDT contact configuration allows for versatile switching operations in various control systems.
Can this relay be used for high voltage applications?
Yes, with a maximum switching voltage of 250V AC, it is suitable for high voltage applications.
Approvals
UL recognised
