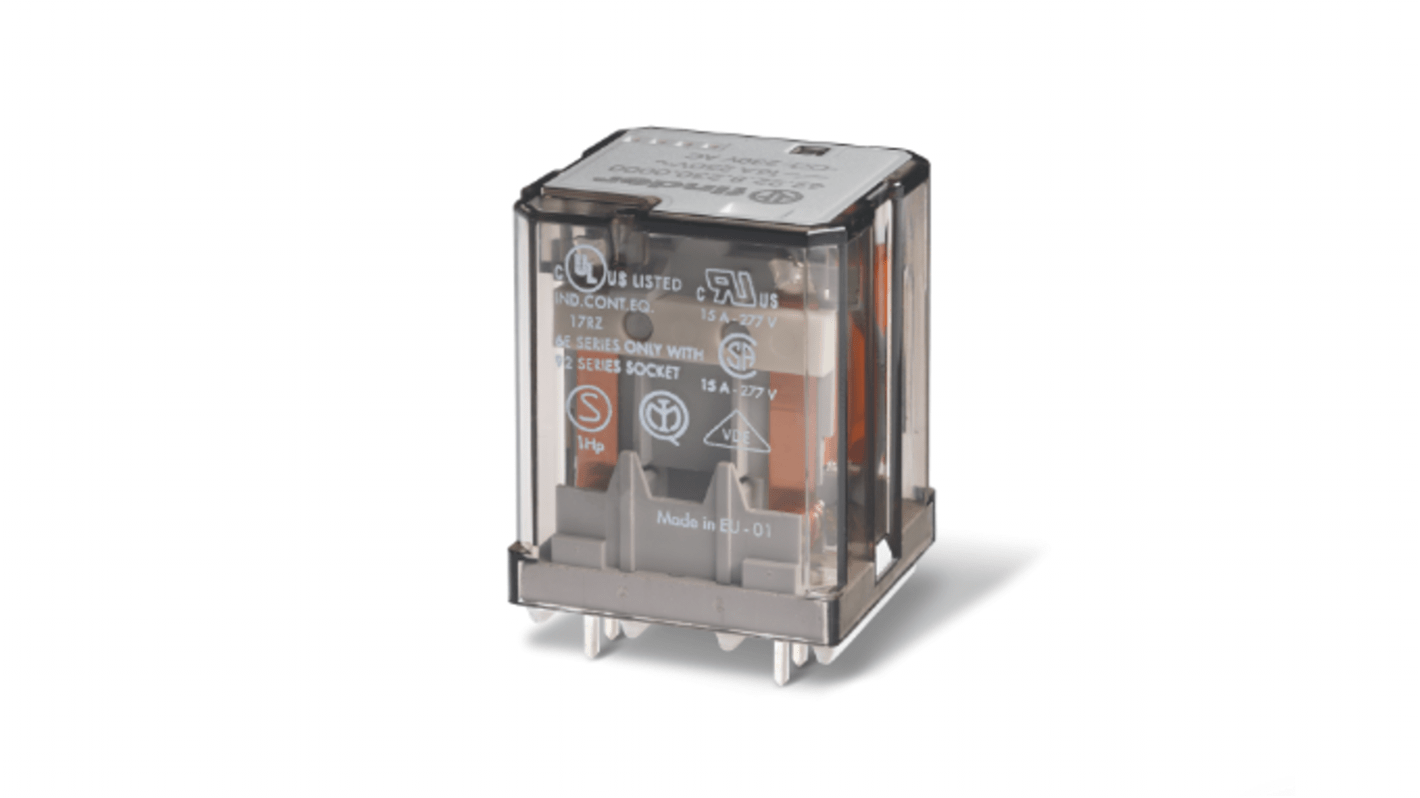

Finder PCB Mount Power Relay, 230V ac Coil, 16A Switching Current, DPST
- RS Stock No.:
- 257-7403
- Distrelec Article No.:
- 304-22-727
- Mfr. Part No.:
- 622282300300
- Brand:
- Finder
Subtotal (1 unit)*
£17.54
(exc. VAT)
£21.05
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 197 unit(s), ready to ship
Units | Per unit |
---|---|
1 + | £17.54 |
*price indicative
- RS Stock No.:
- 257-7403
- Distrelec Article No.:
- 304-22-727
- Mfr. Part No.:
- 622282300300
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 230V ac | |
Contact Configuration | DPST | |
Mounting Type | PCB Mount | |
Switching Current | 16A | |
Number of Poles | 2 | |
Series | 62 | |
Latching | No | |
Maximum Switching Voltage AC | 400V ac | |
Maximum Switching Voltage DC | 220V dc | |
Maximum Switching Current AC | 120 A | |
Coil Power | 2.2W | |
Standards Met | cURus, EAC | |
Minimum Operating Temperature | -40°C | |
Life | 100000 Cycles | |
Isolation Coil To Contact | 6kV | |
Maximum Operating Temperature | +70°C | |
Contact Material | Silver Alloy | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 230V ac | ||
Contact Configuration DPST | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 2 | ||
Series 62 | ||
Latching No | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Current AC 120 A | ||
Coil Power 2.2W | ||
Standards Met cURus, EAC | ||
Minimum Operating Temperature -40°C | ||
Life 100000 Cycles | ||
Isolation Coil To Contact 6kV | ||
Maximum Operating Temperature +70°C | ||
Contact Material Silver Alloy | ||
Number of Coils Single | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
Finder Series 62 Power Relay, 230V AC Coil Voltage, 16A Switching Current - 622282300300
This power relay is a robust DPST device designed for automation applications. Operated at 230V AC, it features a compact PCB mount design, making it suitable for various electronic and electrical environments. With a maximum switching current of 16A and rated for 100,000 cycles, this relay ensures long-lasting performance across demanding applications.
Features & Benefits
• High voltage capability supports up to 400V AC and 220V DC
• Utilises AgSnO2 as contact material for enhanced durability
• Features a coil power rating of 2.2VA for efficient operation
• Provides reinforced insulation between coil and contacts for safety
• Single coil design simplifies installation and maintenance
• Maximum switching current of 120A ensures reliability under load
• Utilises AgSnO2 as contact material for enhanced durability
• Features a coil power rating of 2.2VA for efficient operation
• Provides reinforced insulation between coil and contacts for safety
• Single coil design simplifies installation and maintenance
• Maximum switching current of 120A ensures reliability under load
Applications
• Ideal for industrial furnaces, boilers, and burners
• Suitable for managing electric power in control panels
• Commonly used in road and tunnel lighting systems
• Applicable in circuit breakers and industrial motor controls
• Works effectively with punches, cleaners, and sanding machines
• Suitable for managing electric power in control panels
• Commonly used in road and tunnel lighting systems
• Applicable in circuit breakers and industrial motor controls
• Works effectively with punches, cleaners, and sanding machines
What benefits does the use of AgSnO2 contact material provide?
The AgSnO2 contact material enhances durability and improves the relays performance under high current loads, significantly increasing its lifespan and reliability in demanding applications.
How does the insulation between the coil and contacts contribute to safety?
Reinforced insulation, with a clear distance of 6mm and creepage distance of 8mm, reduces the risk of electrical faults, ensuring safe operation in environments exposed to potential voltage spikes.
What is the significance of the relay's rated life of 100,000 cycles?
A rated life of 100,000 cycles indicates the relays ability to perform consistently over an extended period, making it a dependable choice for continuous operation in various applications.
Can this relay handle inductive loads without issue?
Yes, the power relay is designed to manage inductive loads effectively, making it suitable for various motor control and automation tasks where inductive switching is required.
What are the performance characteristics at different temperatures?
This relay operates effectively within a temperature range of -40°C to +70°C, ensuring reliable functionality in extreme environmental conditions commonly found in industrial settings.
