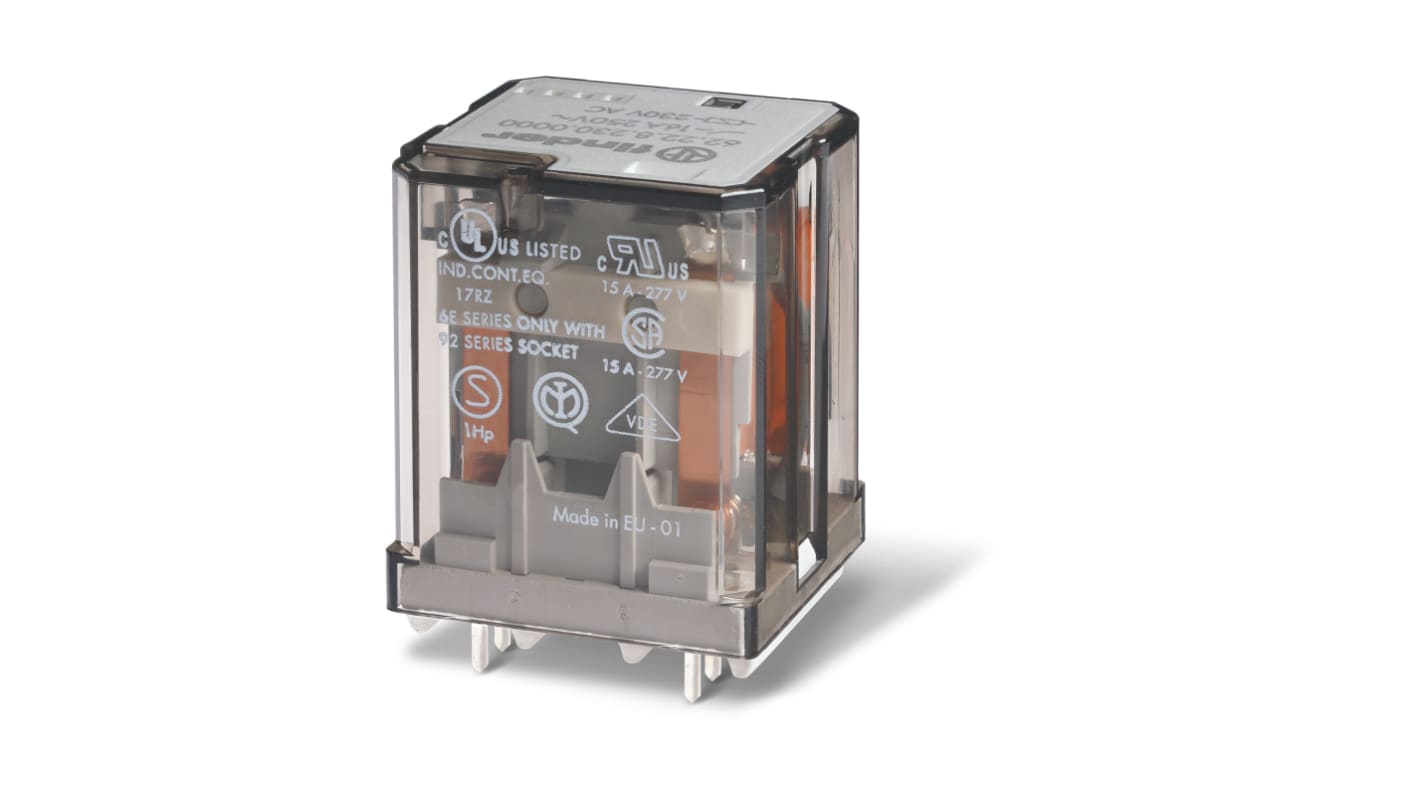

Finder PCB Power Relay Module, 230V ac Coil, 16A Switching Current, 2 NO
- RS Stock No.:
- 248-2487
- Mfr. Part No.:
- 622282304300
- Brand:
- Finder
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£19.12
(exc. VAT)
£22.94
(inc. VAT)
- RS Stock No.:
- 248-2487
- Mfr. Part No.:
- 622282304300
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Power Relay Module | |
| Coil Voltage | 230V ac | |
| Contact Configuration | 2 NO | |
| Mount Type | PCB | |
| Series | 62 | |
| Terminal Type | Screw | |
| Switching Current | 16A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Coil Resistance | 5kΩ | |
| Maximum Operating Temperature | 50°C | |
| Height | 53.1mm | |
| Coil Power | 3VA | |
| Length | 38.2mm | |
| Width | 35.8mm | |
| Standards/Approvals | CSA, EAC | |
| Contact Material | Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Power Relay Module | ||
Coil Voltage 230V ac | ||
Contact Configuration 2 NO | ||
Mount Type PCB | ||
Series 62 | ||
Terminal Type Screw | ||
Switching Current 16A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Coil Resistance 5kΩ | ||
Maximum Operating Temperature 50°C | ||
Height 53.1mm | ||
Coil Power 3VA | ||
Length 38.2mm | ||
Width 35.8mm | ||
Standards/Approvals CSA, EAC | ||
Contact Material Silver Tin Oxide | ||
- COO (Country of Origin):
- IT
The Finder's PCB mount power relay from 62 series are used in applications like road or tunnel lighting, industrial furnaces, burners, boilers, ovens, circuit breakers, control and management of electric power etc. This relay has 2 (NO) poles, while the coil voltage is 230 Vac. This relay is rated for 250 Vac.
Standard version relay from 62 series
It comes with AgSnO2 contacts (Cadmium free)
