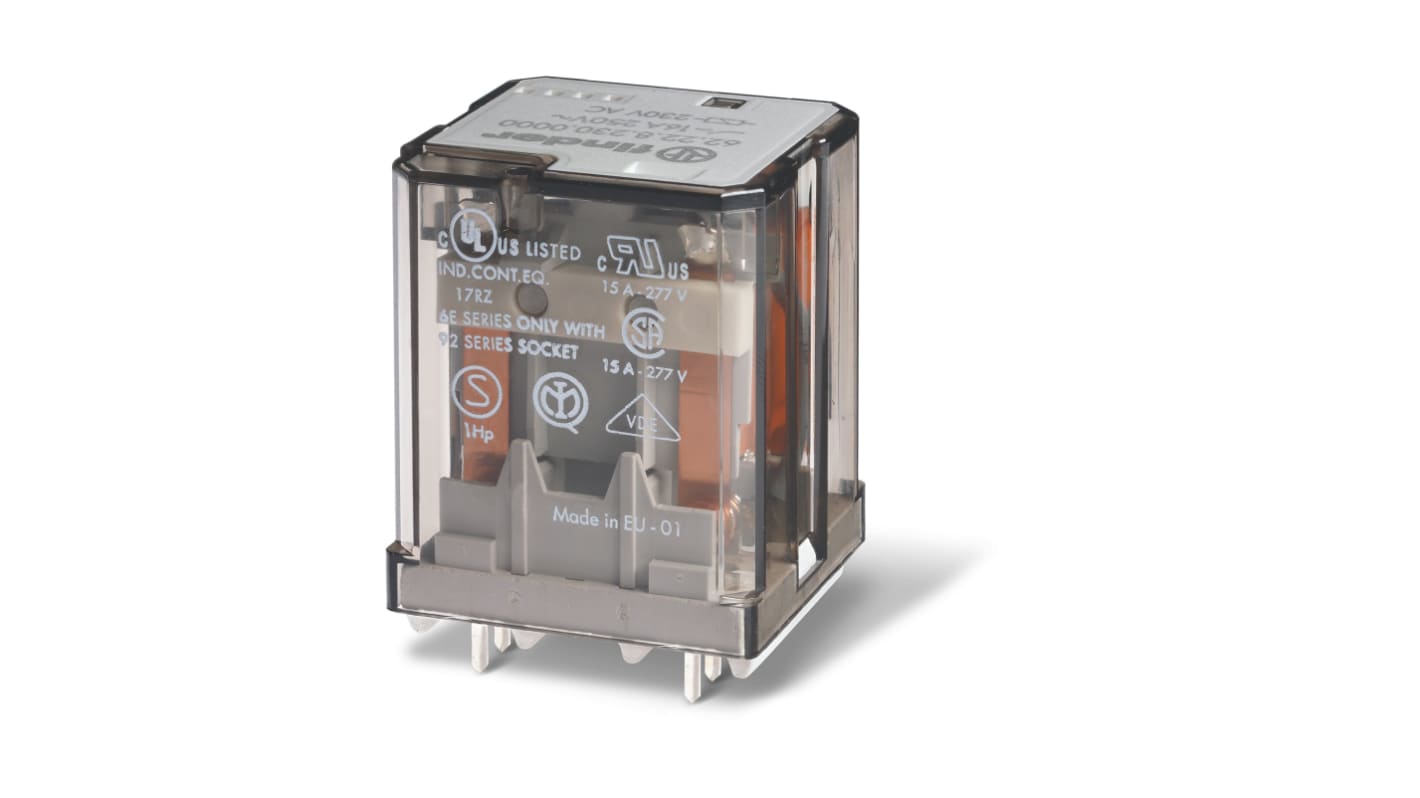

Finder PCB Power Relay Module, 24V dc Coil, 16A Switching Current, 2 NO
- RS Stock No.:
- 248-2494
- Mfr. Part No.:
- 622290244300
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£178.96
(exc. VAT)
£214.75
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £17.896 | £178.96 |
*price indicative
- RS Stock No.:
- 248-2494
- Mfr. Part No.:
- 622290244300
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Power Relay Module | |
| Coil Voltage | 24V dc | |
| Contact Configuration | 2 NO | |
| Mount Type | PCB | |
| Series | 62 | |
| Terminal Type | Screw | |
| Switching Current | 16A | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 192Ω | |
| Maximum Operating Temperature | 50°C | |
| Height | 53.1mm | |
| Length | 38.2mm | |
| Coil Power | 3W | |
| Standards/Approvals | CSA, EAC | |
| Width | 35.8mm | |
| Contact Material | Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Power Relay Module | ||
Coil Voltage 24V dc | ||
Contact Configuration 2 NO | ||
Mount Type PCB | ||
Series 62 | ||
Terminal Type Screw | ||
Switching Current 16A | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 192Ω | ||
Maximum Operating Temperature 50°C | ||
Height 53.1mm | ||
Length 38.2mm | ||
Coil Power 3W | ||
Standards/Approvals CSA, EAC | ||
Width 35.8mm | ||
Contact Material Silver Tin Oxide | ||
- COO (Country of Origin):
- IT
The Finder's PCB mount power relay from 62 series are used in applications like road or tunnel lighting, industrial furnaces, burners, boilers, ovens, circuit breakers, control and management of electric power etc. This relay has 2 (NO) poles, while the coil voltage is 24 Vdc. This relay is rated for 250 Vac.
Standard version relay from 62 series
It comes with AgSnO2 contacts (Cadmium free)
