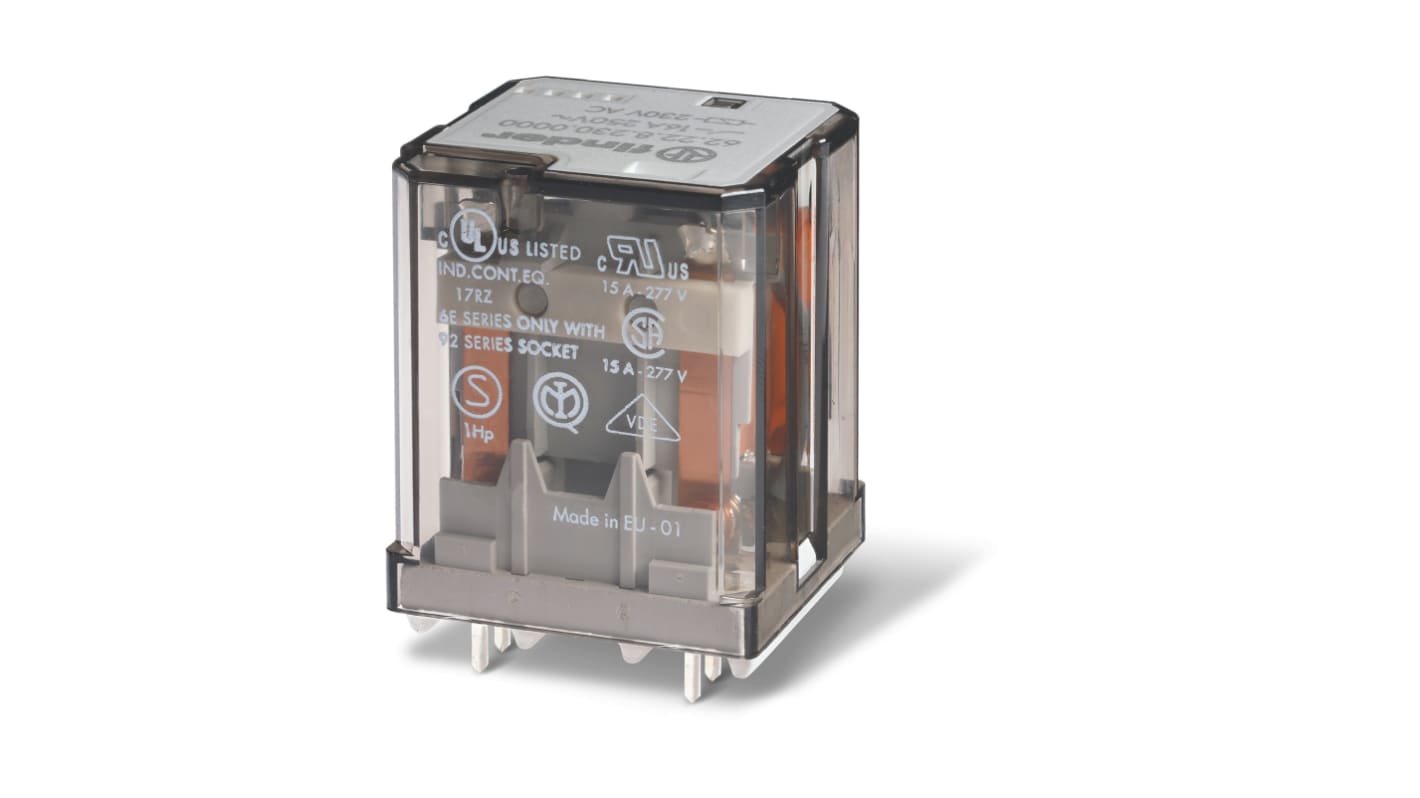

Finder PCB Power Relay Module, 24V ac Coil, 16A Switching Current, 2 CO
- RS Stock No.:
- 248-2478
- Mfr. Part No.:
- 622280240000
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£168.66
(exc. VAT)
£202.39
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £16.866 | £168.66 |
*price indicative
- RS Stock No.:
- 248-2478
- Mfr. Part No.:
- 622280240000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 24V ac | |
| Product Type | Power Relay Module | |
| Contact Configuration | 2 CO | |
| Mount Type | PCB | |
| Series | 62 | |
| Terminal Type | Screw | |
| Switching Current | 16A | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 74Ω | |
| Width | 35.8mm | |
| Standards/Approvals | CSA, EAC | |
| Coil Power | 2.2VA | |
| Length | 38.2mm | |
| Height | 53.1mm | |
| Contact Material | Silver Alloy Gold Plated | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 24V ac | ||
Product Type Power Relay Module | ||
Contact Configuration 2 CO | ||
Mount Type PCB | ||
Series 62 | ||
Terminal Type Screw | ||
Switching Current 16A | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 74Ω | ||
Width 35.8mm | ||
Standards/Approvals CSA, EAC | ||
Coil Power 2.2VA | ||
Length 38.2mm | ||
Height 53.1mm | ||
Contact Material Silver Alloy Gold Plated | ||
- COO (Country of Origin):
- IT
The Finder's PCB mount power relay from 62 series are used in applications like road or tunnel lighting, industrial furnaces, burners, boilers, ovens, circuit breakers, control and management of electric power etc. This relay has 2 (CO) poles, while the coil voltage is 24 Vac. This relay is rated for 250 Vac.
Standard version relay from 62 series
It comes with standard AgCdO contacts
