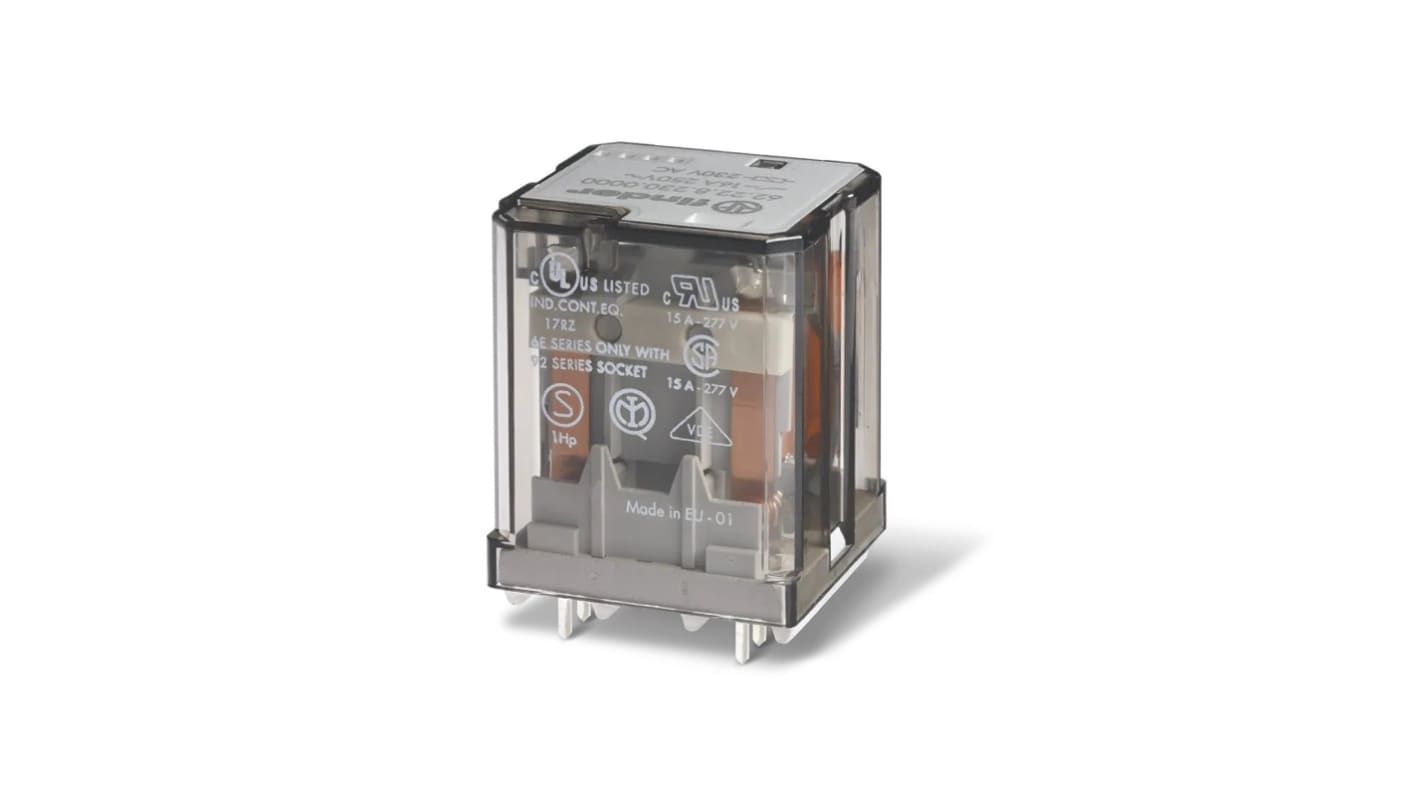

Finder PCB Mount Power Relay, 230V ac Coil, 16A Switching Current, 3PDT
- RS Stock No.:
- 282-6667
- Mfr. Part No.:
- 622382304000
- Brand:
- Finder
Subtotal (1 unit)*
£19.37
(exc. VAT)
£23.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £19.37 |
*price indicative
- RS Stock No.:
- 282-6667
- Mfr. Part No.:
- 622382304000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 230V ac | |
Contact Configuration | 3PDT | |
Mounting Type | PCB Mount | |
Switching Current | 16A | |
Number of Poles | 3 | |
Series | 62 | |
Maximum Switching Voltage AC | 400V ac | |
Maximum Switching Voltage DC | 220V dc | |
Maximum Switching Current AC | 120 A | |
Coil Power | 2.2W | |
Isolation Coil To Contact | 6kV | |
Contact Material | Silver Alloy | |
Maximum Operating Temperature | +70°C | |
Standards Met | cURus, EAC | |
Life | 100000 Cycles | |
Minimum Operating Temperature | -40°C | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 230V ac | ||
Contact Configuration 3PDT | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 3 | ||
Series 62 | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Current AC 120 A | ||
Coil Power 2.2W | ||
Isolation Coil To Contact 6kV | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature +70°C | ||
Standards Met cURus, EAC | ||
Life 100000 Cycles | ||
Minimum Operating Temperature -40°C | ||
Number of Coils Single | ||
- COO (Country of Origin):
- IT
Finder Series 62 Power Relay, 3PDT Contact Configuration, 230V AC Coil Voltage - 622382304000
This power relay is a robust 3PDT type designed for reliable operation at a coil voltage of 230V AC. With a switching capacity of up to 16A, it is ideal for a variety of industrial applications. The relay features a PCB mounting type, ensuring easy integration into control panels and electrical power management systems. It meets high voltage requirements with maximum switching voltages of 400V AC and 220V DC.
Features & Benefits
• Utilises AgSnO2 contact material for enhanced durability
• Single coil configuration with reinforced insulation for safety
• Designed for high durability with a mechanical life of 10 million cycles
• Operates effectively in extreme temperatures from -40°C to +70°C
• Maximum peak switching current of 120A for short durations
• Complies with international standards including cURus and EAC
• Single coil configuration with reinforced insulation for safety
• Designed for high durability with a mechanical life of 10 million cycles
• Operates effectively in extreme temperatures from -40°C to +70°C
• Maximum peak switching current of 120A for short durations
• Complies with international standards including cURus and EAC
Applications
• Suitable for road and tunnel lighting systems
• Utilised in industrial furnaces, ovens, and boilers
• Employed in control and management of electrical power
• Used in various tools like punches, cleaners, and planers
• Effective for industrial motor and circuit breakers
• Utilised in industrial furnaces, ovens, and boilers
• Employed in control and management of electrical power
• Used in various tools like punches, cleaners, and planers
• Effective for industrial motor and circuit breakers
What are the insulation properties of this relay?
The relay features reinforced insulation between the coil and the contacts, rated at 6kV. This ensures safety and compliance with standards like EN 60335-1.
How does the operating temperature range affect functionality?
With an ambient temperature range of -40°C to +70°C, it operates effectively in extreme conditions, making it suitable for diverse industrial environments.
What type of applications benefit from the rapid switching capacity?
The rapid switching capability caters to high-speed control requirements in applications such as automation systems and machinery where quick responsiveness is critical.
