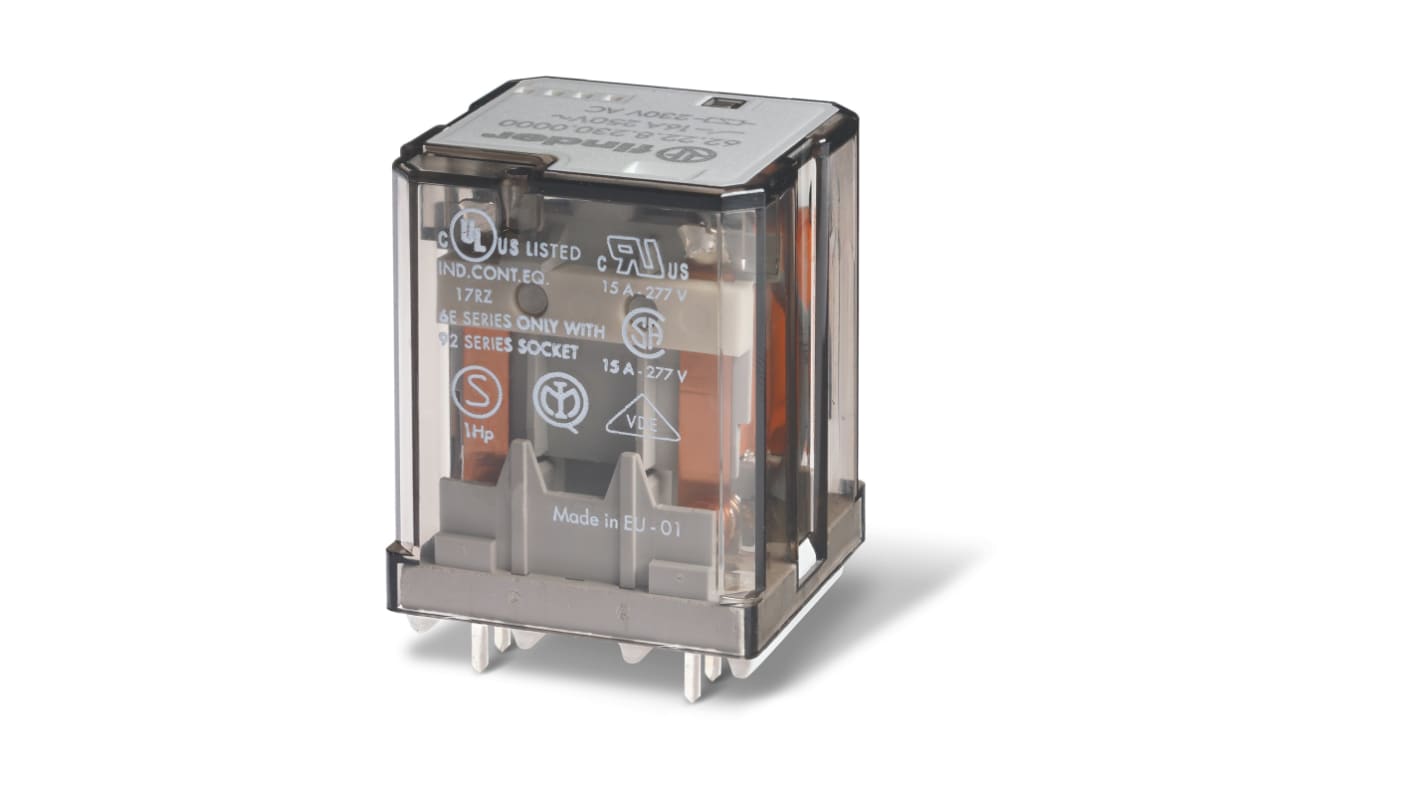

Finder PCB Power Relay Module, 120V ac Coil, 16A Switching Current, 3PDT
- RS Stock No.:
- 248-2504
- Mfr. Part No.:
- 622381200000
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£185.40
(exc. VAT)
£222.50
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £18.54 | £185.40 |
*price indicative
- RS Stock No.:
- 248-2504
- Mfr. Part No.:
- 622381200000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Power Relay Module | |
| Coil Voltage | 120V ac | |
| Contact Configuration | 3PDT | |
| Mount Type | PCB | |
| Series | 62 | |
| Terminal Type | Screw | |
| Switching Current | 16A | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 1.9kΩ | |
| Standards/Approvals | CSA, EAC | |
| Length | 38.2mm | |
| Coil Power | 2.2VA | |
| Height | 53.1mm | |
| Width | 35.8mm | |
| Contact Material | Silver Alloy Gold Plated | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Power Relay Module | ||
Coil Voltage 120V ac | ||
Contact Configuration 3PDT | ||
Mount Type PCB | ||
Series 62 | ||
Terminal Type Screw | ||
Switching Current 16A | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 1.9kΩ | ||
Standards/Approvals CSA, EAC | ||
Length 38.2mm | ||
Coil Power 2.2VA | ||
Height 53.1mm | ||
Width 35.8mm | ||
Contact Material Silver Alloy Gold Plated | ||
The Finder's PCB mount power relay from 62 series are used in applications like road or tunnel lighting, industrial furnaces, burners, boilers, ovens, circuit breakers, control and management of electric power etc. This relay has 3 (CO) poles, while the coil voltage is 120 Vac. This relay is rated for 250 Vac.
Standard version relay from 62 series
It comes with standard AgCdO contacts
