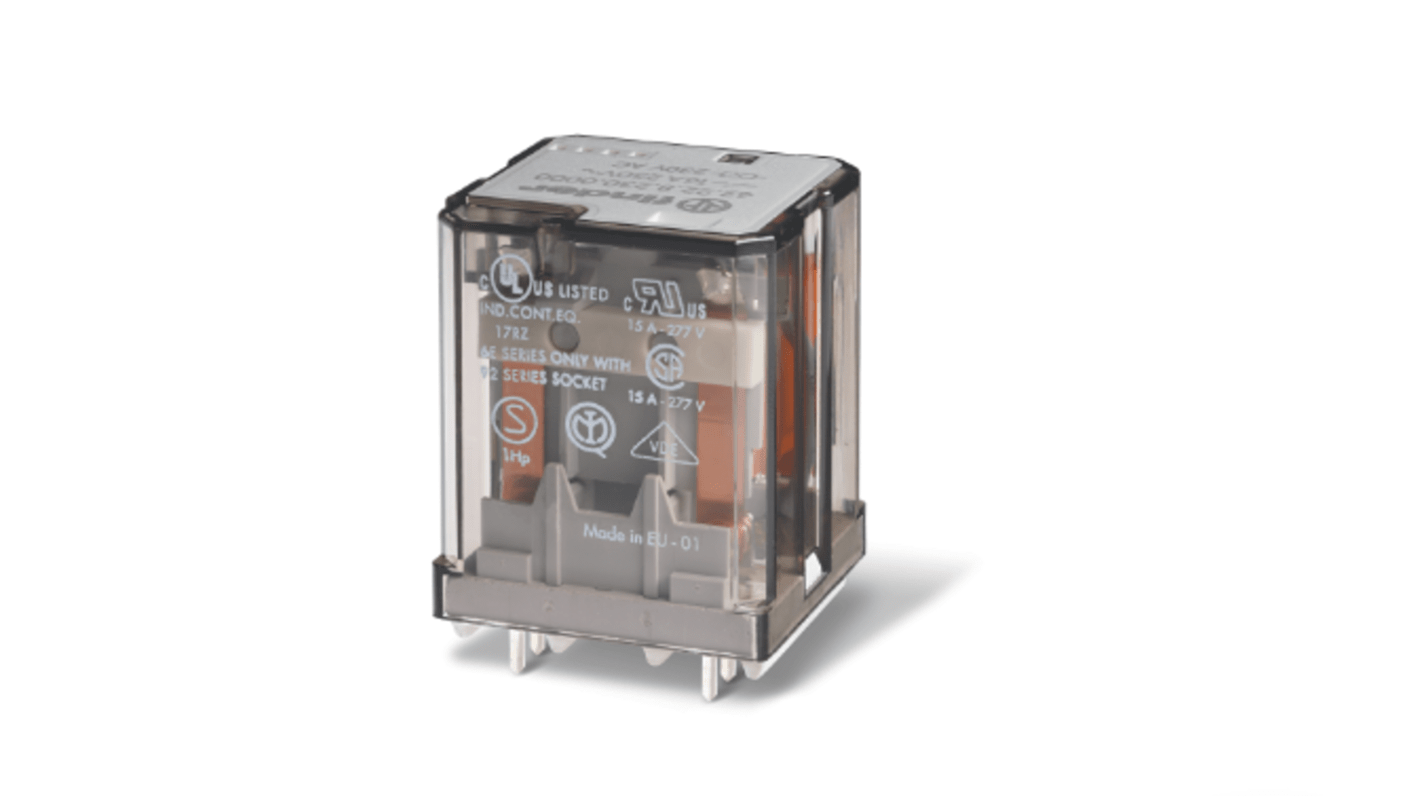

Finder PCB Power Relay, 230V ac Coil, 16A Switching Current
- RS Stock No.:
- 257-7402
- Mfr. Part No.:
- 622282300000
- Brand:
- Finder
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 257-7402
- Mfr. Part No.:
- 622282300000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 230V ac | |
| Product Type | Power Relay | |
| Mount Type | PCB | |
| Series | 62 | |
| Switching Current | 16A | |
| Switching AC Voltage | 400V ac | |
| Coil Resistance | 7.3kΩ | |
| Width | 35.8mm | |
| Length | 38.2mm | |
| Height | 53.1mm | |
| Coil Power | 2.2VA | |
| Standards/Approvals | UKCA, CSA, ENEC 03, CE, EAC | |
| Contact Material | Silver Alloy Gold Plated | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 230V ac | ||
Product Type Power Relay | ||
Mount Type PCB | ||
Series 62 | ||
Switching Current 16A | ||
Switching AC Voltage 400V ac | ||
Coil Resistance 7.3kΩ | ||
Width 35.8mm | ||
Length 38.2mm | ||
Height 53.1mm | ||
Coil Power 2.2VA | ||
Standards/Approvals UKCA, CSA, ENEC 03, CE, EAC | ||
Contact Material Silver Alloy Gold Plated | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
Finder Series 62 Power Relay, 230V AC Coil Voltage, 16A Switching Current - 622282300000
This power relay is designed to operate at a coil voltage of 230V AC, making it suitable for high voltage applications. It features a DPDT configuration which allows for versatile control in various industrial environments. The relay also supports PCB mounting, ensuring easy integration into control panels or other electronic systems.
Features & Benefits
• Supports a maximum switching current of 16A for robust performance
• Incorporates AgSnO2 relay contacts for high durability and reliability
• Offers reinforced insulation between coil and contacts for safety
• Operates efficiently across a temperature range of -40°C to +70°C
• Designed to achieve a lifespan of 100,000 cycles for long-term use
• Provides a dielectric strength of 6kV between coil and contact
Applications
• Utilised in road and tunnel lighting systems
• For control and management of electric power in industrial settings
• Employed in burners, boilers, and furnaces for reliable operations
• Suitable for industrial motors and control panels
• Fits a variety of devices requiring a reliable relay switch
What is the significance of using AgSnO2 contacts in this relay?
The use of AgSnO2 contacts enhances the relay's durability, allowing it to handle higher peak currents and extend the contact life under load conditions.
How does the relay ensure safety during operation?
Reinforced insulation between the coil and contacts, along with a high dielectric strength of 6kV, effectively prevents electrical failures and ensures safe performance.
What are the operational limits regarding temperature and voltage?
This relay operates within a temperature range of -40°C to +70°C and can switch up to 400V AC and 220V DC, making it suitable for demanding environments.
Can the relay be integrated into automated systems?
Yes, its PCB mount design allows for easy integration into automated systems, providing versatile control capabilities for various applications.
