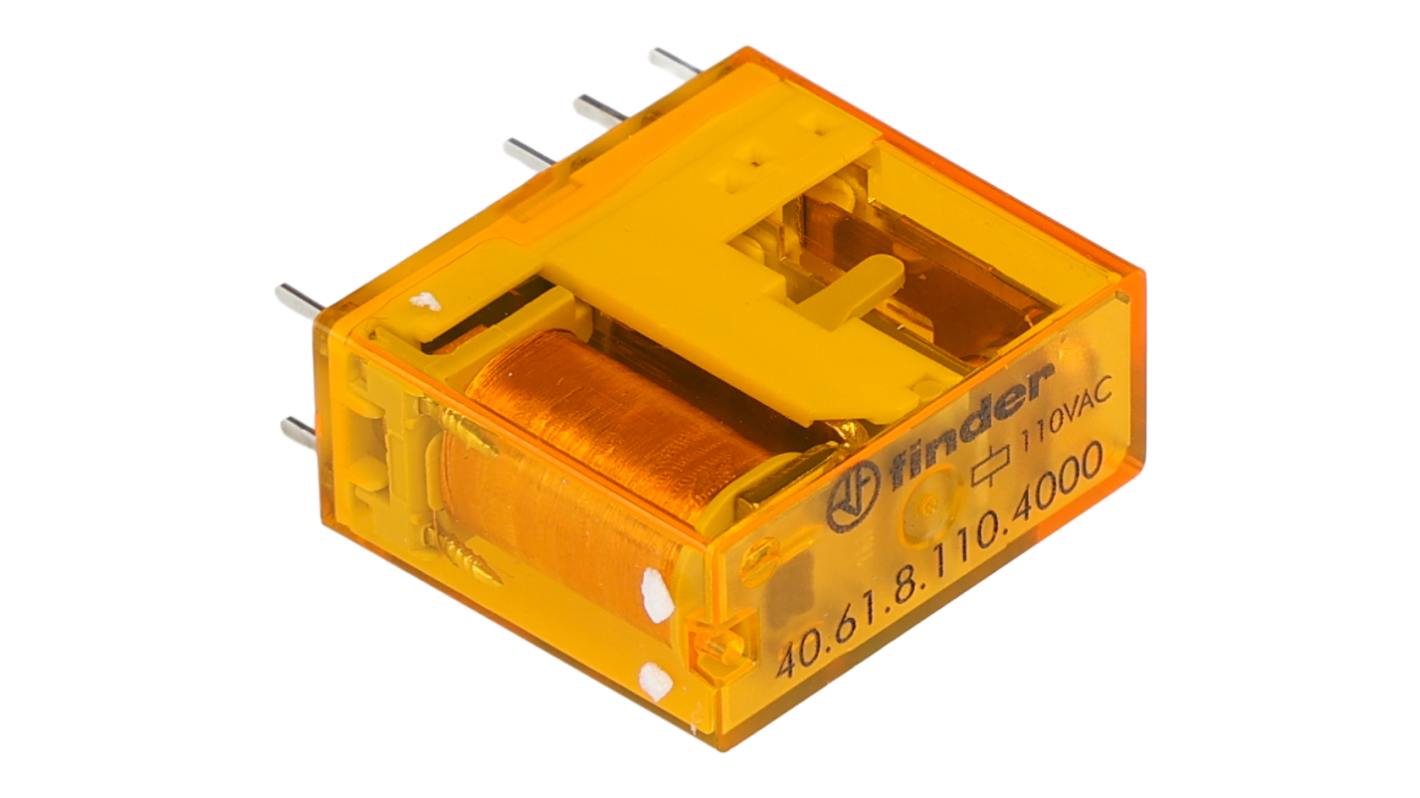

Finder PCB Power Relay, 110V ac Coil, 16A Switching Current, SPDT

View all Power Relays

Subtotal (1 unit)*

£8.79

(exc. VAT)

£10.55

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 48 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£8.79

*price indicative

RS Stock No.:
282-6645
Mfr. Part No.:
406181104000
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Product Type

Power Relay

Coil Voltage

110V ac

Contact Configuration

SPDT

Mount Type

PCB

Series

40

Switching Current

16A

Switching AC Voltage

400V ac

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Coil Resistance

6.9kΩ

Height

25mm

Standards/Approvals

No

Width

12.4mm

Coil Power

0.5W

Length

29mm

Contact Material

Silver Tin Oxide

Finder Series 40 Power Relay, 110V AC Coil Voltage, SPDT Contact Configuration - 406181104000


This power relay is a miniature PCB mount relay designed for efficient switching in various applications. Operating at 240V AC, it features a single pole double throw (SPDT) configuration, making it suitable for both AC and DC relay switching. The relay can handle a maximum switching current of 16A and a voltage rating of 400V AC, ensuring reliable performance in demanding environments.

Features & Benefits


• Delivers high voltage performance with a maximum switching voltage of 400V AC

• Single coil design enables quick and efficient operation

• Exceptional isolation of 6kV between coil and contact enhances safety

• Built with AgNi contact material ensuring durability and efficiency

• Compact PCB mount structure simplifies installation in tight spaces

• Rated for an operating temperature range from -40°C to +85°C, suitable for extreme conditions

Applications


• Ideal for control panels in medical and dental environments

• Effective in automation for blinds, grilles, and shutters

• Utilised in vending machines to manage electronic functions

• Suitable for door and gate openers requiring reliable switching

• Fits seamlessly into electronic circuit boards for smart devices

What is the maximum current this relay can handle?


The relay can handle a maximum switching current of 16A, with a higher peak current capacity of up to 30A in specific applications.

Can this relay be used in outdoor or extreme conditions?


Yes, it operates efficiently within a temperature range of -40°C to +85°C, making it suitable for various environmental settings.

What material is used for the contacts, and why is it important?


The contacts are made from AgNi material, providing durability and effective conductivity, which is essential for consistent performance in switching applications.

How does the isolation rating benefit my circuit?


The 6kV isolation between the coil and contacts provides a high level of safety against voltage spikes and electrical interference, protecting sensitive components.

Is this relay suitable for both AC and DC switching applications?


Yes, this relay is designed for versatile usage, supporting both AC and DC relay switching scenarios effectively.
