Finder PCB Mount Power Relay, 110V ac Coil, 16A Switching Current, SPDT

View all Power Relays
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Finder PCB Mount Power Relay, 110V ac Coil, 16A Switching Current, SPDT
RS Stock No.
282-6645

Each

£8.79

(exc. VAT)

£10.55

(inc. VAT)

RS Stock No.:
511-1262
Mfr. Part No.:
40.61.8.110.0000
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

110V ac

Contact Configuration

SPDT

Mounting Type

PCB Mount

Switching Current

16A

Number of Poles

1

Latching

No

Series

40 Series

Terminal Type

Through Hole

Maximum Switching Voltage AC

400V ac

Maximum Switching Voltage DC

125V dc

Maximum Switching Current AC

30 A

Length

29mm

Coil Resistance

6900Ω

Coil Power

1.2W

Height

25mm

Maximum Operating Temperature

+85°C

Contact Material

Silver Alloy

Life

10000000 (Electrical) cycles

Isolation Coil To Contact

6kV

Standards Met

cURus, EAC

Depth

12.4mm

Minimum Operating Temperature

-40°C

Number of Coils

Single

Maximum Switching Power AC

4 kVA

Application

PCB

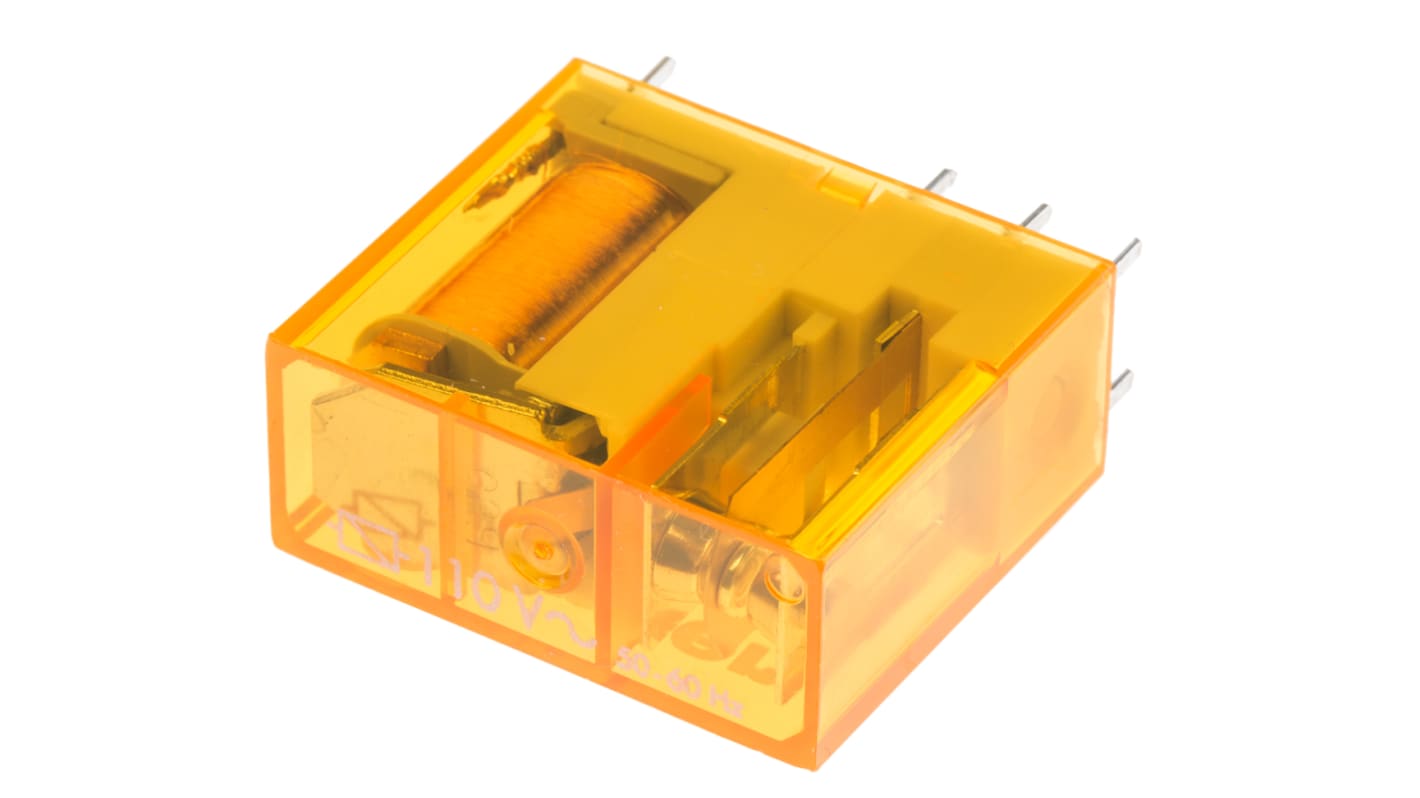

Finder 40 Series Power Relay, 110V AC Coil Voltage, 16A Switching Current - 40.61.8.110.0000


This power relay is designed for reliable performance in various automation and electrical applications. It operates at a coil voltage of 110V AC and has an SPDT configuration, suitable for PCB mounting. Compact in size with dimensions of 29mm x 12.4mm x 25mm, it effectively handles up to 16A with a maximum switching voltage of 400V AC, ensuring flexibility in use.

Features & Benefits


• The relay features high insulation between the coil and contacts at 6kV
• Capable of sustaining electrical lifespans of 10 million cycles
• Functions efficiently within an operating temperature range of -40°C to +85°C
• Equipped with a through-hole terminal type for secure PCB connections
• Ensures both AC and DC switching capabilities with robust performance
• Meets safety standards including cURus and EAC for diverse applications

Applications


• Used for automation in blinds, grilles and shutters
• Incorporated in control panels for medical and dental equipment
• Employed in electronic circuit boards for vending machines
• Suitable for door and gate opening mechanisms
• Utilised in panels for electrical distribution systems

How does this relay maintain performance under extreme temperatures?


The design allows operation in a wide temperature range of -40°C to +85°C, ensuring consistent functionality under varying environmental conditions caused by applications like circuitry in automatic systems.

What is the importance of the isolation rating in this relay?


An isolation rating of 6kV safeguards sensitive circuits from voltage spikes, ensuring durability and reliability in critical applications. This helps prevent damage to connected components and enhances the overall safety of the system.

Can this relay be used for both AC and DC applications?


Yes, it supports both AC and DC switching. This dual capability makes it highly versatile for numerous applications in automation and electrical engineering fields.

What defines the electrical capacity of this component?


It supports a maximum switching current of 30A and a power rating of 4kVA, making it suitable for high-load applications while ensuring efficient power management.
