MPN

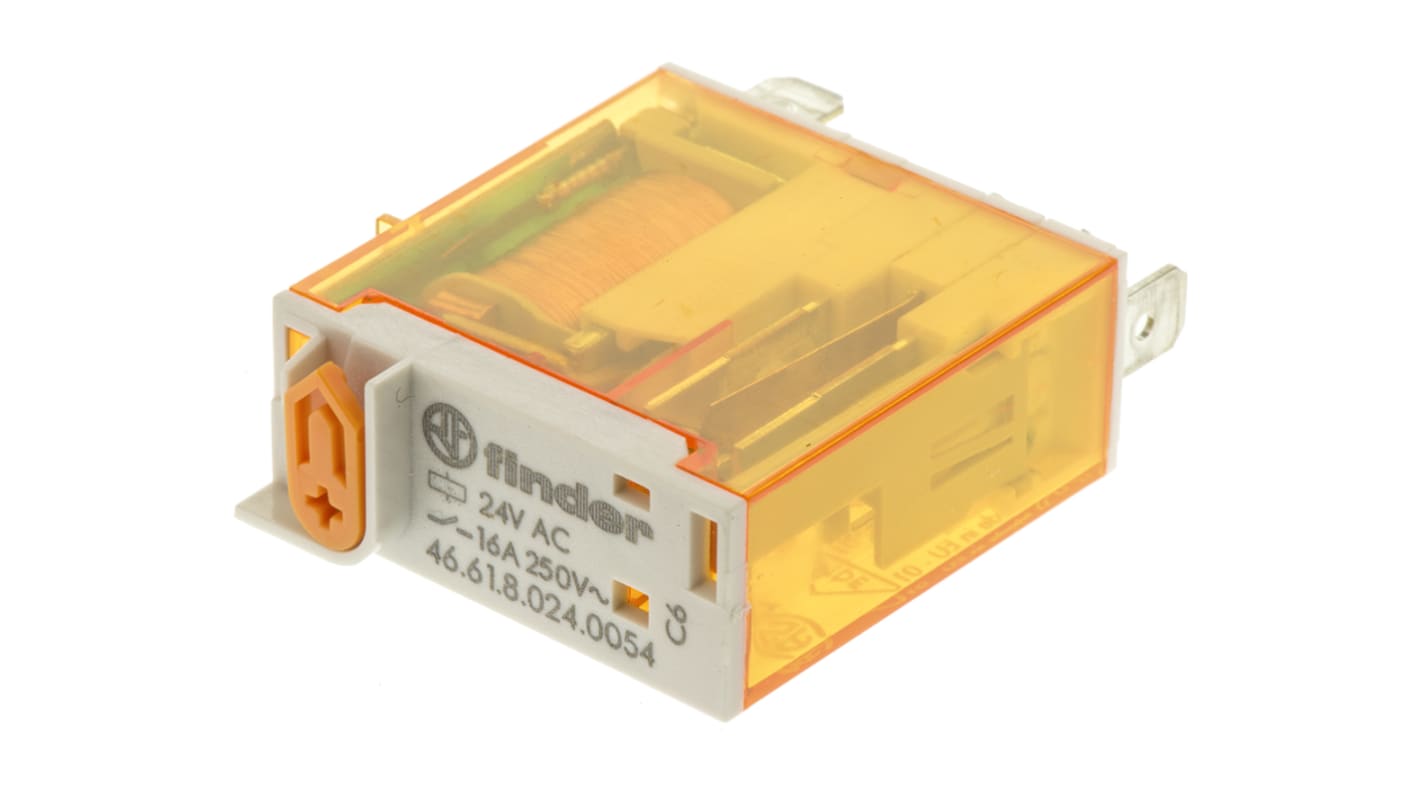

Finder PCB Mount Power Relay, 24V ac Coil, 16A Switching Current, SPDT

RS Stock No.:: 534-5285
Mfr. Part No.:: 46.61.8.024.0054
Brand:: Finder

Finder PCB Mount Power Relay, 24V ac Coil, 16A Switching Current, SPDT

Bulk discount available

Subtotal (1 unit)*

£10.46

(exc. VAT)

£12.55

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

159 unit(s) ready to ship
Plus 29 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£10.46
5 - 9	£10.12
10 +	£9.71

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Finder Plug In Power Relay, 24V ac Coil, 16A Switching Current, SPDT

RS Stock No.: 508-5551

Each

£8.82

(exc. VAT)

£10.58

(inc. VAT)

RS Stock No.:: 534-5285
Mfr. Part No.:: 46.61.8.024.0054
Brand:: Finder

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	24V ac
	Contact Configuration	SPDT
	Mounting Type	PCB Mount
	Switching Current	16A
	Number of Poles	1
	Series	46 Series
	Latching	No
	Terminal Type	Quick Connect
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	125V dc
	Maximum Switching Current AC	25 A
	Length	29mm
	Coil Resistance	320Ω
	Coil Power	1.2W
	Minimum Operating Temperature	-40°C
	Life	100000 Cycles
	Contact Material	Silver Alloy
	Isolation Coil To Contact	6kV
	Maximum Operating Temperature	+70°C
	Depth	12.4mm
	Height	32.8mm
	Standards Met	cURus, EAC
	Maximum Switching Power AC	4 kVA
	Number of Coils	Single
	Application	General Purpose

	Select all
	Brand Finder
	Coil Voltage 24V ac
	Contact Configuration SPDT
	Mounting Type PCB Mount
	Switching Current 16A
	Number of Poles 1
	Series 46 Series
	Latching No
	Terminal Type Quick Connect
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 125V dc
	Maximum Switching Current AC 25 A
	Length 29mm
	Coil Resistance 320Ω
	Coil Power 1.2W
	Minimum Operating Temperature -40°C
	Life 100000 Cycles
	Contact Material Silver Alloy
	Isolation Coil To Contact 6kV
	Maximum Operating Temperature +70°C
	Depth 12.4mm
	Height 32.8mm
	Standards Met cURus, EAC
	Maximum Switching Power AC 4 kVA
	Number of Coils Single
	Application General Purpose

Finder 46 Series Power Relay, 24V AC Coil Voltage, 16A Switching Current - 46.61.8.024.0054

This power relay is a miniature industrial relay designed for versatile applications across various sectors. With a compact footprint of 29mm in length, 32.8mm in height, and 12.4mm in depth, it is well-suited for PCB mount installations. Tailored for general-purpose use, this model offers superior performance with a coil voltage of 24V AC and a switching current capacity of 16A.

Features & Benefits

• Designed as a single pole double throw (SPDT) relay
• Supports quick connect terminal type for easy installation
• Robust switching capacity with 250V AC and 125V DC maximum voltage
• High reliability with a lifespan of 100,000 cycles
• Excellent insulation between coil and contact rated at 6kV
• Operative in extreme temperatures ranging from -40°C to +70°C

Applications

• Used in automation for blinds and shutters
• Ideal for control panels and electrical distribution systems
• Commonly applied in road and tunnel lighting systems
• Suitable for lifts and elevator control mechanisms
• Effective in bottling plants and crane operations

What is the significance of the switching current capacity in this relay?

The high switching current capacity of 16A ensures that it can control significant loads, making it suitable for demanding applications where reliable operation is essential.

How does the isolation rating impact the relay's performance?

The 6kV isolation rating between the coil and the contact enhances safety by protecting against electrical surges, thus increasing the relay's reliability in harsh environments.

What makes the quick connect terminal advantageous for users?

The quick connect terminal streamlines the installation process, reducing assembly time and ensuring secure connections, which is beneficial in high-efficiency settings.

Can this relay be utilised in outdoor applications?

Yes, the wide operating temperature range from -40°C to +70°C allows for outdoor use in varied environmental conditions, making it versatile across different applications.

Approvals

UL recognised
