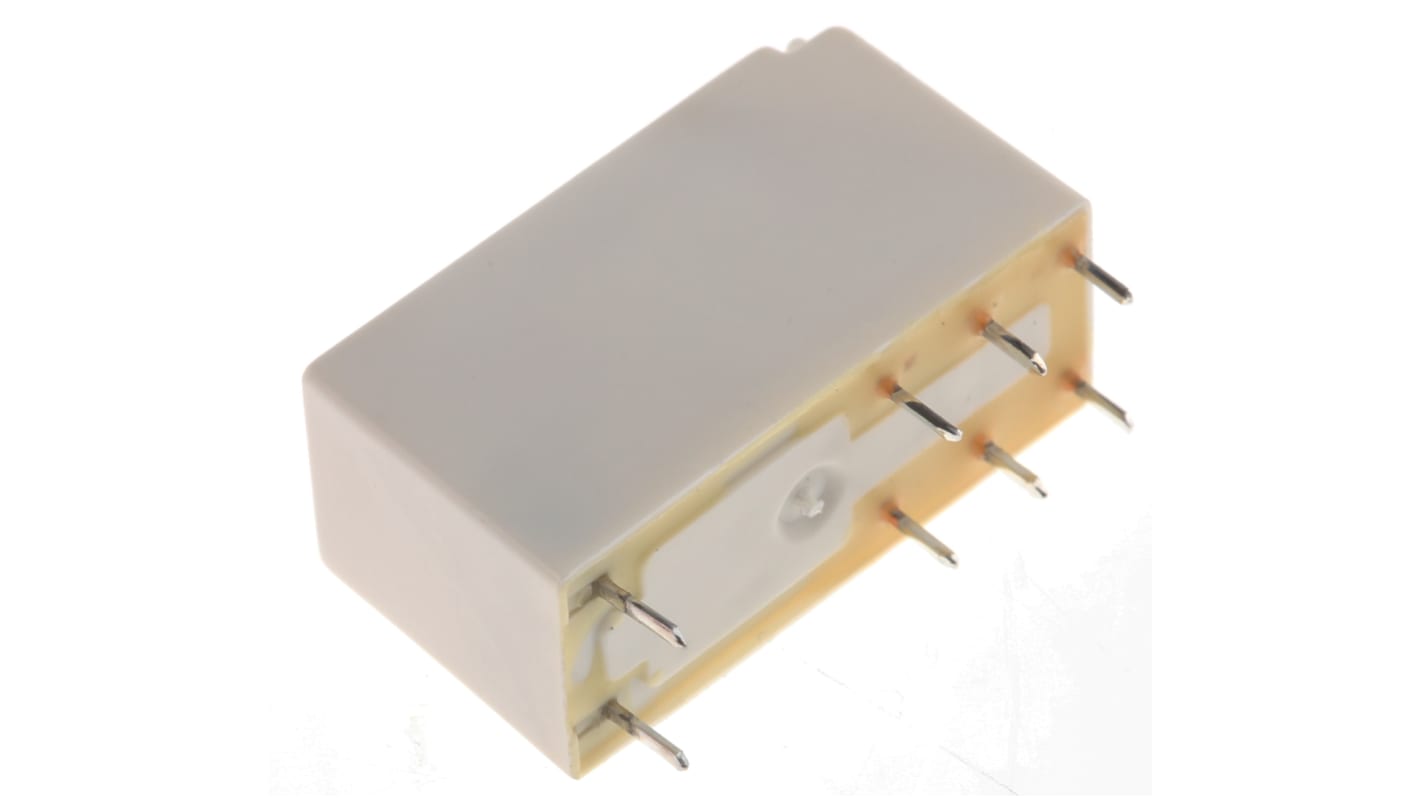

Finder PCB Mount Power Relay, 24V dc Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 163-653
- Distrelec Article No.:
- 137-44-377
- Mfr. Part No.:
- 41.61.9.024.0010
- Brand:
- Finder
Save 35% when you buy 250 units
Subtotal (1 unit)*
£6.31
(exc. VAT)
£7.57
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 131 unit(s) shipping from 01 October 2025
- Plus 174 unit(s) shipping from 01 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 24 | £6.31 |
25 - 49 | £5.56 |
50 - 99 | £5.39 |
100 - 249 | £4.92 |
250 + | £4.09 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£5.57
(exc. VAT)
£6.68
(inc. VAT)
- RS Stock No.:
- 163-653
- Distrelec Article No.:
- 137-44-377
- Mfr. Part No.:
- 41.61.9.024.0010
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V dc | |
Contact Configuration | SPDT | |
Mounting Type | PCB Mount | |
Switching Current | 16A | |
Number of Poles | 1 | |
Latching | No | |
Series | 41 Series | |
Terminal Type | Through Hole | |
Length | 29mm | |
Coil Resistance | 1440Ω | |
Coil Power | 400mW | |
Depth | 12.5mm | |
Maximum Operating Temperature | +85°C | |
Height | 15.7mm | |
Minimum Operating Temperature | -40°C | |
Contact Material | Silver Alloy | |
Maximum Switching Power AC | 4 kVA | |
Application | Power | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Latching No | ||
Series 41 Series | ||
Terminal Type Through Hole | ||
Length 29mm | ||
Coil Resistance 1440Ω | ||
Coil Power 400mW | ||
Depth 12.5mm | ||
Maximum Operating Temperature +85°C | ||
Height 15.7mm | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 4 kVA | ||
Application Power | ||
- COO (Country of Origin):
- ES
Finder 41 series Power Relay, 24V DC Coil Voltage, 16A Switching Current - 41.61.9.024.0010
This power relay is a versatile switching relay designed for efficient control in various electrical applications. Featuring a compact PCB mount relay configuration, it operates at a coil voltage of 24V DC while providing a high switching current rating of 16A. Built to endure harsh environmental conditions, it operates between -40 to +85 °C, ensuring reliable performance in various settings.
Features & Benefits
• SPDT configuration enables flexible switching in circuits
• Through-hole design simplifies PCB installation and maintenance
• Silver alloy contacts enhance conductivity and reduce wear
• Operates at a maximum switching voltage of 400V AC
• Robust mechanical life rating of 50,000 cycles assures durability
• Suitable for a wide array of applications including automation and control systems
• Through-hole design simplifies PCB installation and maintenance
• Silver alloy contacts enhance conductivity and reduce wear
• Operates at a maximum switching voltage of 400V AC
• Robust mechanical life rating of 50,000 cycles assures durability
• Suitable for a wide array of applications including automation and control systems
Applications
• Ideal for building automation and control systems
• Suitable for electronic circuit boards in industrial robots
• Preferred in timers and lighting control setups
• Commonly used in vending machine
• Effective in door and gate opener mechanisms
• Suitable for electronic circuit boards in industrial robots
• Preferred in timers and lighting control setups
• Commonly used in vending machine
• Effective in door and gate opener mechanisms
What is the significance of the SPDT configuration in use?
The SPDT configuration allows for versatile control, providing a single pole with a common terminal to switch between two circuits, which is crucial for various automation tasks.
How does the max switching voltage impact its application?
The maximum switching voltage of 400V AC means it can handle high voltage applications, making it suitable for industrial environments where circuits may experience significant voltage fluctuations.
What environmental conditions can this relay withstand?
With an operational temperature range of -40 to +85 °C, it can function reliably in extreme conditions, ensuring consistent performance in both cold and hot environments.
What makes the silver alloy contacts advantageous?
The use of silver alloy contacts improves conductivity, offering lower resistance and reducing heat generation, which helps in extending the relay's life and efficiency in switching tasks.
How does the mechanical life rating influence reliability?
The mechanical life rating of 50,000 cycles indicates the relay's durability, ensuring minimal maintenance and higher reliability for long-term use in demanding applications.
