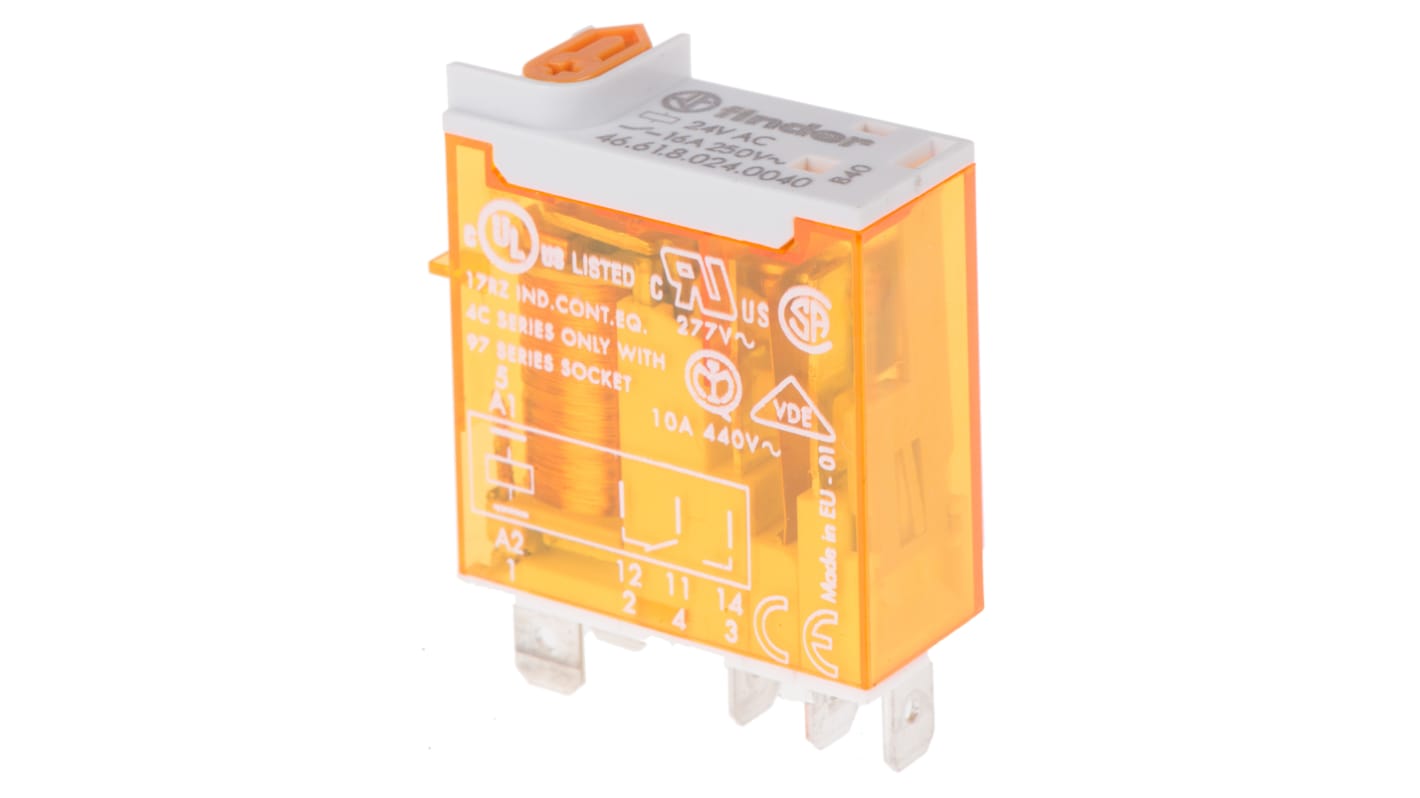

Finder Plug In Power Relay, 24V ac Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 508-5551
- Distrelec Article No.:
- 137-44-385
- Mfr. Part No.:
- 46.61.8.024.0040
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£8.82
(exc. VAT)
£10.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 237 unit(s) ready to ship
- Plus 84 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £8.82 |
5 - 9 | £8.55 |
10 + | £8.18 |
*price indicative
- RS Stock No.:
- 508-5551
- Distrelec Article No.:
- 137-44-385
- Mfr. Part No.:
- 46.61.8.024.0040
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V ac | |
Contact Configuration | SPDT | |
Mounting Type | Plug In | |
Switching Current | 16A | |
Number of Poles | 1 | |
Series | 46 Series | |
Latching | No | |
Terminal Type | Quick Connect | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 16V | |
Length | 29mm | |
Coil Resistance | 320Ω | |
Coil Power | 1.2W | |
Height | 32.8mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +70°C | |
Isolation Coil To Contact | 6kV | |
Life | 100000 Cycles | |
Contact Material | Silver Alloy | |
Depth | 12.4mm | |
Maximum Switching Power AC | 4 kVA | |
Dimensions | 12.4x32.8x29 | |
Application | General Purpose | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V ac | ||
Contact Configuration SPDT | ||
Mounting Type Plug In | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Series 46 Series | ||
Latching No | ||
Terminal Type Quick Connect | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 16V | ||
Length 29mm | ||
Coil Resistance 320Ω | ||
Coil Power 1.2W | ||
Height 32.8mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +70°C | ||
Isolation Coil To Contact 6kV | ||
Life 100000 Cycles | ||
Contact Material Silver Alloy | ||
Depth 12.4mm | ||
Maximum Switching Power AC 4 kVA | ||
Dimensions 12.4x32.8x29 | ||
Application General Purpose | ||
- COO (Country of Origin):
- IT
Finder 46 Series Power Relay, 24V AC Coil Voltage, 16A Switching Current - 46.61.8.024.0040
This power relay is a versatile 24V AC relay ideal for various industrial applications. Compact in size with dimensions of 12.4mm x 32.8mm x 29mm, this specific relay boasts a robust contact configuration, making it suitable for a wide range of uses.
Features & Benefits
• Quick connect terminals provide quick installation
• Handles a switching current of up to 16A
• High isolation rating of 6 kV safeguards circuits
• Rated for a maximum switching voltage of 250V AC
• Designed for general-purpose automation tasks
• Handles a switching current of up to 16A
• High isolation rating of 6 kV safeguards circuits
• Rated for a maximum switching voltage of 250V AC
• Designed for general-purpose automation tasks
Applications
• Used in control panels for electrical distribution
• Suitable for the lifts and elevators
• Ideal for use in shipyards and hoisting equipment
• Enhances efficiency in bottling plant operations
• Applicable in tunnel and road lighting systems
• Suitable for the lifts and elevators
• Ideal for use in shipyards and hoisting equipment
• Enhances efficiency in bottling plant operations
• Applicable in tunnel and road lighting systems
How does the maximum switching power affect diverse applications?
The maximum switching power of 4kVA allows the relay to effectively control a variety of loads, making it suitable for applications where higher power handling is required, such as in industrial machinery.
What type of environments can accommodate this relay?
The relay's operating temperature range of -40°C to +70°C enables it to function efficiently in both extremely cold and hot environments. Its design is particularly robust for industrial settings.
What methods are available for connecting this relay?
This relay features plug-in capabilities with quick-connect terminals, allowing for straightforward installations and easy replacements in existing setups. This facilitates maintenance and reduces downtime.
What factors contribute to the relay's long operational life?
A life expectancy of 100,000 cycles is supported by the use of AgNi contact material, which ensures excellent conductivity and minimal wear, making it dependable for repeated operations in demanding conditions.
Can this relay be used for both AC and DC applications?
While primarily designed for AC coils, this model fits well within the general-purpose realm and can manage specific DC configurations effectively, suitable for diverse electronic applications.
Approvals
UL recognised
