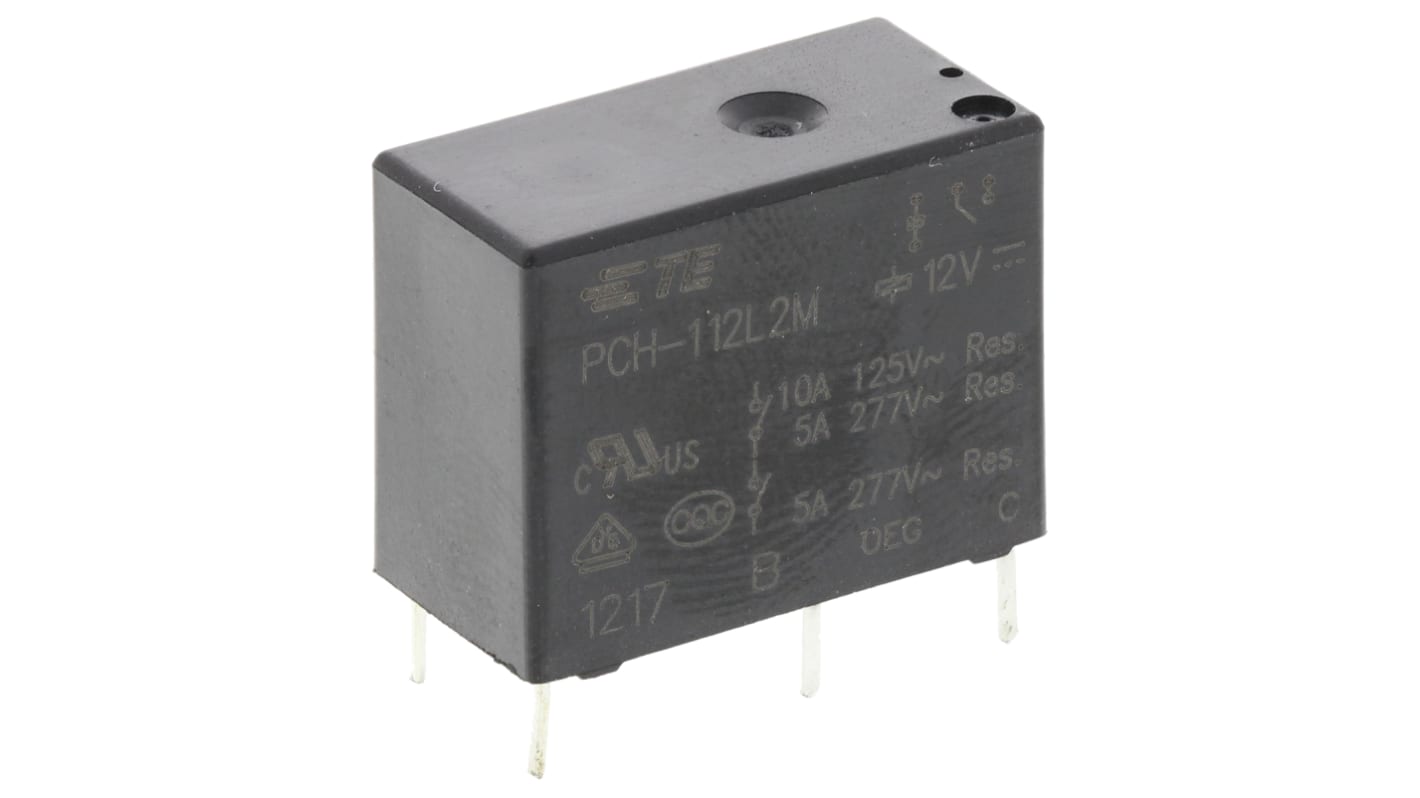

TE Connectivity PCB Power Relay, 12V Coil, 10A Switching Current, 1 NO
- RS Stock No.:
- 533-0867
- Mfr. Part No.:
- PCH-112L2M
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 533-0867
- Mfr. Part No.:
- PCH-112L2M
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Power Relay | |
| Coil Voltage | 12V | |
| Contact Configuration | 1 NO | |
| Mount Type | PCB | |
| Series | PCH | |
| Terminal Type | Through Hole | |
| Switching Current | 10A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 30V dc | |
| Switching Power | 150W | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 720Ω | |
| Height | 15mm | |
| Length | 20mm | |
| Width | 10mm | |
| Coil Power | 200mW | |
| Standards/Approvals | CQC08001023449, VDE 119568, UL E82292, RoHS | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Power Relay | ||
Coil Voltage 12V | ||
Contact Configuration 1 NO | ||
Mount Type PCB | ||
Series PCH | ||
Terminal Type Through Hole | ||
Switching Current 10A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 30V dc | ||
Switching Power 150W | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 720Ω | ||
Height 15mm | ||
Length 20mm | ||
Width 10mm | ||
Coil Power 200mW | ||
Standards/Approvals CQC08001023449, VDE 119568, UL E82292, RoHS | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- CN
TE Connectivity Miniature PCB Relay - PCH Series
PCH series miniature PCB through hole mount relays with SPST and SPDT AgSnO2 contacts. These miniature PCB through hole mount relays have washtight, sealed plastic covers apart from stock numbers 533-0867, 533-0867 and 533-0873 which have flux proof vented covers. PCB relays with SPST contacts have a senstive 200mW coil. Typical applications for these PCH series PCB relays include HVAC, refrigerators and microwave ovens.
High surge voltage capacity; 8000V (1.2/50μs)
Ambient temperature; -30 to +85°C
Contact rating: 5A @ 250Vac (IEC 61810), 10 A @ 125 Vac (UL 508)
Contact material; AgSnO
Dimensions (mm); H 15.2, W 9.9, D19.8
Approvals
UL; CSA; VDE
