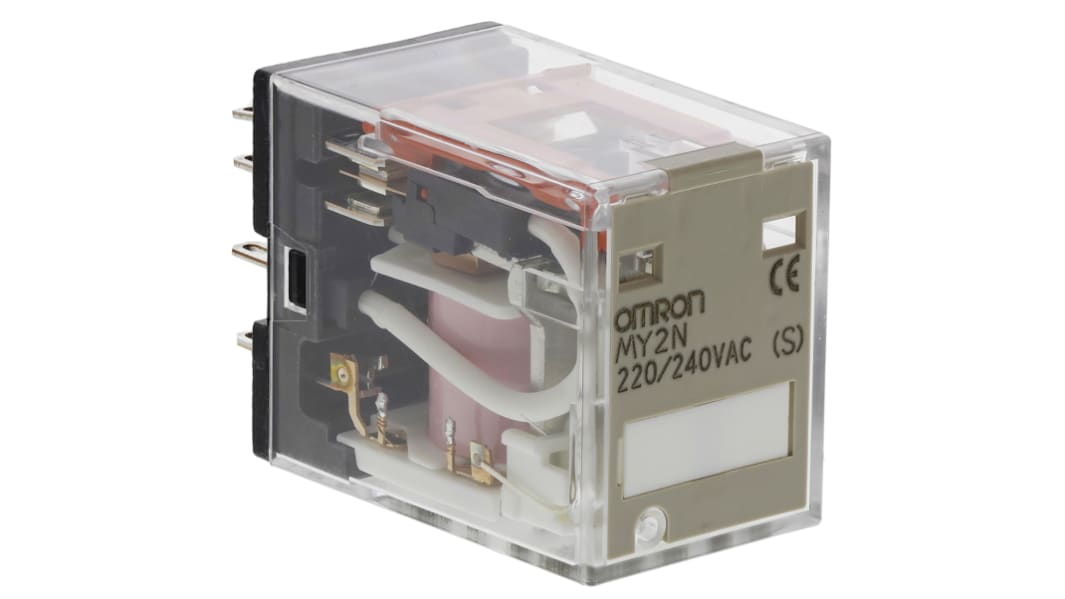

Omron DIN Rail Power Relay, 240V ac Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 488-1948
- Mfr. Part No.:
- MY2N AC220/240(S)
- Brand:
- Omron
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£9.02
(exc. VAT)
£10.82
(inc. VAT)
- RS Stock No.:
- 488-1948
- Mfr. Part No.:
- MY2N AC220/240(S)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Power Relay | |
| Coil Voltage | 240V ac | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Series | MY | |
| Terminal Type | Plug-In | |
| Switching Current | 10A | |
| Minimum Operating Temperature | -55°C | |
| Switching AC Voltage | 250V ac | |
| Switching Power | 2.5kVA | |
| Switching DC Voltage | 30V dc | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 18.8kΩ | |
| Standards/Approvals | CE, CSA, LR, RoHS, UL, VDE | |
| Width | 21.5mm | |
| Length | 28mm | |
| Coil Power | 1.1W | |
| Height | 36mm | |
| Contact Material | Silver Alloy Gold Plated | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Power Relay | ||
Coil Voltage 240V ac | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Series MY | ||
Terminal Type Plug-In | ||
Switching Current 10A | ||
Minimum Operating Temperature -55°C | ||
Switching AC Voltage 250V ac | ||
Switching Power 2.5kVA | ||
Switching DC Voltage 30V dc | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 18.8kΩ | ||
Standards/Approvals CE, CSA, LR, RoHS, UL, VDE | ||
Width 21.5mm | ||
Length 28mm | ||
Coil Power 1.1W | ||
Height 36mm | ||
Contact Material Silver Alloy Gold Plated | ||
Contact Resistance 100mΩ | ||
MY Series
Switch power: 10A version: 1100W, 5A version 660W
Contact resistance: 100mΩ
Isolation coil to contact: 2000Vac
Operating temperature range: -55 to +70°C
Maximum switching voltage: 250Vac; 125Vdc
Contact material: AgNi
Dimensions: H42.4mm x W21.5mm x D28mm
Approvals
VDE, UL, CSA
