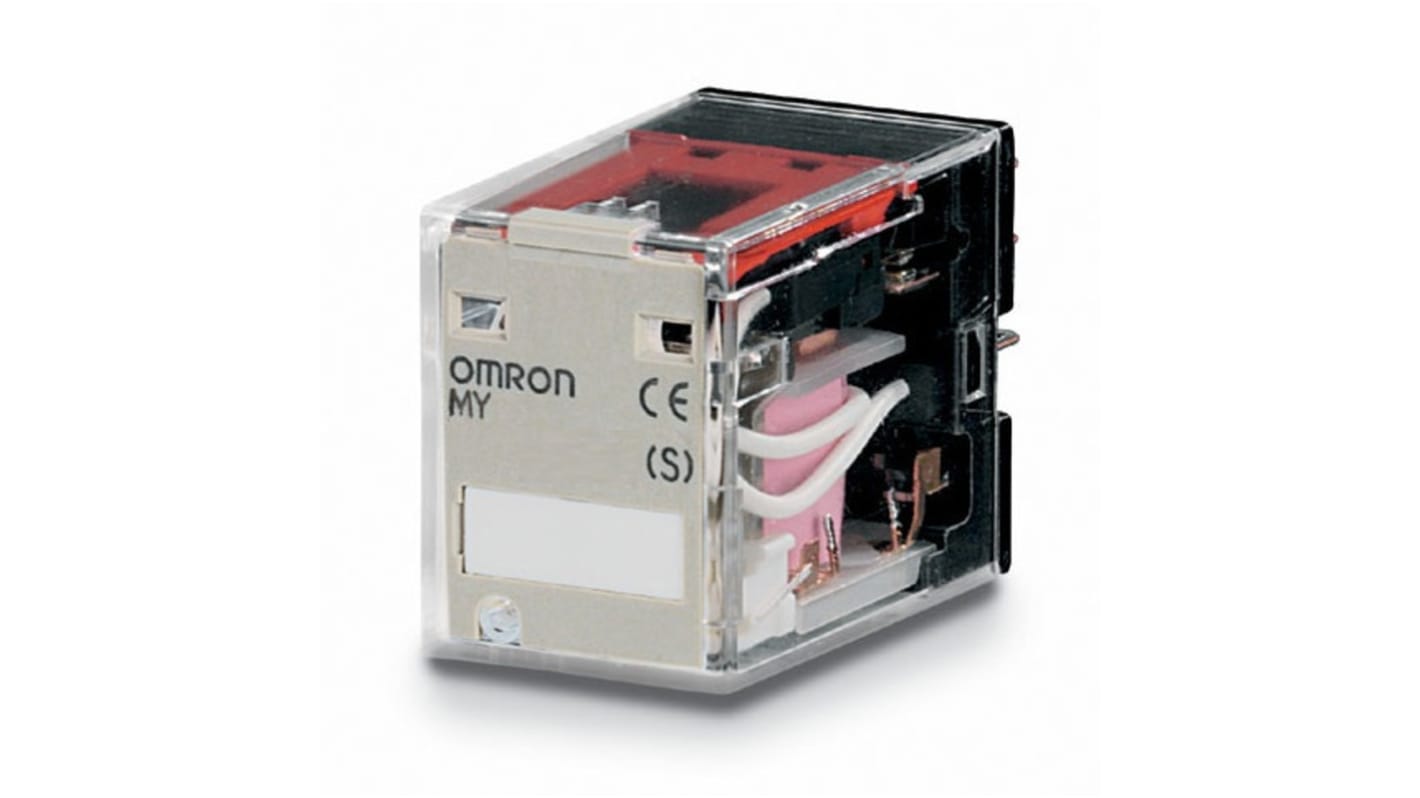

Omron Non-Latching Relay, 12V ac Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 215-7869
- Mfr. Part No.:
- MY2N AC12(S)
- Brand:
- Omron
Subtotal (1 unit)*
£7.76
(exc. VAT)
£9.31
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 3 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £7.76 |
*price indicative
- RS Stock No.:
- 215-7869
- Mfr. Part No.:
- MY2N AC12(S)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Non-Latching Relay | |
| Coil Voltage | 12V ac | |
| Contact Configuration | DPDT | |
| Series | MY | |
| Terminal Type | Plug-In | |
| Switching Current | 10A | |
| Switching DC Voltage | 125V dc | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -55°C | |
| Coil Resistance | 46Ω | |
| Maximum Operating Temperature | 70°C | |
| Coil Power | 1.3W | |
| Standards/Approvals | CE, RoHS, VDE | |
| Width | 17mm | |
| Length | 21.5mm | |
| Height | 28mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Non-Latching Relay | ||
Coil Voltage 12V ac | ||
Contact Configuration DPDT | ||
Series MY | ||
Terminal Type Plug-In | ||
Switching Current 10A | ||
Switching DC Voltage 125V dc | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -55°C | ||
Coil Resistance 46Ω | ||
Maximum Operating Temperature 70°C | ||
Coil Power 1.3W | ||
Standards/Approvals CE, RoHS, VDE | ||
Width 17mm | ||
Length 21.5mm | ||
Height 28mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
When 2157869 is no longer for sale, please see RS article 2711919 for the updated version in the new range of relays from Omron.
The Omron MY series versatile plug-in power relays, is an improved miniature power relays with many models for sequence control and power applications. It has a wide range of relay variations including ones with operation indicators, high-capacity capability, built-in diodes, etc. It reduces wiring work by 60% when combined with the PYF-PU push-in plus socket. Other optional features include test button (lockable), hermetically sealed and latching types.
It offers higher conductivity and less temperature increase
Note
This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.
