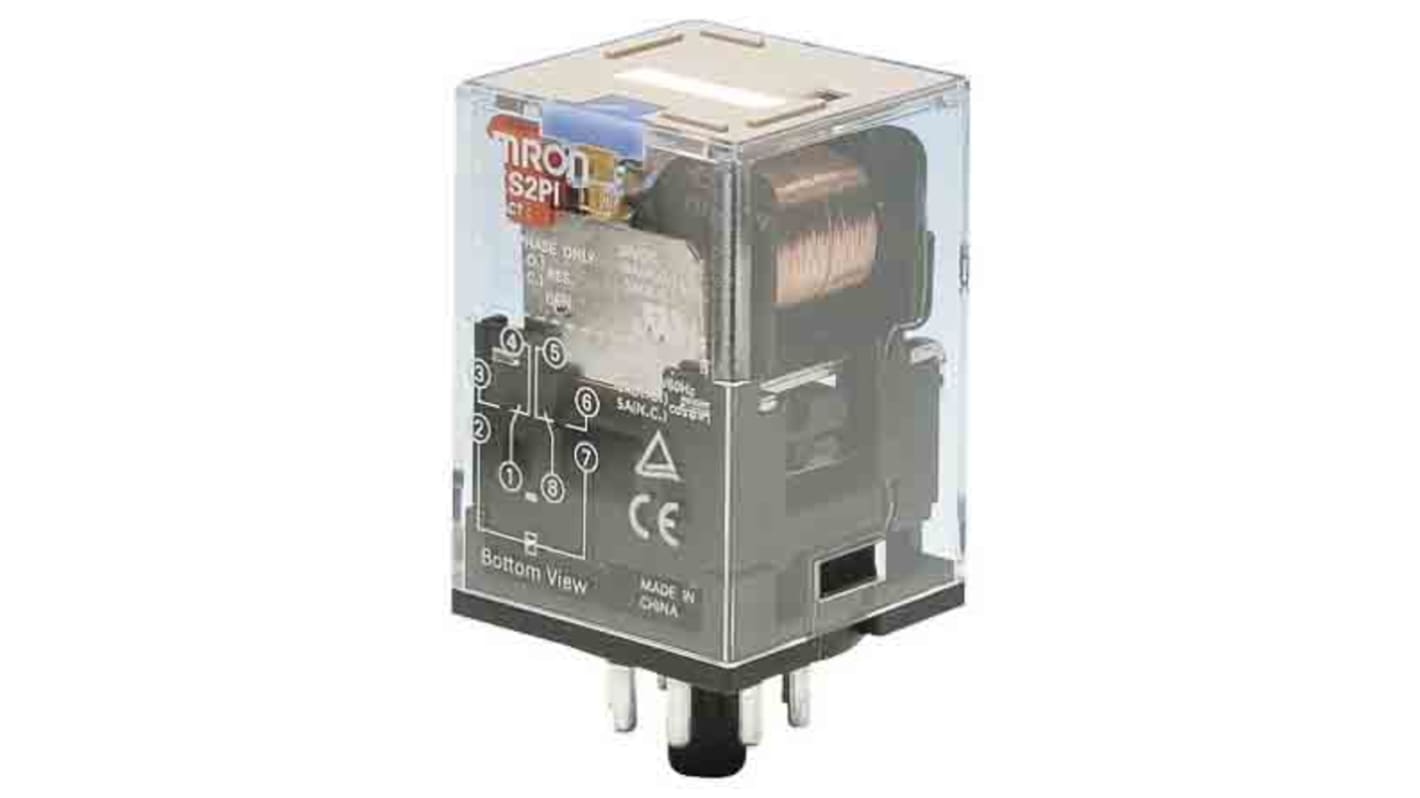

Omron Non-Latching Relay, 110V dc Coil, 10A Switching Current, DPDT

View all Power Relays

Subtotal (1 unit)*

£10.48

(exc. VAT)

£12.58

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
  • Plus 24 unit(s) shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£10.48

*price indicative

RS Stock No.:
215-7291
Mfr. Part No.:
MKS2PI 110VDC
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Product Type

Non-Latching Relay

Coil Voltage

110V dc

Contact Configuration

DPDT

Series

MKS

Terminal Type

Plug-In

Switching Current

10A

Switching DC Voltage

250V

Switching Power

150W

Minimum Operating Temperature

-40°C

Switching AC Voltage

250V

Maximum Operating Temperature

60°C

Coil Resistance

9kΩ

Length

52.5mm

Coil Power

1.4W

Height

34.5mm

Standards/Approvals

UL, RoHS, IEC

Width

34.5mm

Contact Material

Silver Tin Indium

Contact Resistance

100mΩ

Omron MKS Series Non-Latching Relay, 110V DC Coil Voltage, 10A Switching Current - MKS2PI 110VDC


This non-latching relay provides electrical switching for control and automation systems, designed to change contact states when its Coil is energised. It offers dual-pole changeover switching suitable for AC and DC circuits and is intended for plug-in mounting in industrial control panels and equipment.

Features and Benefits:


• 10A switching current supports moderate-load power distribution
• 250V switching capability handles common AC and DC voltages
• 150W switching power permits combined circuit loads
• Silver tin indium contacts reduce wear and ensure conductivity
• 1.4W Coil power delivers efficient electromagnetic actuation
• 8960Ω Coil resistance limits Coil current for stable operation

Applications


• Suitable for motor control relay stages in automation systems
• Ideal for changeover functions in control cabinets
• Used with distribution circuits requiring DPDT switching
• Can be used for signal routing in industrial machinery

What Terminal style facilitates installation into control systems?


It uses a plug-in Terminal arrangement that enables quick insertion and replacement on compatible sockets.

How does the relay perform across temperature extremes?


It is rated to operate between −40°C and 60°C, allowing use in cold stores and warm plant rooms.

Which approvals indicate adherence to recognised standards?


It meets UL, RoHS and IEC requirements for safety, material restrictions and international electrical standards.

What electrical contact resistance can be expected in operation?


Contact resistance is specified at 100mΩ, supporting a low voltage drop across engaged contacts.
