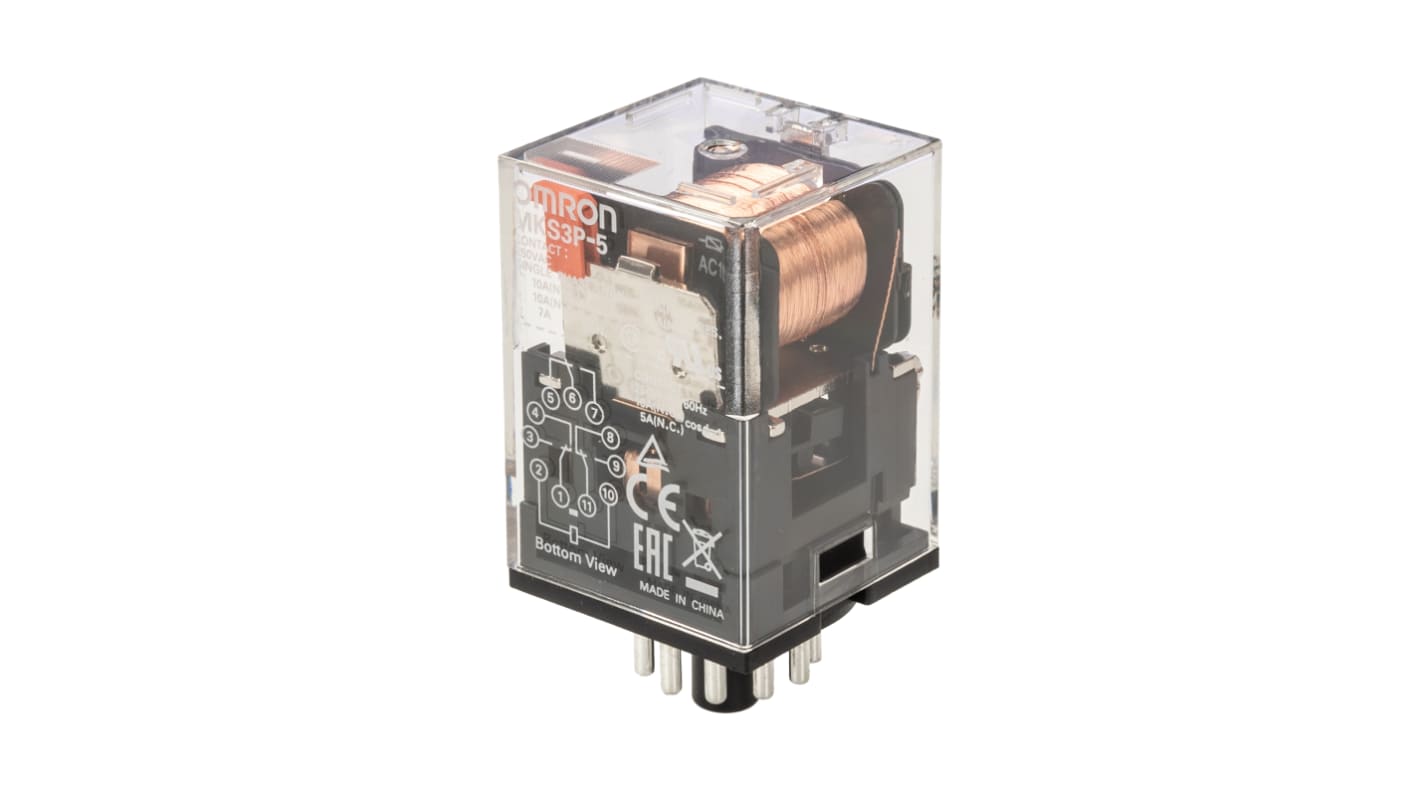

Omron Non-Latching Relay, 110V ac Coil, 10A Switching Current, 3PDT

View all Power Relays

Subtotal (1 unit)*

£11.72

(exc. VAT)

£14.06

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 66 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£11.72

*price indicative

RS Stock No.:
215-7864
Mfr. Part No.:
MKS3P-5 110VAC
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

110V ac

Product Type

Non-Latching Relay

Contact Configuration

3PDT

Series

MKS

Terminal Type

Plug-In

Switching Current

10A

Switching Power

150W

Switching DC Voltage

250V dc

Switching AC Voltage

250V ac

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

60°C

Coil Resistance

932Ω

Width

34.5mm

Standards/Approvals

UL, RoHS, IEC

Height

34.5mm

Length

52.5mm

Coil Power

2.3W

Contact Material

Silver Tin Indium

Contact Resistance

100mΩ

Omron MKS Series Non-Latching Relay, 3PDT Contact Configuration, 110V AC Coil Voltage - MKS3P-5 110VAC


This non-latching relay plays a crucial role in automation and control systems by effectively enabling or disabling circuits. Its specifications make it suitable for a wide range of applications in the electrical and mechanical industries, ensuring consistent performance under various conditions.

Features & Benefits


• 3PDT contact configuration allows for versatile switching

• Coil voltage rating of 110VAC ensures compatibility with standard systems

• Plug-in mounting type simplifies installation and replacement

• Handles a switching current of 10A for effective performance

• Constructed from RoHS-compliant materials for environmentally conscious usage

• Integrated mechanical indicator enables easy monitoring of contact operation

Applications


• Ideal for operation checks in relay sequence circuits

• Suitable for control panels requiring reliable switching

• Used in automation tasks within manufacturing processes

• Applicable in electrical circuits needing robust 10A switching capability

• Employed in industrial equipment to manage electrical loads

How do I ensure proper installation?


It is important to mount the unit correctly, with the markings at the bottom, to ensure optimal performance.

Can it be used in environments with high humidity?


Yes, it functions effectively within a humidity range of 5% to 85%.

What should I do if the relay does not activate?


Check the coil voltage to ensure it aligns with the specified rating as part of your troubleshooting process.

Is it safe to use with inductive loads?


While it can manage inductive loads, ensure you use the appropriate contact ratings for safety and performance.
