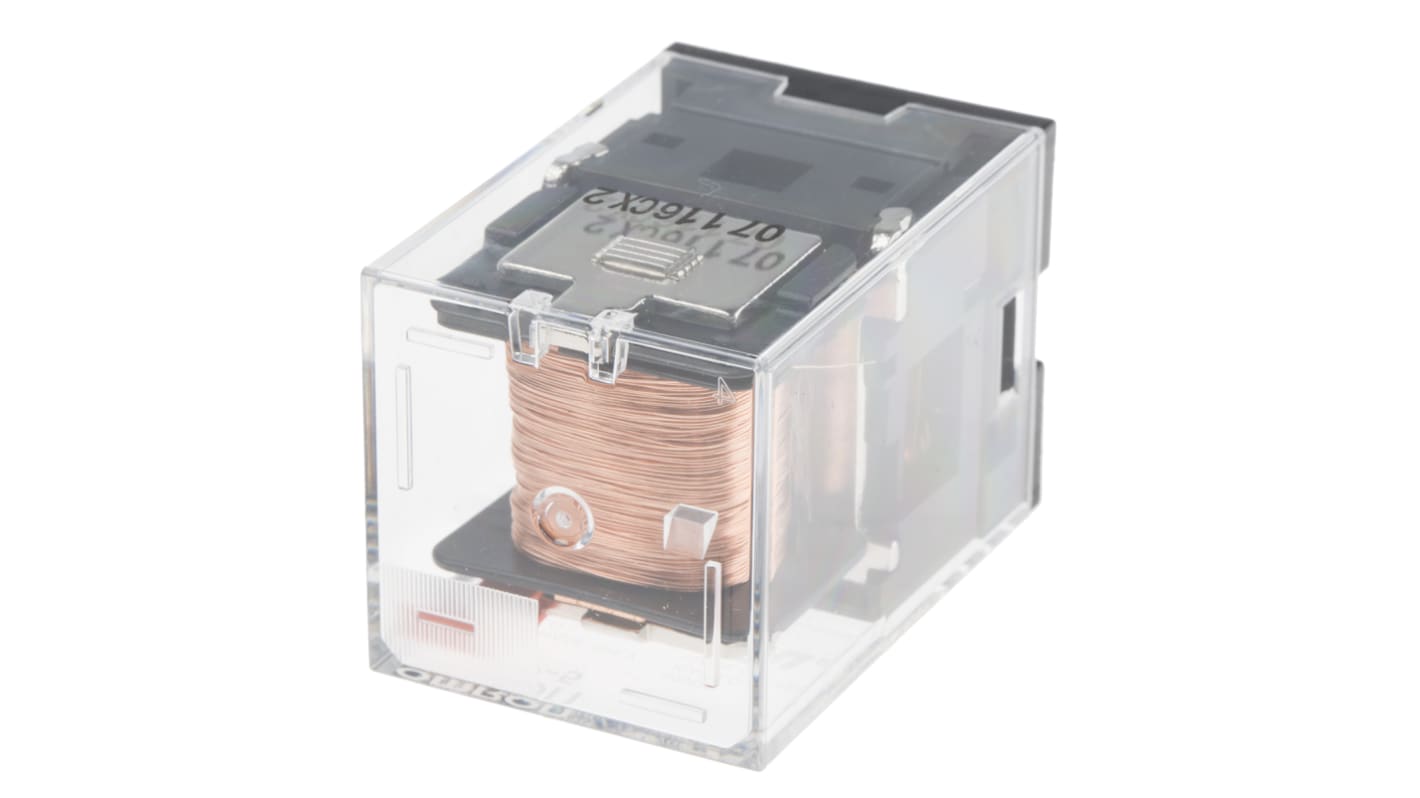

Omron Plug In Power Relay, 24V ac Coil, 10A Switching Current, 3PDT

RS Stock No.:: 827-8175
Mfr. Part No.:: MKS3P-5 24VAC
Brand:: Omron

Omron Plug In Power Relay, 24V ac Coil, 10A Switching Current, 3PDT

Bulk discount available

Subtotal (1 unit)*

£11.04

(exc. VAT)

£13.25

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

80 unit(s) shipping from 04 November 2025
Plus 120 unit(s) shipping from 18 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£11.04
5 - 9	£10.07
10 +	£9.60

*price indicative

RS Stock No.:: 827-8175
Mfr. Part No.:: MKS3P-5 24VAC
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	24V ac
	Contact Configuration	3PDT
	Mounting Type	Plug In
	Switching Current	10A
	Number of Poles	3
	Series	MKS
	Latching	No
	Terminal Type	Plug In
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	250V dc
	Maximum Switching Current AC	10 A
	Maximum Switching Current DC	10 A
	Length	34.5mm
	Coil Resistance	48.4Ω
	Coil Power	2.7W
	Height	34.5mm
	Minimum Operating Temperature	-40°C
	Contact Material	Silver Alloy
	Maximum Operating Temperature	+60°C
	Life	100000 (Electrical) Operations, 5000000 (Mechanical) Operations
	Depth	53.3mm
	Isolation Coil To Contact	2.5kV ac
	Maximum Switching Power DC	300 W
	Maximum Switching Power AC	2.5 kVA
	Application	General Purpose

	Select all
	Brand Omron
	Coil Voltage 24V ac
	Contact Configuration 3PDT
	Mounting Type Plug In
	Switching Current 10A
	Number of Poles 3
	Series MKS
	Latching No
	Terminal Type Plug In
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 250V dc
	Maximum Switching Current AC 10 A
	Maximum Switching Current DC 10 A
	Length 34.5mm
	Coil Resistance 48.4Ω
	Coil Power 2.7W
	Height 34.5mm
	Minimum Operating Temperature -40°C
	Contact Material Silver Alloy
	Maximum Operating Temperature +60°C
	Life 100000 (Electrical) Operations, 5000000 (Mechanical) Operations
	Depth 53.3mm
	Isolation Coil To Contact 2.5kV ac
	Maximum Switching Power DC 300 W
	Maximum Switching Power AC 2.5 kVA
	Application General Purpose

MK-S Datasheet

Omron Series MKS Power Relay, 24V AC Coil Voltage, 3PDT Contact Configuration - MKS3P-5 AC24

This power relay delivers high performance in automation and electrical applications. Designed with a compact footprint, it measures 34.5mm in both length and height and 53.3mm in depth. The relay operates at a coil voltage of 24V AC and offers an electrical switching current of 10A, making it suitable for general-purpose tasks in various sectors.

Features & Benefits

• 3PDT contact configuration for versatile switching options
• Plug-in type terminal makes installation simple
• Silver alloy contact material enhances durability
• High operating temperature range from -40°C to +60°C ensures reliability

Applications

• Used in automated sequence control systems
• Suitable for controlling lighting and HVAC systems
• Ideal for relaying signals in industrial machinery
• Used in motor control and electrical distribution networks

What are the maximum switching capabilities of this relay?

It supports a maximum switching voltage of 250V for both AC and DC, with a maximum switching power of 2.5kVA for AC and 300W for DC applications, enabling effective control in multiple setups.

How does the relay ensure safety during operation?

The isolation feature of 2.5kV AC between the coil and contacts provides robust protection against electrical disturbances, ensuring safe functionality.

What is the expected mechanical operation lifespan of this relay?

The relay boasts an impressive mechanical lifespan of up to 5 million operations, catering to demanding applications and reducing maintenance frequency.

Can it be integrated into existing automation systems easily?

The plug-in design allows for straightforward installation within existing electrical systems, facilitating quick upgrades or replacements in automation setups.
