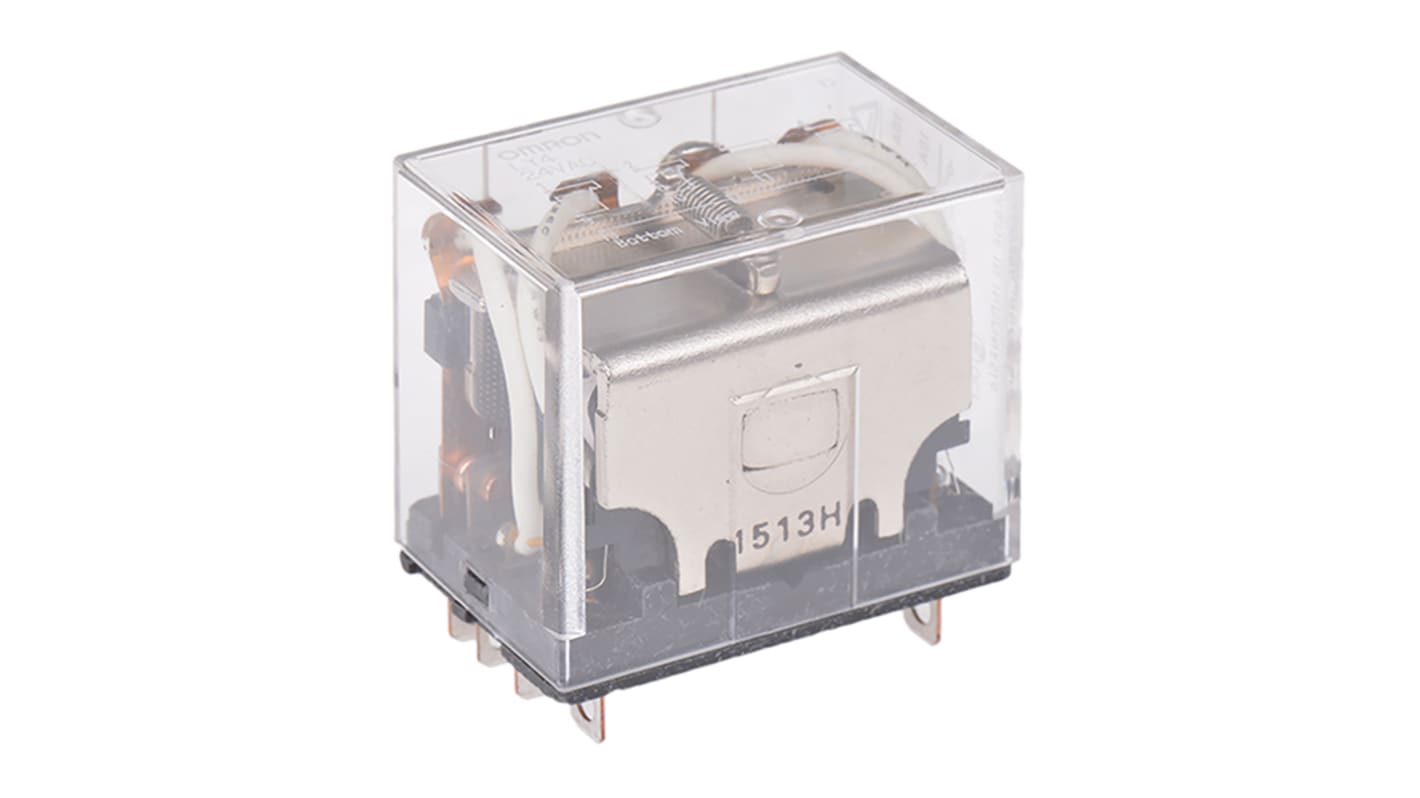

Omron Plug In Power Relay, 24V ac Coil, 10A Switching Current, 4PDT

RS Stock No.:: 329-856
Distrelec Article No.:: 137-12-071
Mfr. Part No.:: LY4 24VAC
Brand:: Omron

Omron Plug In Power Relay, 24V ac Coil, 10A Switching Current, 4PDT

Bulk discount available

Subtotal (1 unit)*

£24.24

(exc. VAT)

£29.09

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

23 unit(s) ready to ship
Plus 5 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£24.24
5 - 9	£23.52
10 +	£22.52

*price indicative

RS Stock No.:: 329-856
Distrelec Article No.:: 137-12-071
Mfr. Part No.:: LY4 24VAC
Brand:: Omron

LY Series

Withstand voltage 2000V coil to contact
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm

Approvals

VDE, UL, CSA, TUV

Omron LY4 Series Power Relay, 24V AC Coil Voltage, 10A Switching Current - LY4 24VAC

This power relay is designed for general purpose use and features a coil voltage of 24V AC. Offering compact dimensions of 28mm in length, 41.5mm in depth, and 42.4mm in height, this device effectively manages electrical currents without requiring complex configuration. It operates efficiently, with a maximum switching voltage of 250V AC, and a maximum switching current of 10A, making it an ideal solution for various automation and electronic applications.

Features & Benefits

• Arc barrier enhances safety and performance under load
• 4PDT configuration supports multiple circuit management
• Plug-in terminal design allows for quick replacements
• Exceptional dielectric withstand voltage of 2000V
• Operates efficiently within -25 °C to +40 °C
• Reliable contact material reduces wear and improves longevity

Applications

• Utilised in controlling machinery in manufacturing setups
• Suitable for HVAC systems to manage power supply
• Employed for circuit control in telecommunications equipment
• Applied in lighting control systems for precise automation

What are the electrical characteristics of the relay in terms of power handling?

The relay can handle a maximum switching power of 1.1 kVA for AC and 240W for DC applications. This capability allows for significant operational flexibility across a range of electrical loads.

How does this relay ensure safe operation in various environments?

With a maximum operating temperature of +40 °C and robust arc barriers, the relay is designed to function safely in standard industrial settings, while also reducing the risk of electrical arcing that could lead to failures.

What installation features facilitate the use of this relay in diverse applications?

The plug-in terminal design streamlines installation and maintenance, allowing quick access for replacement without extensive configuration changes, which is especially beneficial in fast-paced environments.

How does this relay achieve durable performance over time?

The combination of high-quality AgSnIn contact material and a rigorous operating frequency tolerance ensures a longer life expectancy, which is crucial for consistent performance in demanding applications.

Approvals

UL; CSA; VDE; SEV

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	24V ac
	Contact Configuration	4PDT
	Mounting Type	Plug In
	Switching Current	10A
	Number of Poles	4
	Series	LY4
	Latching	No
	Terminal Type	Plug In
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	24V dc
	Maximum Switching Current DC	10 A
	Maximum Switching Current AC	10 A
	Length	28 mm
	Coil Resistance	78Ω
	Depth	41.5 mm
	Maximum Operating Temperature	+40°C
	Contact Material	Silver Alloy
	Minimum Operating Temperature	-25°C
	Height	42.4 mm
	Maximum Switching Power DC	240 W
	Maximum Switching Power AC	1.1 kVA
	Application	General Purpose

	Select all
	Brand Omron
	Coil Voltage 24V ac
	Contact Configuration 4PDT
	Mounting Type Plug In
	Switching Current 10A
	Number of Poles 4
	Series LY4
	Latching No
	Terminal Type Plug In
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 24V dc
	Maximum Switching Current DC 10 A
	Maximum Switching Current AC 10 A
	Length 28 mm
	Coil Resistance 78Ω
	Depth 41.5 mm
	Maximum Operating Temperature +40°C
	Contact Material Silver Alloy
	Minimum Operating Temperature -25°C
	Height 42.4 mm
	Maximum Switching Power DC 240 W
	Maximum Switching Power AC 1.1 kVA
	Application General Purpose
