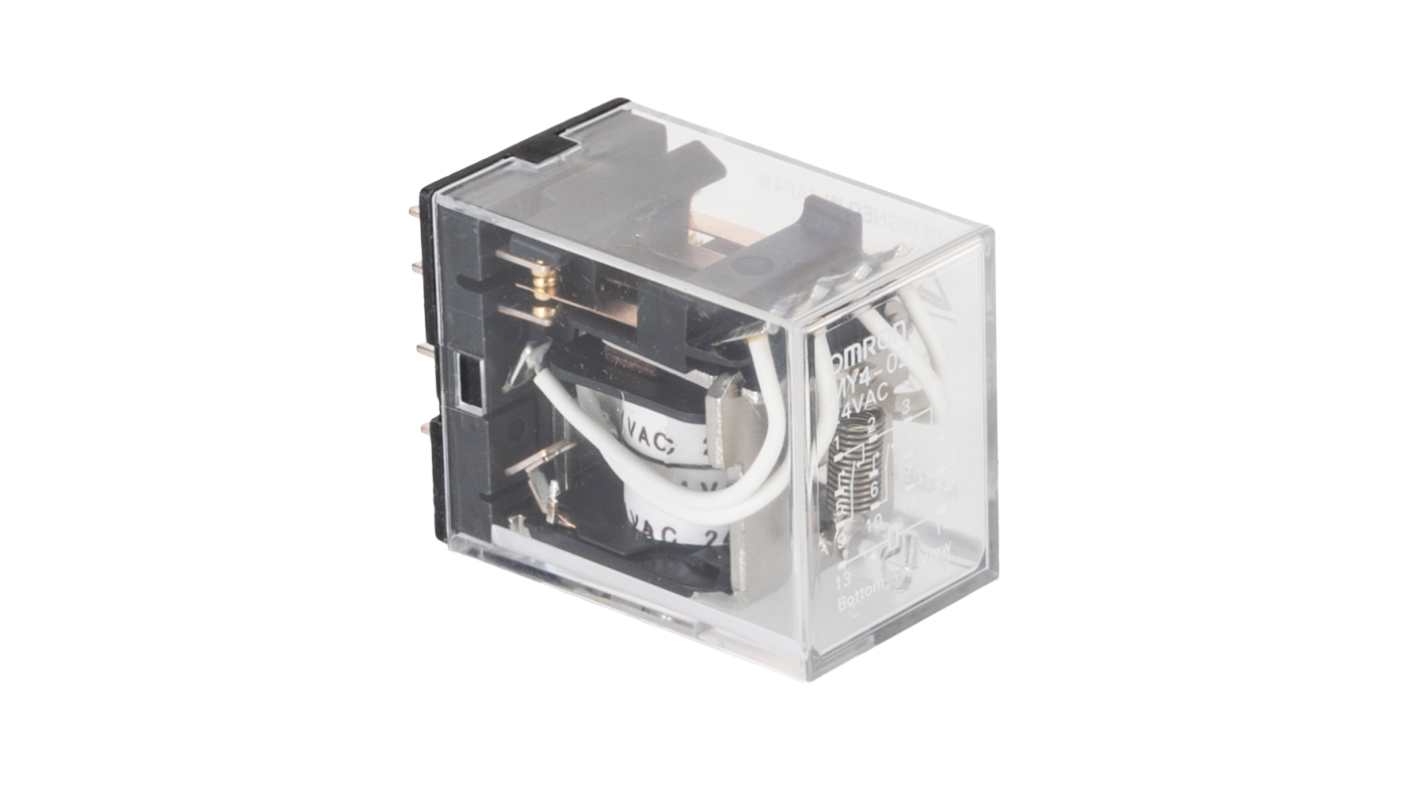

Omron Power Relay, 24V ac Coil, 3A Switching Current, 4PDT
- RS Stock No.:
- 827-8295
- Mfr. Part No.:
- MY4-02 24VAC
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£10.35
(exc. VAT)
£12.42
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 18 unit(s) ready to ship from another location
- Plus 52 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £10.35 |
| 5 - 9 | £10.02 |
| 10 + | £9.61 |
*price indicative
- RS Stock No.:
- 827-8295
- Mfr. Part No.:
- MY4-02 24VAC
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Power Relay | |
| Coil Voltage | 24V ac | |
| Contact Configuration | 4PDT | |
| Series | MY4 | |
| Terminal Type | PCB Pin | |
| Switching Current | 3A | |
| Switching Power | 1.3W | |
| Minimum Operating Temperature | -55°C | |
| Switching AC Voltage | 125V ac | |
| Switching DC Voltage | 125V dc | |
| Coil Resistance | 180Ω | |
| Maximum Operating Temperature | 70°C | |
| Height | 28mm | |
| Standards/Approvals | UL, CSA | |
| Length | 21.5mm | |
| Width | 36mm | |
| Coil Power | 1.1W | |
| Contact Material | Gold Plated | |
| Contact Resistance | 50mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Power Relay | ||
Coil Voltage 24V ac | ||
Contact Configuration 4PDT | ||
Series MY4 | ||
Terminal Type PCB Pin | ||
Switching Current 3A | ||
Switching Power 1.3W | ||
Minimum Operating Temperature -55°C | ||
Switching AC Voltage 125V ac | ||
Switching DC Voltage 125V dc | ||
Coil Resistance 180Ω | ||
Maximum Operating Temperature 70°C | ||
Height 28mm | ||
Standards/Approvals UL, CSA | ||
Length 21.5mm | ||
Width 36mm | ||
Coil Power 1.1W | ||
Contact Material Gold Plated | ||
Contact Resistance 50mΩ | ||
Omron MY4 Series Power Relay, 4PDT Contact Configuration, 24V AC Coil Voltage - MY4-02 AC24
This power relay is designed to efficiently switch electrical circuits with a coil voltage of 24V AC. It has a compact design, measuring 21.5mm in length and 36mm in depth, making it suitable for PCB mounting. Its specifications make it appropriate for various power applications, ensuring safety in operations.
Features & Benefits
• 4PDT contact configuration for versatile connection options
• Maximum switching capacity of 250V AC for robust performance
• Coil resistance of 180Ω for energy-efficient operation
• Isolation of 2kV AC between coil and contact enhances safety
• Endurance of 500,000 electrical operations reduces downtime
• Maximum operating temperature of +70°C promotes reliable performance
Applications
• Control of motors and solenoids
• Automation equipment and systems
• Power switching in industrial machinery
• Effective control in HVAC systems
Can it handle both AC and DC loads?
Yes, it can switch both AC and DC loads efficiently.
Is it suitable for high-frequency operations?
It operates reliably at a maximum frequency of 1,800 operations per hour.
Will it work with different coil voltages?
This model specifically operates with a coil voltage of 24V AC.
Can it be mounted directly onto a PCB?
Yes, it is designed for easy installation as a PCB mount relay.
