- RS Stock No.:
- 271-1928
- Mfr. Part No.:
- MY4-GS-R AC12
- Brand:
- Omron
Discontinued product
- RS Stock No.:
- 271-1928
- Mfr. Part No.:
- MY4-GS-R AC12
- Brand:
- Omron
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details

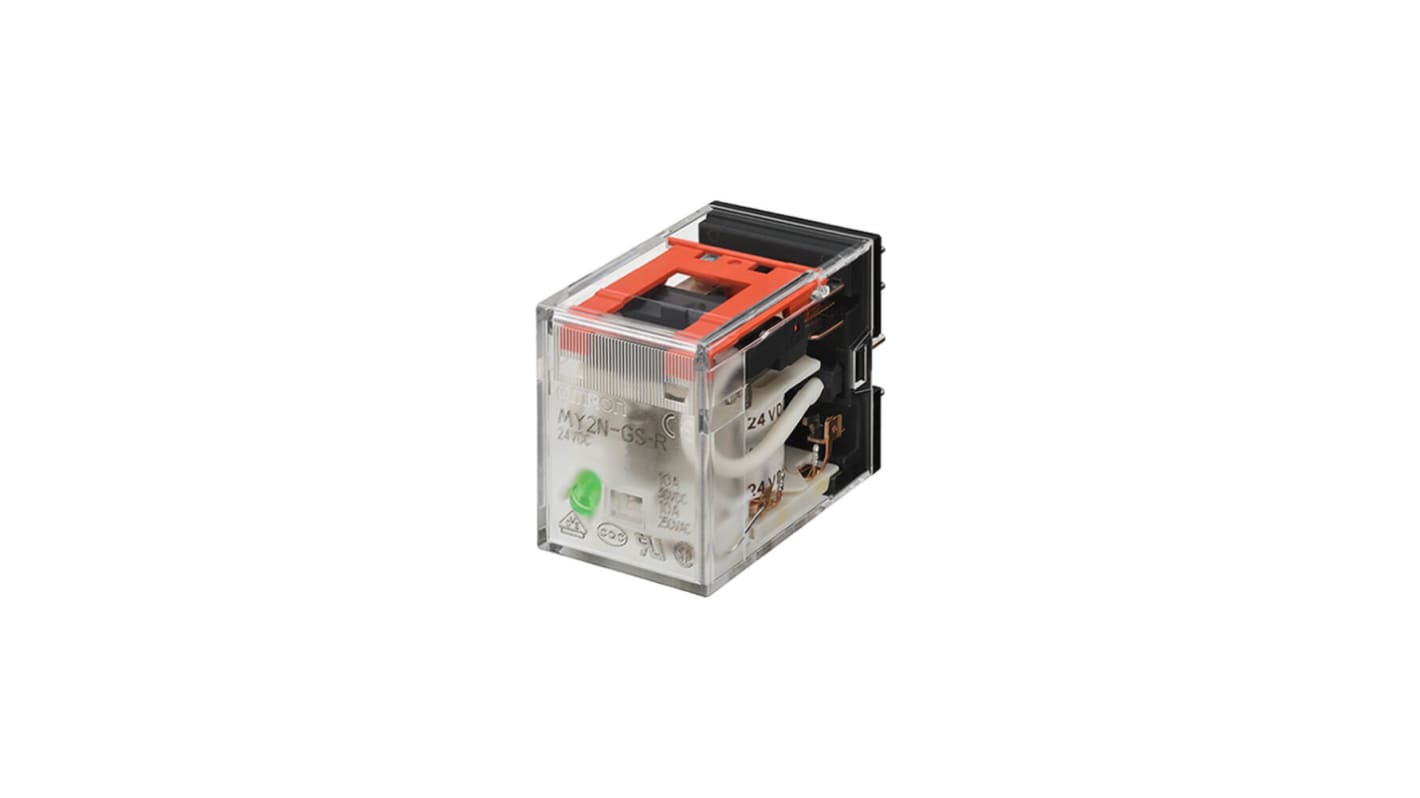

OMRON Power Relay, 2kV AC Dielectric Strength, 100mΩ Contact Resistance - MY Series - MY4-GS-R AC12
Keep your electrical appliances running smoothly with this power relay from OMRON. It's a safe switching solution that uses a low-power signal to control a high energy load, reducing the risk of hazards. As the unit has four contacts, each with a double-throw action, it can regulate multiple circuits simultaneously. Plug-in terminals easily attach to a push-in plus socket (such as 111-3065), so you don't need any special tools to install it. A relay of this type is commonly found in applications like audio equipment and vending machines.
Features & Benefits
• Low contact resistance of 100Ω reduces energy loss and ensures reliable connections
• Lifespan of 300,000 cycles for long-lasting performance
• Safe to use in demanding settings, thanks to an operating temperature range between -55°C and +70°C
• Switching current of 6A for use in light-duty applications
• Lifespan of 300,000 cycles for long-lasting performance
• Safe to use in demanding settings, thanks to an operating temperature range between -55°C and +70°C
• Switching current of 6A for use in light-duty applications
Applications
• Medical devices
• Material handling equipment
• Elevators and escalators
• Material handling equipment
• Elevators and escalators
How do I monitor the status of this relay?
This unit has a transparent case so you can spot any visible issues. There's also a mechanical indicator that makes monitoring and troubleshooting simple.
Note
This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.
Specifications
Attribute | Value |
---|---|
Coil Voltage | 12V ac |
Contact Configuration | 4PDT |
Mounting Type | Plug In |
Switching Current | 6A |
Number of Poles | 4 |
Latching | No |
Terminal Type | Plug In |
Maximum Switching Voltage AC | 250V |
Maximum Switching Voltage DC | 220V |
Maximum Switching Current AC | 6 A |
Maximum Switching Current DC | 6 A |
Length | 28mm |
Coil Resistance | 46 Ω |
Coil Power | 900mW |
Minimum Operating Temperature | -55°C |
Maximum Operating Temperature | +70°C |
Series | MY |
Life | 300000 cycles |
Standards Met | CQC, CSA, IEC, UL |
Contact Material | Silver |
Height | 36mm |
Depth | 36mm |
Isolation Coil To Contact | 2kV ac |
Width | 21.5mm |
Number of Coils | Single |
Maximum Switching Power DC | 3600 mW |
Maximum Switching Power AC | 3.6 VA |
Application | General Purpose, Industrial |
Dimensions | 28 x 21.5 x 36mm |
