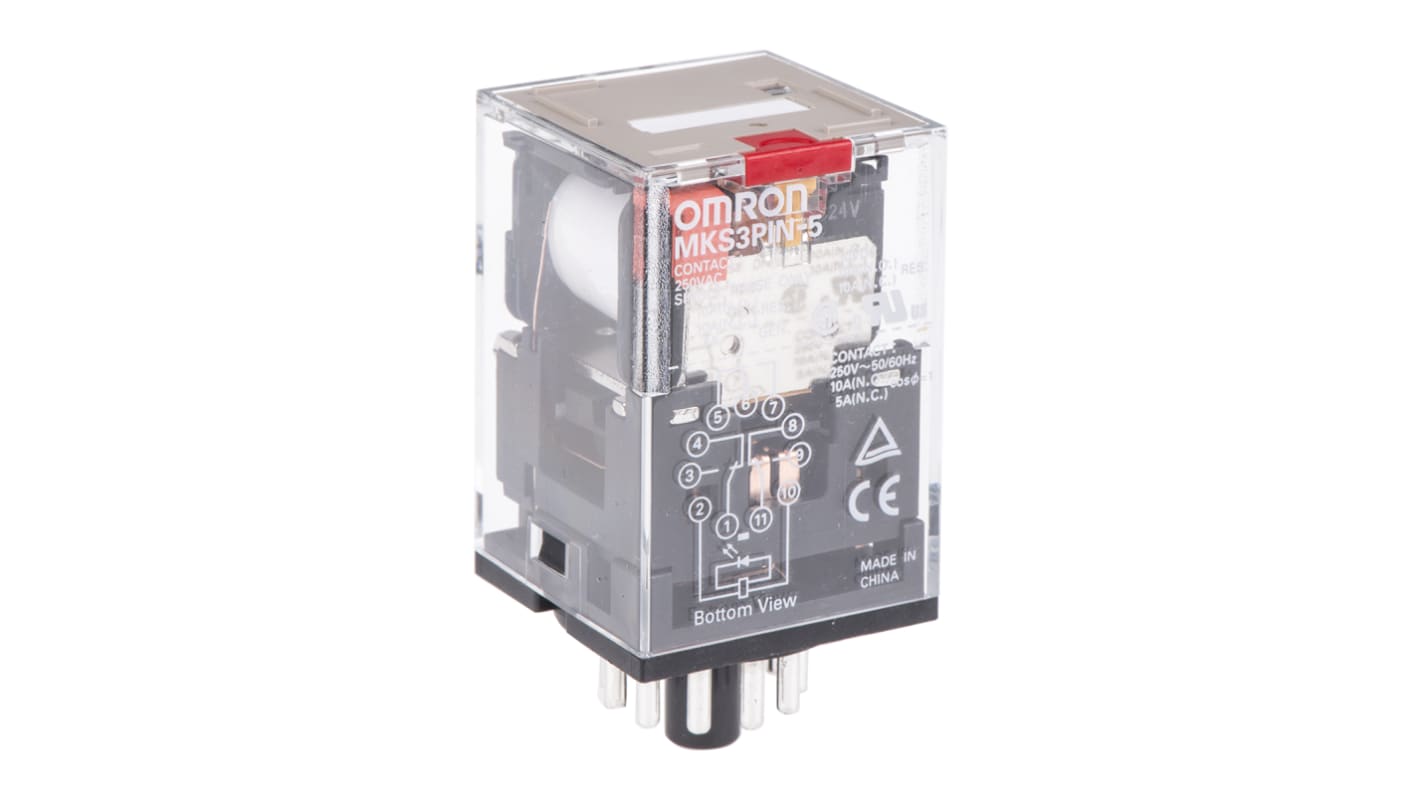

Omron Plug In Relay, 24V ac Coil, 10A Switching Current, 3PDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£13.09

(exc. VAT)

£15.71

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 23 unit(s) ready to ship
  • Plus 8 unit(s) ready to ship from another location
  • Plus 95 unit(s) shipping from 02 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£13.09
5 - 9£12.68
10 +£12.14

*price indicative

RS Stock No.:
536-934
Mfr. Part No.:
MKS3PIN-5 24VAC
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

24V ac

Contact Configuration

3PDT

Mounting Type

Plug In

Switching Current

10A

Number of Poles

3

Series

MKS3

Latching

No

Terminal Type

Plug In

Maximum Switching Voltage AC

250V ac

Maximum Switching Voltage DC

250V dc

Length

34.5mm

Coil Resistance

48.4Ω

Depth

34.5mm

Height

53.3mm

Maximum Operating Temperature

+60°C

Contact Material

Silver Alloy

Minimum Operating Temperature

-40°C

Maximum Switching Power AC

2.5 kVA

Maximum Switching Power DC

300 W

Application

General Purpose

COO (Country of Origin):
CN

Omron MKS3 Series Relay, 3PDT Contact Configuration, 300W Maximum Switching Power (DC) - MKS3PIN-5 AC24


This relay is a versatile device commonly utilised in control circuits across automation and industrial settings. With dimensions of 34.5x34.5x53.3mm, it is a plug-in relay operating on 24V AC, ideal for general-purpose applications. It supports switching voltages up to 250V AC and DC, ensuring dependable functionality in various conditions.

Features & Benefits


• Suitable for general-purpose applications
• 3PDT configuration allows for flexible circuit control
• Plug-in design facilitates easy installation and upkeep
• Effective operation within a temperature range of -40 to +60°C
• Coil resistance of 48.4Ω contributes to energy efficiency
• Constructed from RoHS-compliant materials for safety adherence

Applications


• Employed in relay sequence circuits for operational checks
• Appropriate for industrial control functions
• Integrated into automation systems for effective performance
• Suitable for electrical equipment necessitating high switching capabilities
• Used in systems that require a dependable latching option

Can it operate in extreme temperatures?


Yes, it operates between -40°C and +60°C.

Is it easy to install?


Yes, it features a plug-in design for straightforward installation.

Can this relay indicate operation status?


Yes, it has a built-in mechanical indicator for operational checks.

Is it suitable for high-voltage applications?


Yes, it can effectively switch voltages up to 250V.
