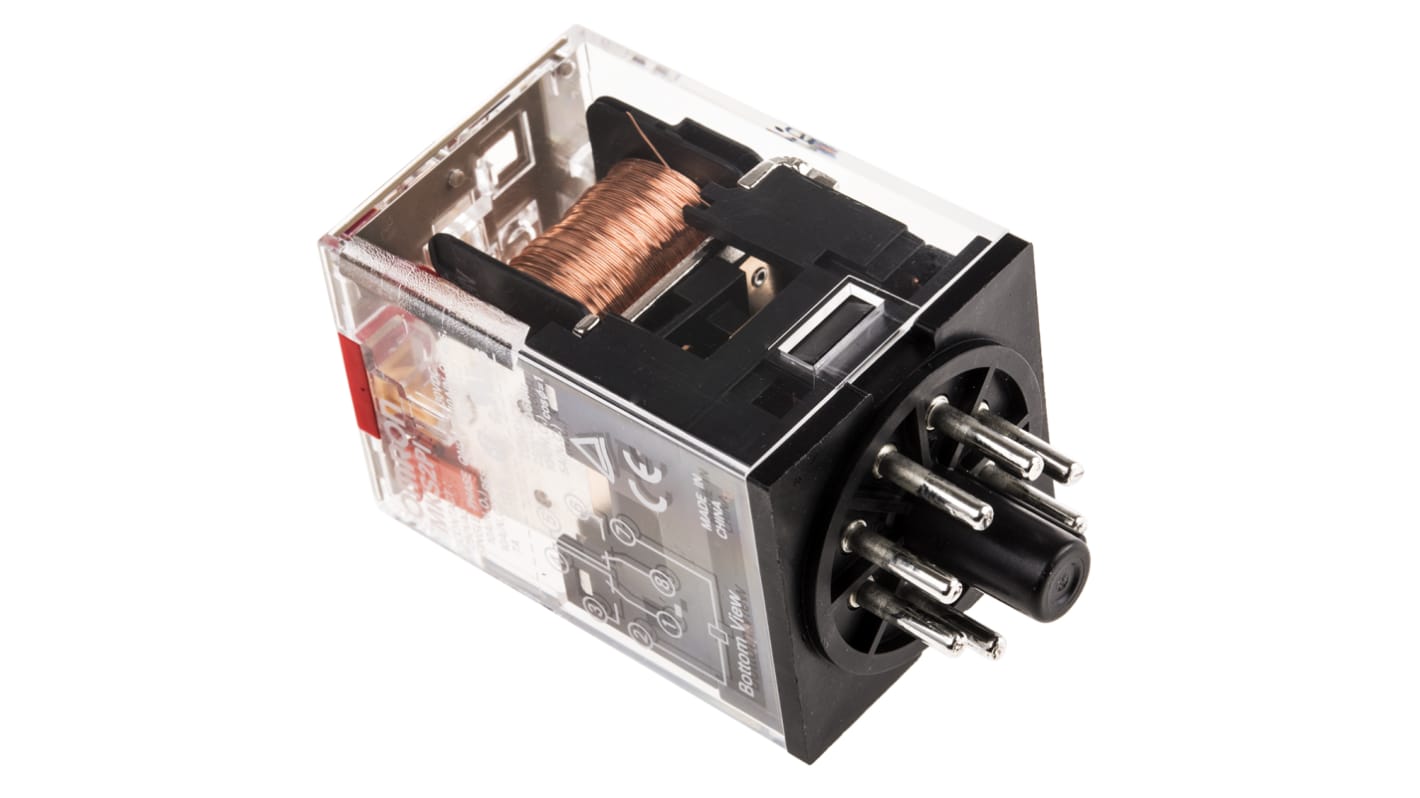

Omron Plug In Power Relay, 24V ac Coil, 10A Switching Current, DPDT

RS Stock No.:: 536-893
Mfr. Part No.:: MKS2PI AC24
Brand:: Omron

Omron Plug In Power Relay, 24V ac Coil, 10A Switching Current, DPDT

146 In stock - FREE next working day delivery available

10 available from Europe for delivery within 2 working day(s).

Price Each

£9.68

(exc. VAT)

£11.62

(inc. VAT)

Units	Per unit
1 - 4	£9.68
5 - 9	£9.39
10 +	£8.97

RS Stock No.:: 536-893
Mfr. Part No.:: MKS2PI AC24
Brand:: Omron

Technical Reference

MK-S Datasheet

Legislation and Compliance

Product Details

General Purpose Relays, MKS Series

All units have a Mechanical indicator and lockable test button (with nameplate)
Units with a "-5" in the Manufacturer Part Number have non-standard connections, refer to datasheet
Contact rating: 10A at 30Vdc/250Vac
Contact material: AgSnIn
Operating temperature: -40 → +60 °C

Note

When Relays are mounted on the PF083A-E or PF113A-E, the maximum carrying current is 9 A

Approvals

UL, TUV (IEC), CSA

Specifications

Attribute	Value
Coil Voltage	24V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	250V dc
Length	34.5mm
Coil Resistance	48.4Ω
Depth	34.5mm
Minimum Operating Temperature	-40°C
Height	53.3mm
Contact Material	Silver Alloy
Series	MKS
Maximum Operating Temperature	+60°C
Maximum Switching Power AC	2.5 kVA
Maximum Switching Power DC	300 W
Application	General Purpose
