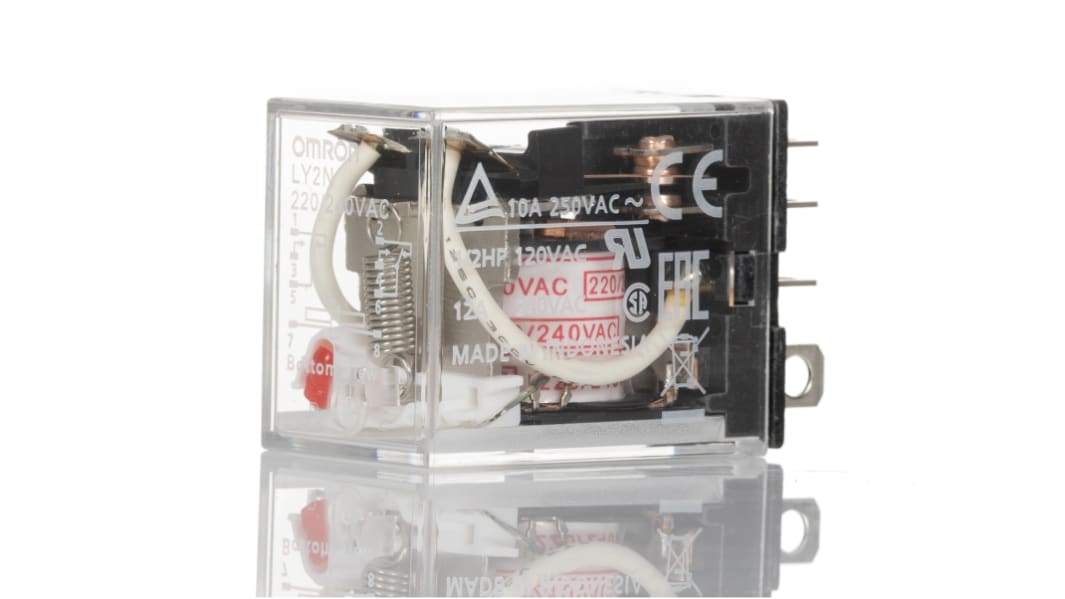

Omron Non-Latching Relay, 220V ac, 240 V ac Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 215-7857
- Distrelec Article No.:
- 301-37-297
- Mfr. Part No.:
- LY2N 220/240VAC
- Brand:
- Omron
Subtotal (1 unit)*
£21.14
(exc. VAT)
£25.37
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 130 unit(s) shipping from 23 November 2026
- Plus 11 unit(s) shipping from 23 November 2026
- Plus 50 unit(s) shipping from 30 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £21.14 |
*price indicative
- RS Stock No.:
- 215-7857
- Distrelec Article No.:
- 301-37-297
- Mfr. Part No.:
- LY2N 220/240VAC
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 220V ac, 240V ac | |
| Product Type | Non-Latching Relay | |
| Contact Configuration | DPDT | |
| Series | LY2N | |
| Terminal Type | Screw | |
| Switching Current | 10A | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 125V dc | |
| Maximum Operating Temperature | 55°C | |
| Coil Resistance | 18.8kΩ | |
| Standards/Approvals | UL, RoHS, CSA, CE | |
| Width | 21.5mm | |
| Length | 36mm | |
| Coil Power | 1.1W | |
| Height | 28mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 50mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 220V ac, 240V ac | ||
Product Type Non-Latching Relay | ||
Contact Configuration DPDT | ||
Series LY2N | ||
Terminal Type Screw | ||
Switching Current 10A | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 125V dc | ||
Maximum Operating Temperature 55°C | ||
Coil Resistance 18.8kΩ | ||
Standards/Approvals UL, RoHS, CSA, CE | ||
Width 21.5mm | ||
Length 36mm | ||
Coil Power 1.1W | ||
Height 28mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 50mΩ | ||
- COO (Country of Origin):
- ID
Omron LY2N Series Non-Latching Relay, 1.1W Coil Power, DPDT - LY2N AC220/240
This 220V coil voltage non-latching relay by Omron, with DPDT configuration and a switching current of 10A, offers high performance and reliability. It is made to meet the demands of automation and electrical systems, it is a top choice in the industry.
Features & Benefits
• Provides secure switching with DPDT configuration
• High traffic relay ideal for heavy-duty applications
• Coil voltage of 220V ensures consistent performance
• Offers 10A switching current for efficient operations
• Omron LY2N technology for superior reliability and precision
Applications
• Ideal for use in automation and electrical systems
• Suitable for applications requiring high traffic switching
• Suitable for industrial control systems and machinery
Can it handle heavy-duty applications?
This non-latching relay is designed to efficiently manage high-traffic operations with its 10A switching current.
Will it work with automation systems?
Yes, this relay is Suitable for integration into automation systems for reliable performance.
Is it suitable for industrial control systems?
Yes, the Omron non-latching relay is an excellent choice for industrial control systems due to its precision and reliability.
