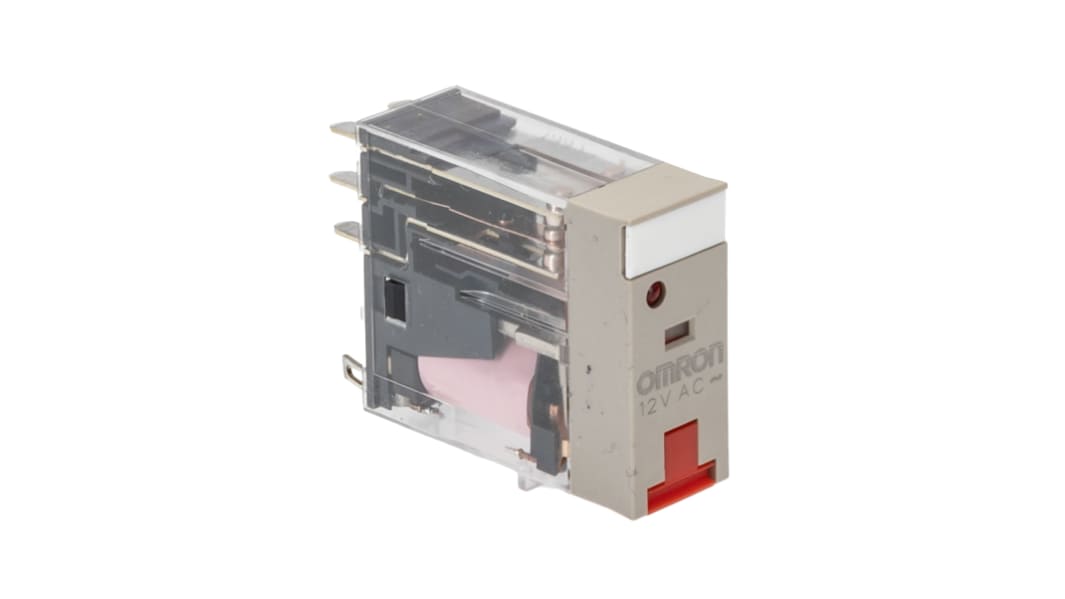

Omron Plug In Non-Latching Relay, 12V ac Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 215-7850
- Mfr. Part No.:
- G2R-2-SNI 12VAC (S)
- Brand:
- Omron
Subtotal (1 unit)*
£9.53
(exc. VAT)
£11.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 24 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £9.53 |
*price indicative
- RS Stock No.:
- 215-7850
- Mfr. Part No.:
- G2R-2-SNI 12VAC (S)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 12V ac | |
Contact Configuration | DPDT | |
Mounting Type | Plug In | |
Switching Current | 5A | |
Number of Poles | 2 | |
Series | G2R-2 | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 380V | |
Maximum Switching Voltage DC | 125V | |
Maximum Switching Current AC | 5 A | |
Maximum Switching Current DC | 5 A | |
Length | 13mm | |
Coil Resistance | 65 Ω | |
Coil Power | 900mW | |
Minimum Operating Temperature | -40°C | |
Depth | 29mm | |
Height | 42.8mm | |
Standards Met | CE, CSA | |
Maximum Operating Temperature | +70°C | |
Maximum Switching Power DC | 150000 mW | |
Maximum Switching Power AC | 1.25 kVA | |
Dimensions | 13 x 29 x 42.8mm | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 12V ac | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 5A | ||
Number of Poles 2 | ||
Series G2R-2 | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 380V | ||
Maximum Switching Voltage DC 125V | ||
Maximum Switching Current AC 5 A | ||
Maximum Switching Current DC 5 A | ||
Length 13mm | ||
Coil Resistance 65 Ω | ||
Coil Power 900mW | ||
Minimum Operating Temperature -40°C | ||
Depth 29mm | ||
Height 42.8mm | ||
Standards Met CE, CSA | ||
Maximum Operating Temperature +70°C | ||
Maximum Switching Power DC 150000 mW | ||
Maximum Switching Power AC 1.25 kVA | ||
Dimensions 13 x 29 x 42.8mm | ||
Omron G2R-2 Series Non-Latching Relay, DPDT Contact Configuration, 5A Switching Current - G2R-2-SNI AC12(S)
This non-latching relay is designed for dependable performance in various automation and electrical applications. With a coil voltage of 12V AC and the ability to switch currents up to 5A, it is well-suited for control circuits. Its versatile design facilitates easy integration into existing systems, improving both functionality and efficiency.
Features & Benefits
• Supports dual pole, dual throw (DPDT) for adaptable circuitry
• Plug-in type allows for swift installation and maintenance
• Maximum switching power of 1250VA for demanding Applications
• Low coil resistance helps to minimise energy consumption
• Plug-in type allows for swift installation and maintenance
• Maximum switching power of 1250VA for demanding Applications
• Low coil resistance helps to minimise energy consumption
Applications
• Used in home automation systems for lighting control
• Applied in industrial machinery for relay control circuits
• Utilised in HVAC systems for efficient component switching
• Incorporated into control panels for machinery and equipment
• Employed in telecommunications for signal switching
• Applied in industrial machinery for relay control circuits
• Utilised in HVAC systems for efficient component switching
• Incorporated into control panels for machinery and equipment
• Employed in telecommunications for signal switching
What is the recommended installation procedure for this device?
It is recommended to follow the manufacturer's guidelines, ensuring secure connections and appropriate mounting.
Can this relay operate under extreme temperatures?
Yes, it functions efficiently within a temperature range of -40 to +70°C.
What type of terminals does it have for connections?
The relay features plug-in terminals for convenient wiring and connection management.
