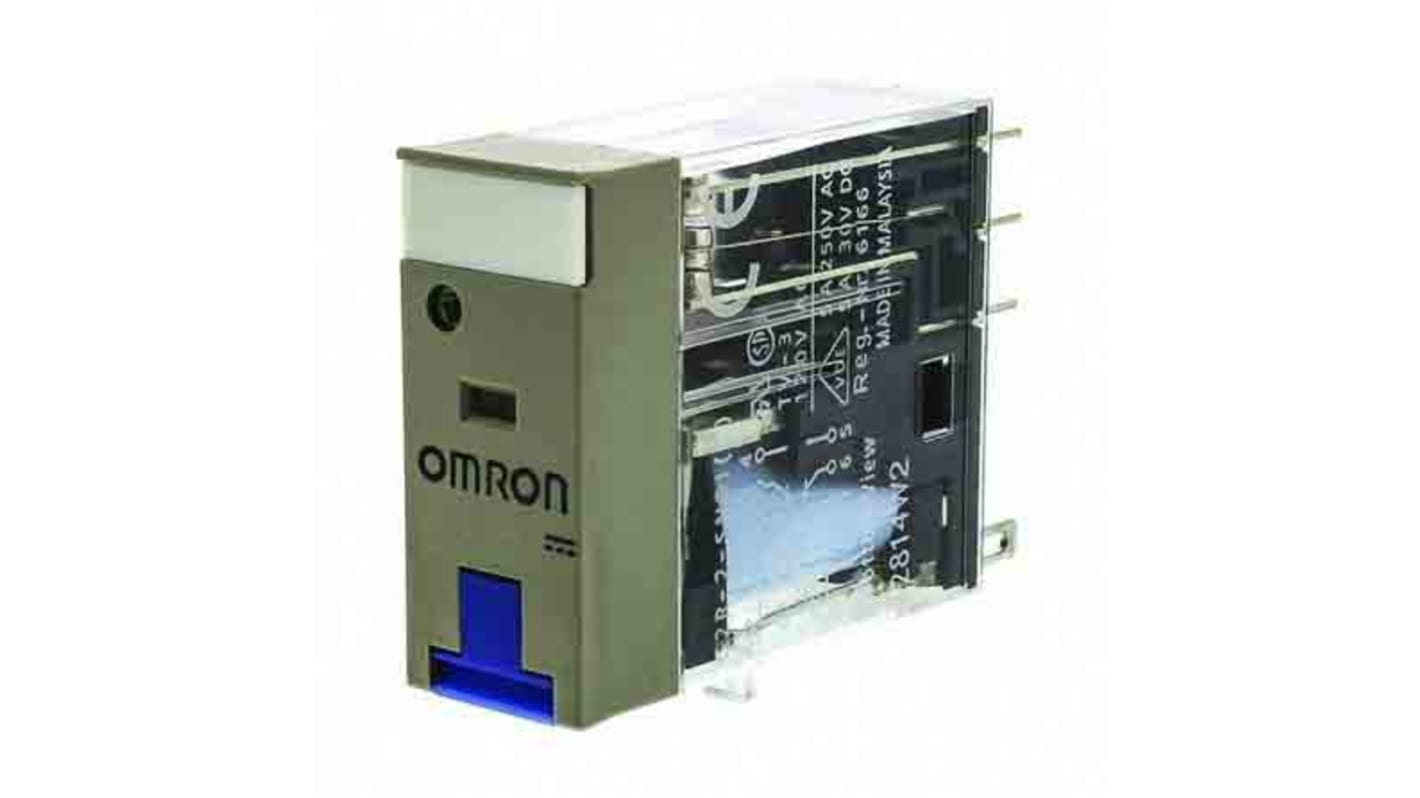

Omron Non-Latching Relay, 48V dc Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 215-7254
- Mfr. Part No.:
- G2R-2-SNI 48VDC (S)
- Brand:
- Omron
Subtotal (1 unit)*
£9.03
(exc. VAT)
£10.84
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 27 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9.03 |
*price indicative
- RS Stock No.:
- 215-7254
- Mfr. Part No.:
- G2R-2-SNI 48VDC (S)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Non-Latching Relay | |
| Coil Voltage | 48V dc | |
| Contact Configuration | DPDT | |
| Series | G2R | |
| Terminal Type | Plug-In | |
| Switching Current | 5A | |
| Switching DC Voltage | 125V dc | |
| Switching AC Voltage | 440V ac | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 150W | |
| Coil Resistance | 4.2kΩ | |
| Maximum Operating Temperature | 70°C | |
| Width | 13mm | |
| Length | 29mm | |
| Height | 35.5mm | |
| Coil Power | 530mW | |
| Standards/Approvals | RoHS | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Non-Latching Relay | ||
Coil Voltage 48V dc | ||
Contact Configuration DPDT | ||
Series G2R | ||
Terminal Type Plug-In | ||
Switching Current 5A | ||
Switching DC Voltage 125V dc | ||
Switching AC Voltage 440V ac | ||
Minimum Operating Temperature -40°C | ||
Switching Power 150W | ||
Coil Resistance 4.2kΩ | ||
Maximum Operating Temperature 70°C | ||
Width 13mm | ||
Length 29mm | ||
Height 35.5mm | ||
Coil Power 530mW | ||
Standards/Approvals RoHS | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
The Omron relay has plug-in terminals. It has mechanical and LED indicators. This is a DPDT relay with 8 pins. Its rated current is 5A. It has lockable test button.
It reduces wiring work by 60%
It is provided with nameplate
It has high switching power
