Omron DIN Rail Power Relay, 24V dc Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 488-1982
- Mfr. Part No.:
- MY2N-D2 DC24(S)
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£11.38
(exc. VAT)
£13.66
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £11.38 |
| 5 - 9 | £11.05 |
| 10 + | £10.56 |
*price indicative
- RS Stock No.:
- 488-1982
- Mfr. Part No.:
- MY2N-D2 DC24(S)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Series | MY | |
| Terminal Type | Plug-In | |
| Switching Current | 5A | |
| Switching AC Voltage | 30V ac | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -55°C | |
| Coil Resistance | 636Ω | |
| Maximum Operating Temperature | 70°C | |
| Coil Power | 900mW | |
| Standards/Approvals | CE, VDE, UL, RoHS, LR, CSA | |
| Length | 28mm | |
| Height | 36mm | |
| Width | 21.5mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Product Type Power Relay | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Series MY | ||
Terminal Type Plug-In | ||
Switching Current 5A | ||
Switching AC Voltage 30V ac | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -55°C | ||
Coil Resistance 636Ω | ||
Maximum Operating Temperature 70°C | ||
Coil Power 900mW | ||
Standards/Approvals CE, VDE, UL, RoHS, LR, CSA | ||
Length 28mm | ||
Height 36mm | ||
Width 21.5mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- JP

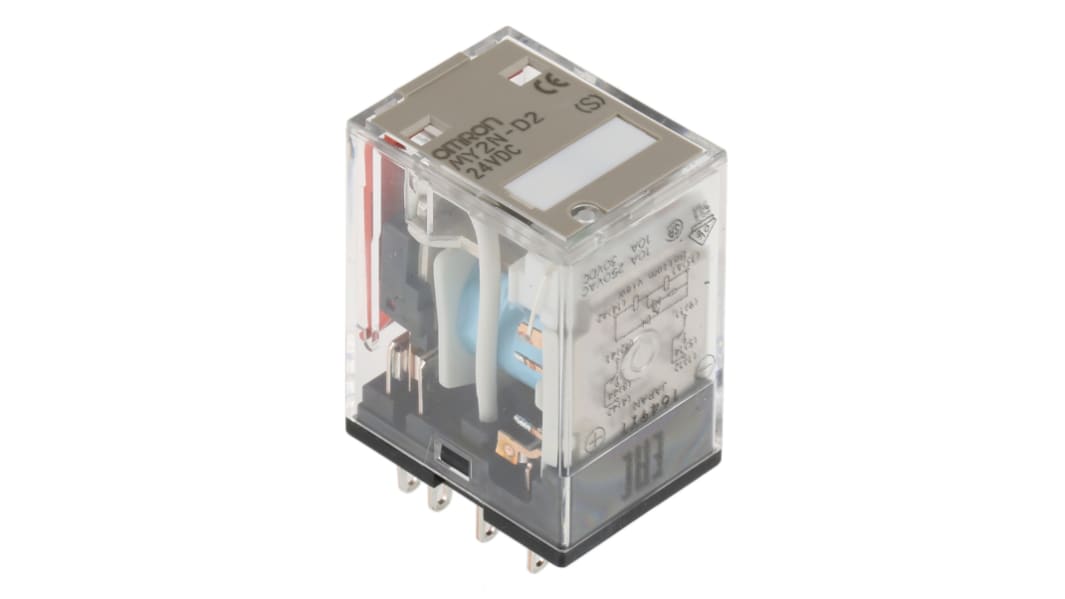

OMRON Power Relay, 0.9W Power Consumption, Integrated Diode - MY Series - MY2N-D2 DC24(S)
Ensure the smooth running of your electrical appliances with this power relay from OMRON. It offers a safe switching solution by using a low input to control a high-energy load, reducing the risk of hazards. The unit features plug-in terminals that latch onto a socket, eliminating the need for installation tools. It consumes just 0.9W of power during operation, making it an energy-efficient choice for your setup. Thanks to its transparent housing and an integral LED indicator, it's easy to monitor its activity at a glance. A power relay of this type is frequently used to switch high-current loads in motor control circuits and HVAC setups.
Features & Benefits
• Withstands up to 500,000 hours of electrical operation, assuring you of long-term performance
• Handles operating temperatures between -55°C and +70°C, so it's tough enough for industrial installations
• Weighs just 35g, so it's easy to handle during installation
Applications
• Telecommunications industry
• Water treatment plants
• Lifts and escalators
What's the dielectric strength of this power relay?
This unit has a dielectric strength of 2kV, which means it's a good insulator and safely handles high voltages without suffering damage.
Approvals
VDE; UL; CSA
