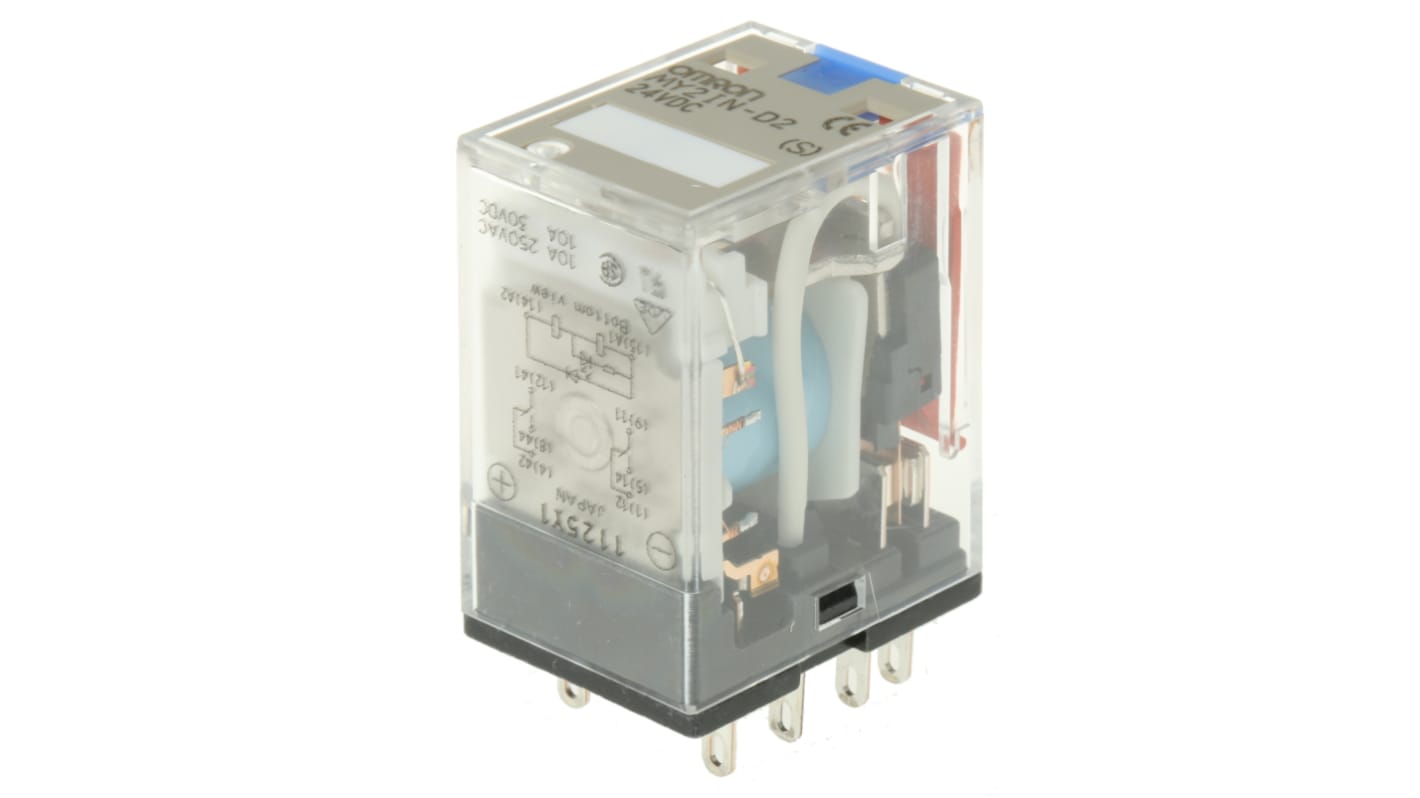

Name: Omron Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT
Brand: Omron
SKU: 794-8170
Price: 16.55 GBP
Availability: Discontinued

Omron Series MY Power Relay, DPDT Contact Configuration, 24V DC Coil Voltage - MY2IN-D2 DC24(S)

This power relay delivers strong performance across various automation and industrial applications. Designed for sequence control, it merges functionality with reliability, facilitating effective operation. The device operates on a 24V DC coil voltage, making it essential for enhancing efficiency in electrical, electronics, and mechanical systems.

Features & Benefits

• 10A relay switching capability for dependable operation
• DPDT configuration allows flexible circuit control
• Plug-in design simplifies installation and maintenance
• Suitable for high voltage applications up to 250V AC
• Operating temperature range from -55°C to +70°C accommodates diverse environments

Applications

• Recommended for power control systems
• Ideal for sequence control machinery
• Automation solutions requiring reliable switching

What type of load can be switched with this device?

It handles a maximum switching current of 10A, suitable for various loads, including both AC and DC applications.

How do I install this relay in my system?

The plug-in design allows for direct insertion into sockets without the need for additional tools, making setup straightforward.

What is the expected lifespan of this relay?

The device can perform up to 100 million mechanical operations and 500,000 electrical operations, ensuring considerable longevity.

Is there a specific control circuit configuration required?

The relay features a DPDT configuration, providing versatile circuit control for different electrical applications.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	24V dc
	Contact Configuration	DPDT
	Mounting Type	Plug In
	Switching Current	10A
	Number of Poles	2
	Series	MY
	Latching	No
	Terminal Type	Plug In
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	125V dc
	Length	36mm
	Coil Resistance	636Ω
	Coil Power	900mW
	Height	28mm
	Life	100000000 (DC Mechanical) Operations, 500000 (Electrical) Operations, 50000000 (AC Mechanical) Operations
	Depth	21.5mm
	Isolation Coil To Contact	2kV ac
	Standards Met	CE
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	-55°C
	Maximum Switching Power DC	150 W
	Maximum Switching Power AC	2.5 kVA
	Application	Power, Sequence Control

	Select all
	Brand Omron
	Coil Voltage 24V dc
	Contact Configuration DPDT
	Mounting Type Plug In
	Switching Current 10A
	Number of Poles 2
	Series MY
	Latching No
	Terminal Type Plug In
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 125V dc
	Length 36mm
	Coil Resistance 636Ω
	Coil Power 900mW
	Height 28mm
	Life 100000000 (DC Mechanical) Operations, 500000 (Electrical) Operations, 50000000 (AC Mechanical) Operations
	Depth 21.5mm
	Isolation Coil To Contact 2kV ac
	Standards Met CE
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature -55°C
	Maximum Switching Power DC 150 W
	Maximum Switching Power AC 2.5 kVA
	Application Power, Sequence Control
