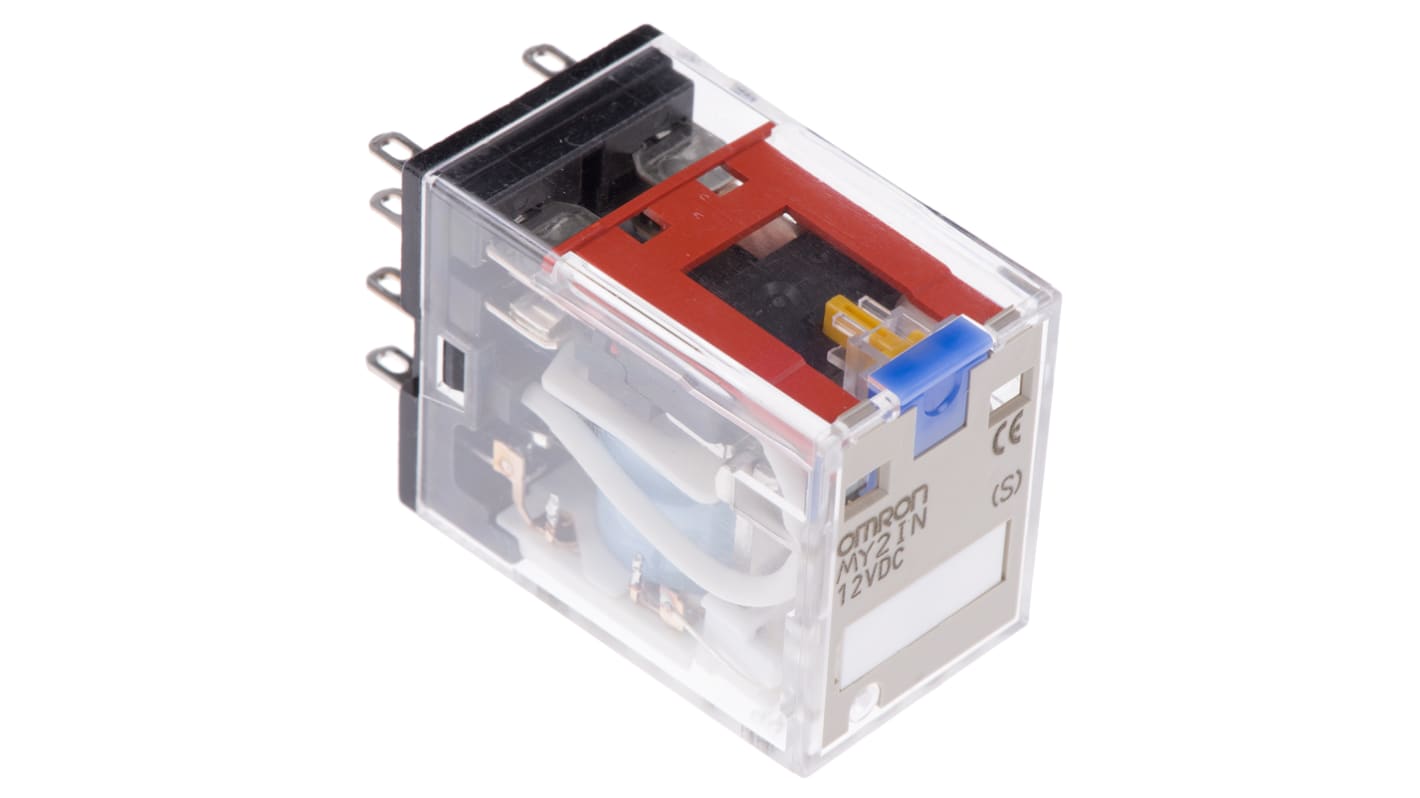

Omron Plug In Power Relay, 12V dc Coil, 10A Switching Current, DPDT

RS Stock No.:: 548-4223
Mfr. Part No.:: MY2IN DC12(S)
Brand:: Omron

Omron Plug In Power Relay, 12V dc Coil, 10A Switching Current, DPDT

Currently unavailable

We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

Omron Plug In Latching Power Relay, 12V dc Coil, 10A Switching Current, DPDT

RS Stock No.: 271-1924

Each

£7.76

(exc. VAT)

£9.31

(inc. VAT)

RS Stock No.:: 548-4223
Mfr. Part No.:: MY2IN DC12(S)
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	12V dc
	Contact Configuration	DPDT
	Mounting Type	Plug In
	Switching Current	10A
	Number of Poles	2
	Series	MY
	Latching	No
	Terminal Type	Plug In
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	125V dc
	Maximum Switching Current DC	5 A
	Maximum Switching Current AC	10 A
	Length	28 mm
	Coil Resistance	160Ω
	Coil Power	900mW
	Isolation Coil To Contact	2 kV
	Height	36 mm
	Minimum Operating Temperature	-55°C
	Depth	21.5 mm
	Contact Material	Silver
	Maximum Operating Temperature	+70°C
	Maximum Switching Power AC	2.5 kVA
	Maximum Switching Power DC	300 W
	Application	Power

	Select all
	Brand Omron
	Coil Voltage 12V dc
	Contact Configuration DPDT
	Mounting Type Plug In
	Switching Current 10A
	Number of Poles 2
	Series MY
	Latching No
	Terminal Type Plug In
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 125V dc
	Maximum Switching Current DC 5 A
	Maximum Switching Current AC 10 A
	Length 28 mm
	Coil Resistance 160Ω
	Coil Power 900mW
	Isolation Coil To Contact 2 kV
	Height 36 mm
	Minimum Operating Temperature -55°C
	Depth 21.5 mm
	Contact Material Silver
	Maximum Operating Temperature +70°C
	Maximum Switching Power AC 2.5 kVA
	Maximum Switching Power DC 300 W
	Application Power

Omron Series MY Power Relay, 12V DC Coil Voltage, 10A Switching Current - MY2IN DC12(S)

When 5484223 is no longer for sale, please see RS article 2711924 for the updated version in the new range of relays from Omron.

Features & Benefits

• Supports a maximum switching current of 10A for reliable performance
• Achieves high insulation between coil and contact at 2 kV
• Designed for easy integration with its plug-in terminal type
• Capable of handling significant switching power, up to 2.5 kVA AC
• Operates effectively across a broad temperature range from -55 °C to +70 °C
• Constructed with silver contact material for improved durability and conductivity

Applications

• Suitable for controlling motors and other heavy electrical loads
• Used in automation systems requiring precise switching
• Provides reliable operation in harsh environmental conditions
• Ideal for industrial equipment needing durable electrical relay components

What is the maximum voltage this can switch for AC and DC circuits?

This relay can switch a maximum voltage of 250V AC and 125V DC, making it versatile for various applications.

How does the coil resistance affect the relay's performance?

With a coil resistance of 160 Ω, it ensures efficient energy consumption while maintaining effective control over the connected load.

What environmental conditions can this relay operate under?

It functions reliably in temperatures ranging from -55 °C to +70 °C, suitable for challenging industrial environments.

What current rating does this relay support for DC switching?

It supports a maximum switching current of 5A for DC applications, making it suitable for various low-voltage scenarios.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.

Approvals

VDE; UL; CSA
