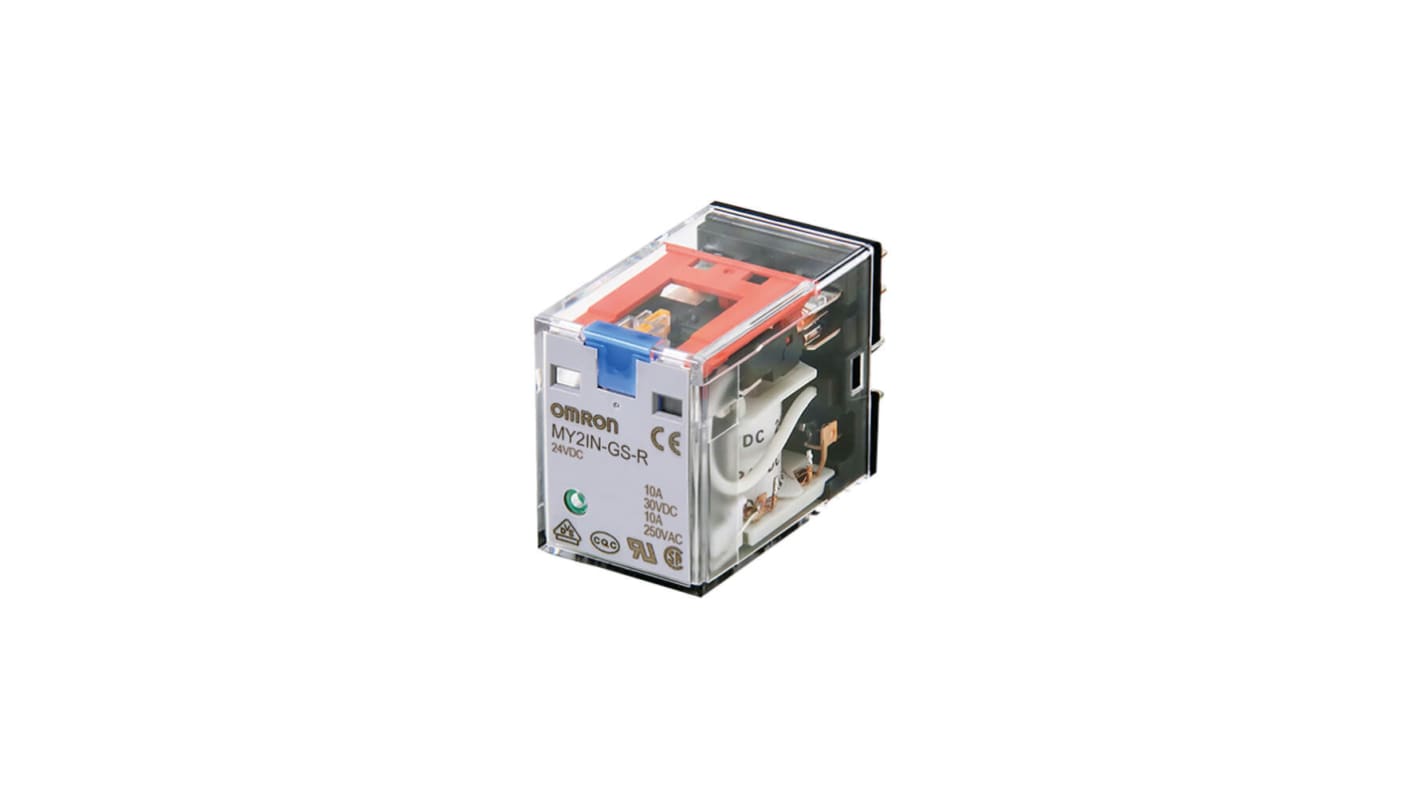

Omron Plug In Latching Power Relay, 24V dc Coil, 10A Switching Current, DPDT

RS Stock No.:: 271-1917
Mfr. Part No.:: MY2IN-D2-GS-R DC24
Brand:: Omron

Omron Plug In Latching Power Relay, 24V dc Coil, 10A Switching Current, DPDT

Subtotal (1 unit)*

£13.57

(exc. VAT)

£16.28

(inc. VAT)

Stock information currently inaccessible

Units	Per unit
1 +	£13.57

*price indicative

RS Stock No.:: 271-1917
Mfr. Part No.:: MY2IN-D2-GS-R DC24
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	24V dc
	Contact Configuration	DPDT
	Mounting Type	Plug In
	Switching Current	10A
	Number of Poles	2
	Latching	Yes
	Terminal Type	Plug In
	Maximum Switching Voltage AC	250V
	Maximum Switching Voltage DC	220V
	Maximum Switching Current DC	10 A
	Maximum Switching Current AC	10 A
	Length	28mm
	Coil Resistance	662 Ω
	Coil Power	900mW
	Minimum Operating Temperature	-55°C
	Series	MY
	Height	36mm
	Depth	36mm
	Isolation Coil To Contact	2kV ac
	Maximum Operating Temperature	+70°C
	Contact Material	Silver
	Standards Met	CQC, CSA, IEC, UL
	Life	500000 cycles
	Width	21.5mm
	Number of Coils	Single
	Maximum Switching Power DC	10000 mW
	Maximum Switching Power AC	10 VA
	Application	General Purpose, Industrial
	Dimensions	28 x 21.5 x 36mm

	Select all
	Brand Omron
	Coil Voltage 24V dc
	Contact Configuration DPDT
	Mounting Type Plug In
	Switching Current 10A
	Number of Poles 2
	Latching Yes
	Terminal Type Plug In
	Maximum Switching Voltage AC 250V
	Maximum Switching Voltage DC 220V
	Maximum Switching Current DC 10 A
	Maximum Switching Current AC 10 A
	Length 28mm
	Coil Resistance 662 Ω
	Coil Power 900mW
	Minimum Operating Temperature -55°C
	Series MY
	Height 36mm
	Depth 36mm
	Isolation Coil To Contact 2kV ac
	Maximum Operating Temperature +70°C
	Contact Material Silver
	Standards Met CQC, CSA, IEC, UL
	Life 500000 cycles
	Width 21.5mm
	Number of Coils Single
	Maximum Switching Power DC 10000 mW
	Maximum Switching Power AC 10 VA
	Application General Purpose, Industrial
	Dimensions 28 x 21.5 x 36mm

RoHS Status: Not Applicable

COO (Country of Origin):: CN

OMRON Power Relay, 100mΩ Maximum Contact Resistance, Silver Contacts - MY Series - MY2IN-D2-GS-R DC24

Get your heavy-duty machinery up and running with this power relay from OMRON. It controls your appliance by generating a magnetic field when its coil is energised, which pushes its contacts to open and close as needed. The silver conductors have low resistance of 100mΩ, giving you a reliable connection. Thanks to a maximum switching power of 1.25kVA and 150W, you can count on this component to manage heavy equipment like industrial fans and compressors. An integrated test button makes maintenance checks easy and is lockable to prevent tampering.

Features & Benefits

• Compact dimensions of 28 (L) x 21.5 (W) x 36mm (H) for space-efficient installation in busy setups
• Simple and toolless mounting when paired with a relay socket (such as 326-6922)
• Light weight of 35g for easy handling during assembly
• Withstands between -55°C and +70°C of operating temperature, making it safe for use in challenging settings

Applications

• Security and surveillance systems
• Textile manufacturing
• Mining industry

How do I monitor this power relay during operation?

This unit comes with both LED and mechanical indicators to keep you in the loop on its contact position.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.
