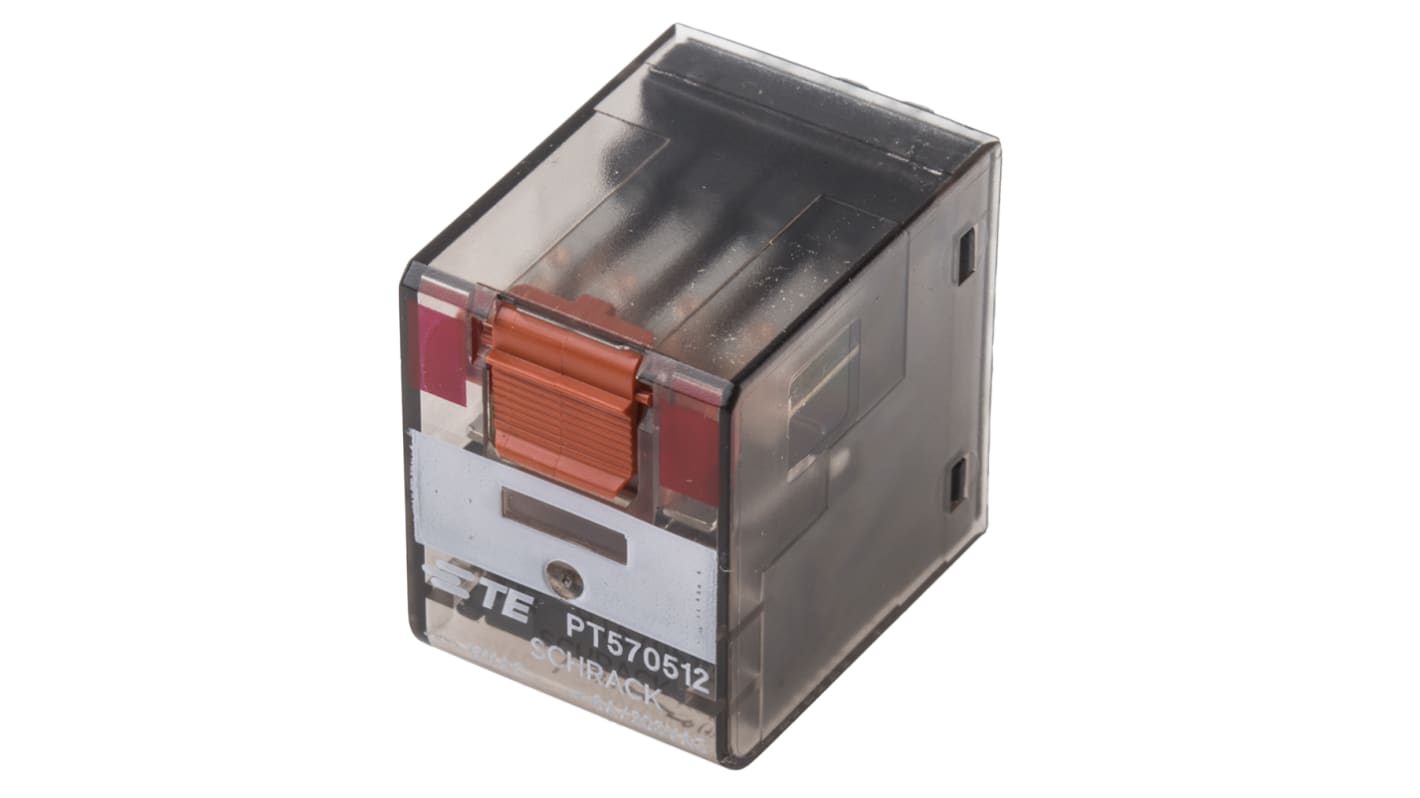

TE Connectivity PCB Power Relay, 12V ac Coil, 6A Switching Current, 4PDT
- RS Stock No.:
- 334-0042
- Mfr. Part No.:
- PT570512 8-1419111-6
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£9.02
(exc. VAT)
£10.82
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £9.02 |
| 5 - 9 | £8.77 |
| 10 + | £8.38 |
*price indicative
- RS Stock No.:
- 334-0042
- Mfr. Part No.:
- PT570512 8-1419111-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V ac | |
| Product Type | Power Relay | |
| Contact Configuration | 4PDT | |
| Mount Type | PCB | |
| Series | PT | |
| Terminal Type | Quick Connect | |
| Switching Current | 6A | |
| Switching AC Voltage | 240V ac | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 1.5kVA | |
| Coil Resistance | 48Ω | |
| Maximum Operating Temperature | 70°C | |
| Height | 35mm | |
| Standards/Approvals | RoHS, UL, VDE, IEC | |
| Width | 22.5mm | |
| Length | 28mm | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V ac | ||
Product Type Power Relay | ||
Contact Configuration 4PDT | ||
Mount Type PCB | ||
Series PT | ||
Terminal Type Quick Connect | ||
Switching Current 6A | ||
Switching AC Voltage 240V ac | ||
Minimum Operating Temperature -40°C | ||
Switching Power 1.5kVA | ||
Coil Resistance 48Ω | ||
Maximum Operating Temperature 70°C | ||
Height 35mm | ||
Standards/Approvals RoHS, UL, VDE, IEC | ||
Width 22.5mm | ||
Length 28mm | ||
Contact Material Silver Nickel Alloy | ||
RoHS Status: Exempt
PT Series With Mechanical Indicator
Cadmium-free contacts
LED and mechanical indicator
Manual/ lockable test facility
Contact material: AgNi or Gold Plated
Mechanical life: AC; 2 x 107, DC; 3 x 107 or DC; 30 x 10⒍
Isolation coil to contact: 2.5kV(ac)
Dimensions: W22.5 x D28 x H29mm
or DC; 30 x 10
