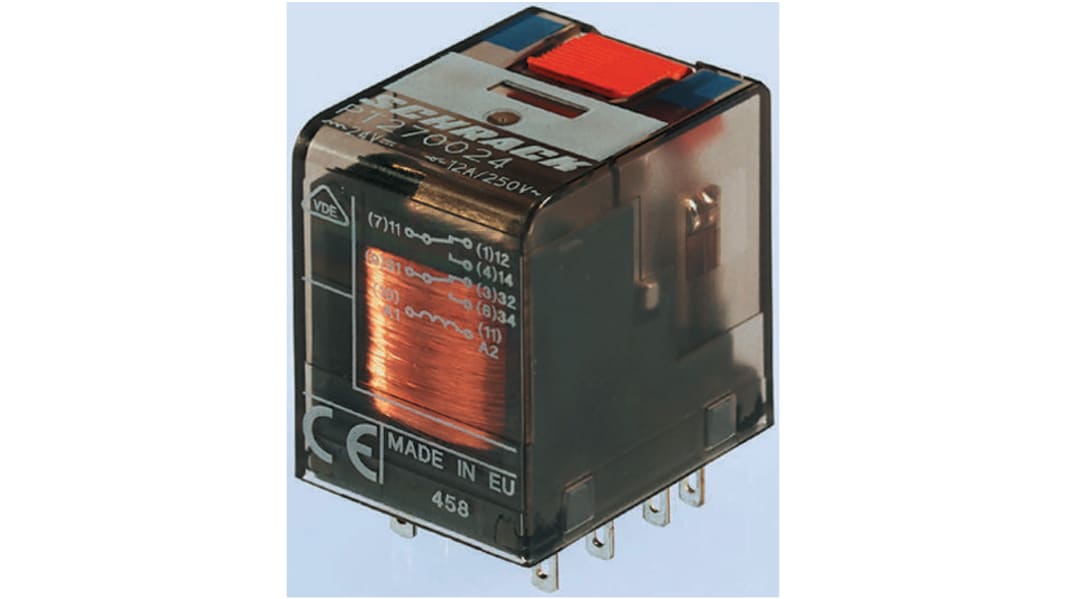

TE Connectivity PCB Mount Power Relay, 48V ac Coil, 6A Switching Current, 4PDT
- RS Stock No.:
- 132-908
- Mfr. Part No.:
- PT570548 8-1419111-8
- Brand:
- TE Connectivity
49 In stock - FREE next working day delivery available
6 available from Europe for delivery within 1 working day(s).
Added
Price Each
£8.20
(exc. VAT)
£9.84
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £8.20 |
| 5 - 9 | £7.99 |
| 10 + | £7.63 |
- RS Stock No.:
- 132-908
- Mfr. Part No.:
- PT570548 8-1419111-8
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
PT Series With Mechanical Indicator
Cadmium-free contacts
LED and mechanical indicator
Manual/ lockable test facility
Contact material: AgNi or Gold Plated
Mechanical life: AC; 2 x 107, DC; 3 x 107 or DC; 30 x 10⒍
Isolation coil to contact: 2.5kV(ac)
Dimensions: W22.5 x D28 x H29mm
LED and mechanical indicator
Manual/ lockable test facility
Contact material: AgNi or Gold Plated
Mechanical life: AC; 2 x 107, DC; 3 x 107 or DC; 30 x 10⒍
Isolation coil to contact: 2.5kV(ac)
Dimensions: W22.5 x D28 x H29mm
or DC; 30 x 10
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 48V ac |
| Contact Configuration | 4PDT |
| Mounting Type | PCB Mount |
| Switching Current | 6A |
| Number of Poles | 4 |
| Latching | No |
| Terminal Type | Quick Connect |
| Length | 28mm |
| Coil Resistance | 777Ω |
| Depth | 22.5mm |
| Contact Material | Silver Nickel Alloy |
| Minimum Operating Temperature | -40°C |
| Series | PT |
| Maximum Operating Temperature | +70°C |
| Height | 35mm |
| Maximum Switching Power AC | 1.5 kVA |
| Application | Compact |
