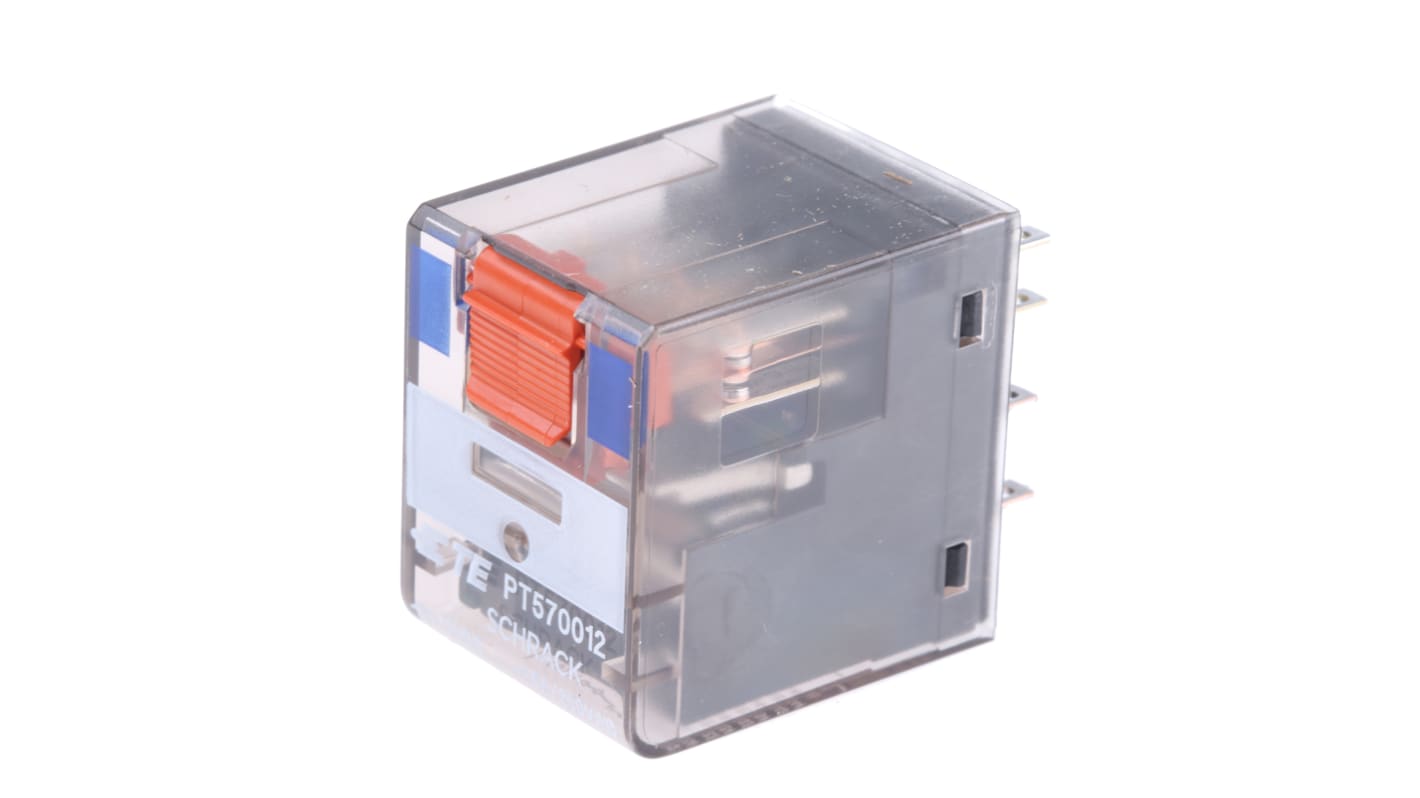

TE Connectivity PCB Mount Power Relay, 12V dc Coil, 6A Switching Current, 4PDT
- RS Stock No.:
- 334-0014
- Mfr. Part No.:
- PT570012 8-1419111-0
- Brand:
- TE Connectivity
Available to back order for despatch when stock is available
Price Each
£8.76
(exc. VAT)
£10.51
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £8.76 |
5 - 9 | £8.44 |
10 + | £8.14 |
- RS Stock No.:
- 334-0014
- Mfr. Part No.:
- PT570012 8-1419111-0
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- AT
Product Details
PT Series With Mechanical Indicator
Cadmium-free contacts
LED and mechanical indicator
Manual/ lockable test facility
Contact material: AgNi or Gold Plated
Mechanical life: AC; 2 x 107, DC; 3 x 107 or DC; 30 x 10⒍
Isolation coil to contact: 2.5kV(ac)
Dimensions: W22.5 x D28 x H29mm
LED and mechanical indicator
Manual/ lockable test facility
Contact material: AgNi or Gold Plated
Mechanical life: AC; 2 x 107, DC; 3 x 107 or DC; 30 x 10⒍
Isolation coil to contact: 2.5kV(ac)
Dimensions: W22.5 x D28 x H29mm
or DC; 30 x 10
![](https://media.rs-online.com/t_line/LD334940-01.gif)
![](https://media.rs-online.com/t_line/LD334940-02.gif)
Specifications
Attribute | Value |
---|---|
Coil Voltage | 12V dc |
Contact Configuration | 4PDT |
Mounting Type | PCB Mount |
Switching Current | 6A |
Number of Poles | 4 |
Latching | No |
Terminal Type | Quick Connect |
Maximum Switching Voltage AC | 240V |
Length | 28mm |
Coil Resistance | 192Ω |
Contact Material | Silver Nickel Alloy |
Height | 35mm |
Depth | 22.5mm |
Series | PT |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -40°C |
Maximum Switching Power AC | 1.5 kVA |
Application | Compact |
